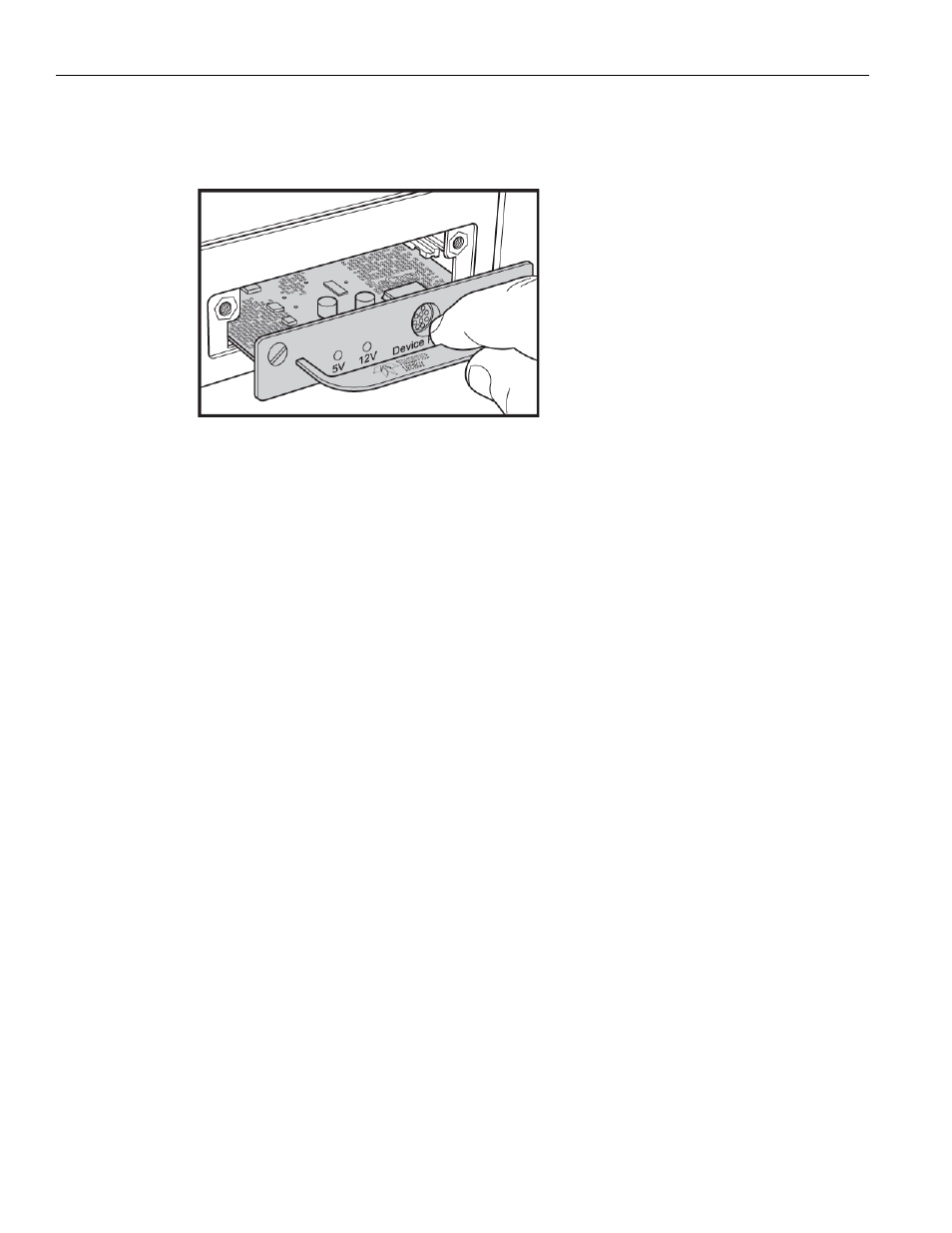

6. Repeat steps 4 and 5 approximately three times, until the card is free from the
retaining screws and you can remove the card from the system.
1.11 Connecting via Ethernet
The Ethernet connection can have any of these configurations:
1. Analyzer connected to a network using a hub or switch, Gigabit Ethernet interface,
or similar device.
2. Analyzer connected to the host machine (machine running the application
software), using a hub or switch, Gigabit Ethernet interface, or similar device.
3. Analyzer connected directly to the host machine using a crossover cable.
1.12 Connecting to a Network
When connected to a network, the analyzer can communicate with the DHCP server to
obtain IP address configuration information in order to establish a connection. Refer to
“Select Device” on page 26 .
1.13 Connecting over Different Subnets
If the host machine (with the Sierra software) and Sierra M6‐4 are on the same subnet,
they will see each other’s broadcasts, and the Sierra M6‐4 application will automatically
appear in the Select Device dialog, from which you can select a device (as described in
the previous section).
If the host machine and Sierra M6‐4 do not reside on the same subnet, they will not see
each other automatically. You must add the Sierra M6‐4 IP address manually. To add the
IP address, use the Add Device button (see
Figure 1.17 on page 28 )
