Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 99
SAS/SATA Software Menus and Toolbars Teledyne LeCroy
FIS (SATA only)
Double‐click Frame Information Structure (FIS) to open the FIS Type selection dialog.

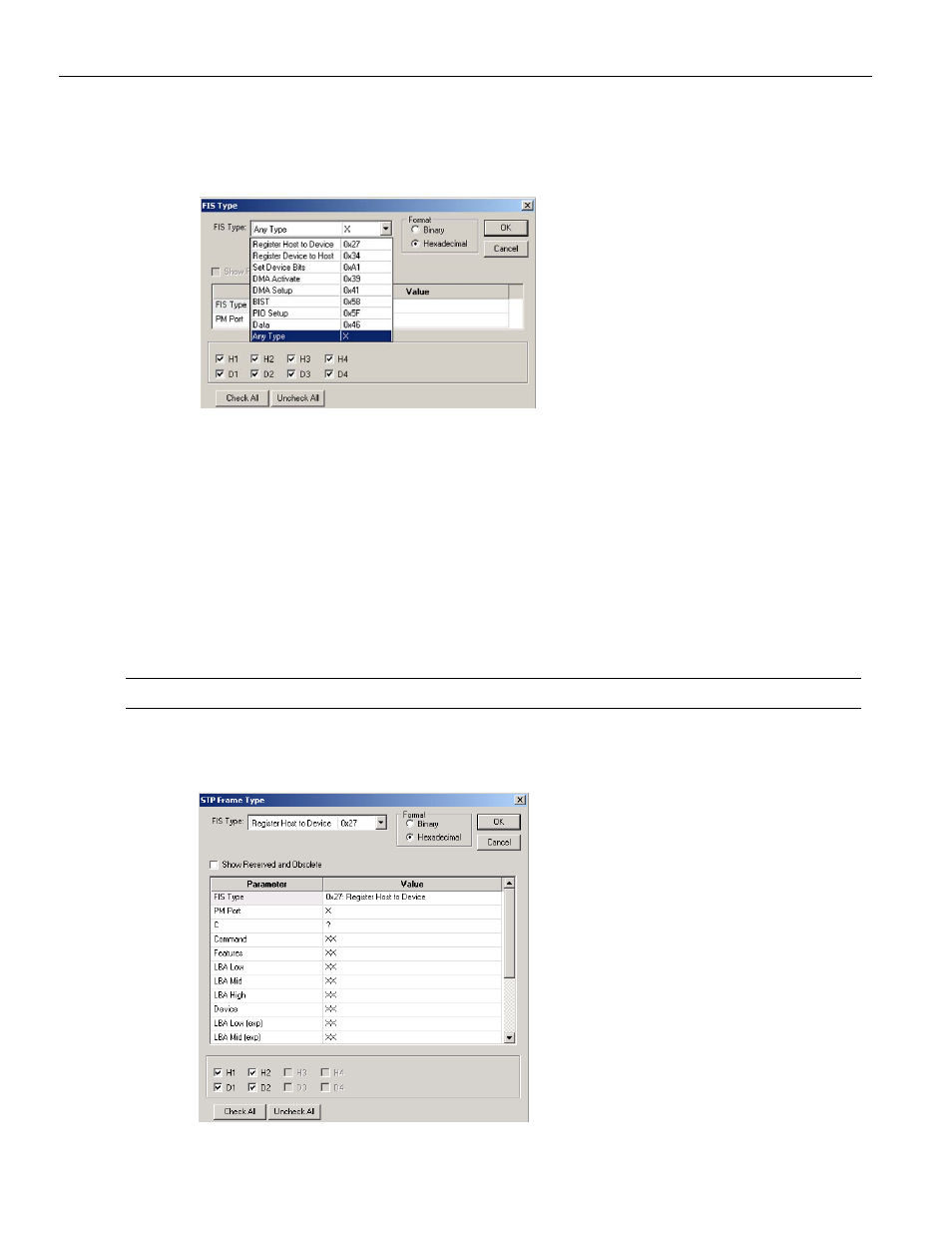

Figure 2.62: SATA: FIS Type Dialog
SAS vs. SATA: Not available in SAS.
Choose a FIS type and click OK. Repeat for additional types.
Available FIS Types
Note: You cannot trigger on a Vendor FIS.
FIS Pattern (SATA only)
Double‐click FIS Pattern to open the FIS Pattern selection dialog.
Figure 2.63: SATA: FIS Pattern Dialog
 Register Host to Device
 Register Device to Host
 Set Device Bit
 DMA Activate
 Any Type
 DMA Setup
 BIST
 PIO Setup
 Data
