Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 195
Target and Device Emulation Teledyne LeCroy

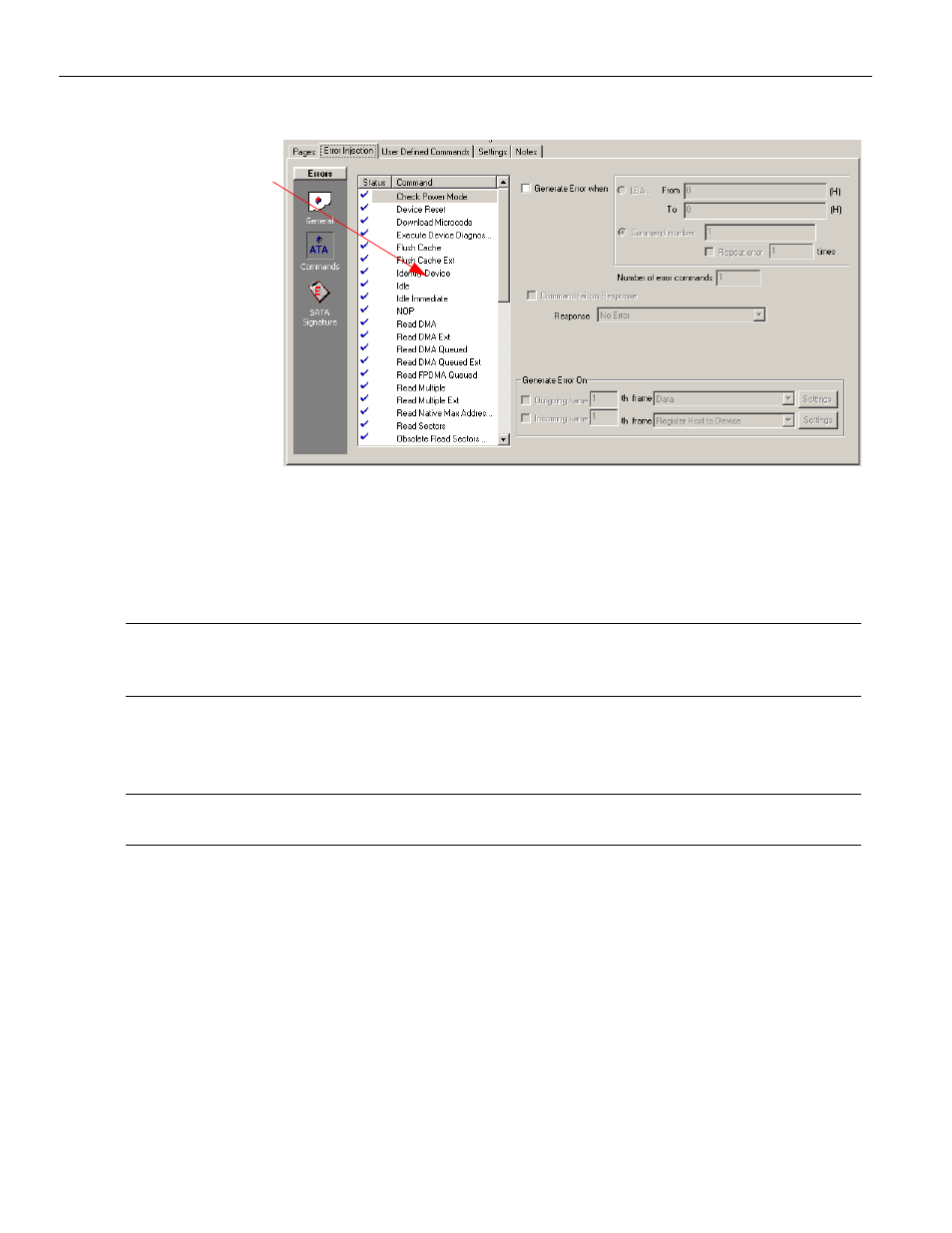

Figure 2.188: SATA: Commands Error Setting Dialog
To set errors for ATA commands:
1. Click a command for which to set an error and then check the Generate Error when
check box and chose LBA or Command number with a value in the corresponding
text box.
Note: Hard‐drive password security commands (as described in ATA8) are Data Set Management,
Write Uncorrectable Ext, Security Disable Password, Security Erase Password, Security Erase
Unit, Security Freeze Lock, Security Set Password and Security Unlock.
2. When you choose Command Number, you can use Repeat error for periodic series
of errors in commands. Set the number of times to repeat the error, by entering a
value in the Number of Error Commands text box.
Note:
Once you check the Generate Error when: check box for a command, a red status indication
appears next to the command selected indicating an error condition.
3. To force the system to send a defined response frame to the host, check the
Command fail on Response check box and then choose a pre‐defined response.
4. Repeat for every command for which to set an error.
2.6.6 Outgoing Frame Settings
Before selecting Outgoing Frame Settings, select the Types Of Frames and the
Frame Number on which to inject an error. Then check Outgoing Frame in the Generate
Error On area and then the enabled Settings button to display the Outgoing Frame
Setting dialog (see
Figure 2.189 on page 194 ).
Status
Indication
