Teledyne LeCroy Sierra M6-4 SAS_SATA Protocol Analyzer User Manual User Manual
Page 162
Teledyne LeCroy
Emulation
160
Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
OOB Signal Setting Tab
Click the OOB Signal Setting tab in the Advanced initiator Setting dialog to specify OOB
parameters in the enabled editable fields:

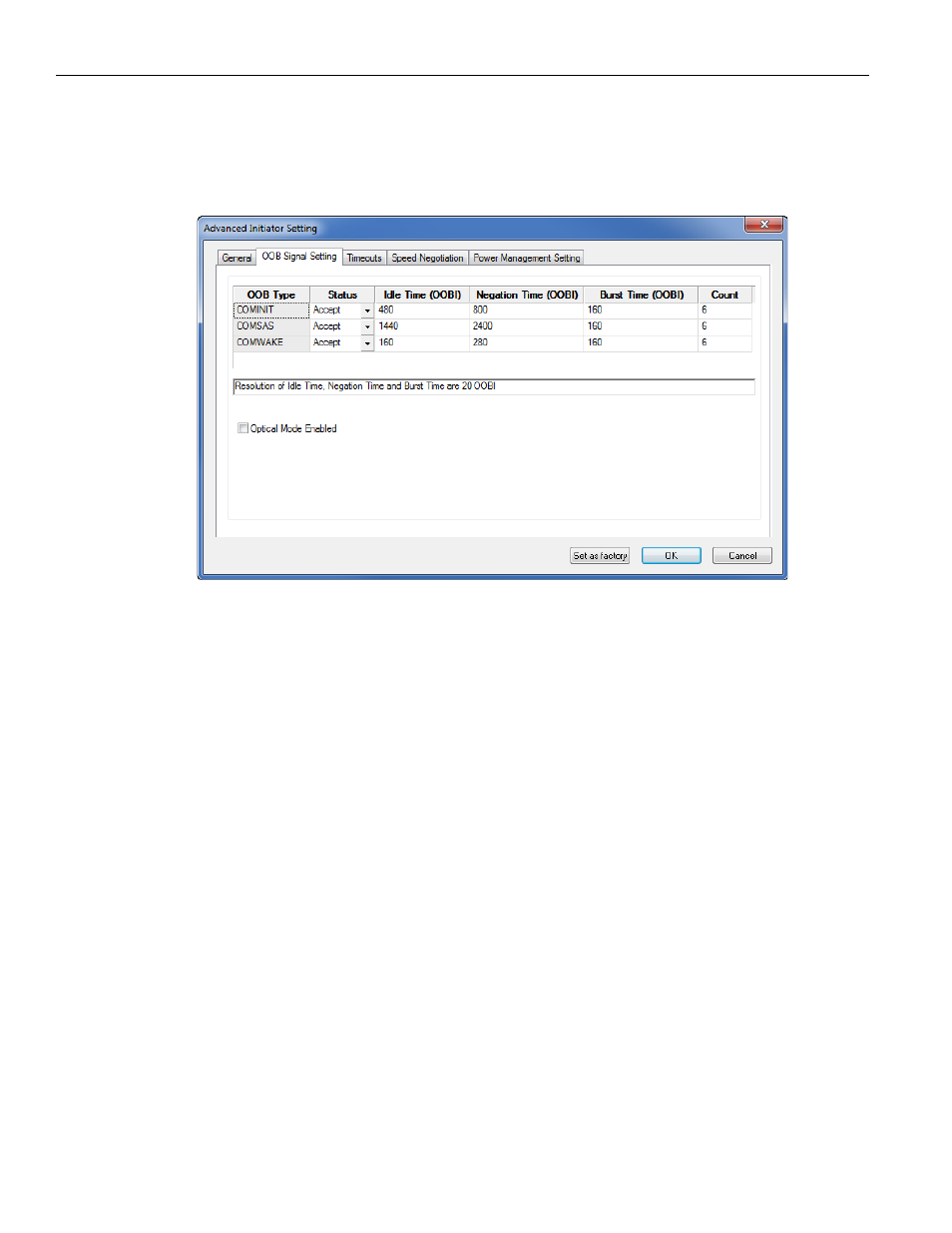

Figure 2.149: OOB Signal Setting Tab
Timeouts Tab
Click the Timeouts tab in the Advanced Host Setting dialog to specify timeouts for
connection, CREDIT, ACK/NAK, ATA Command, OOB Signal and Identify frame. You can
also edit the speed negotiation parameters.
