146 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

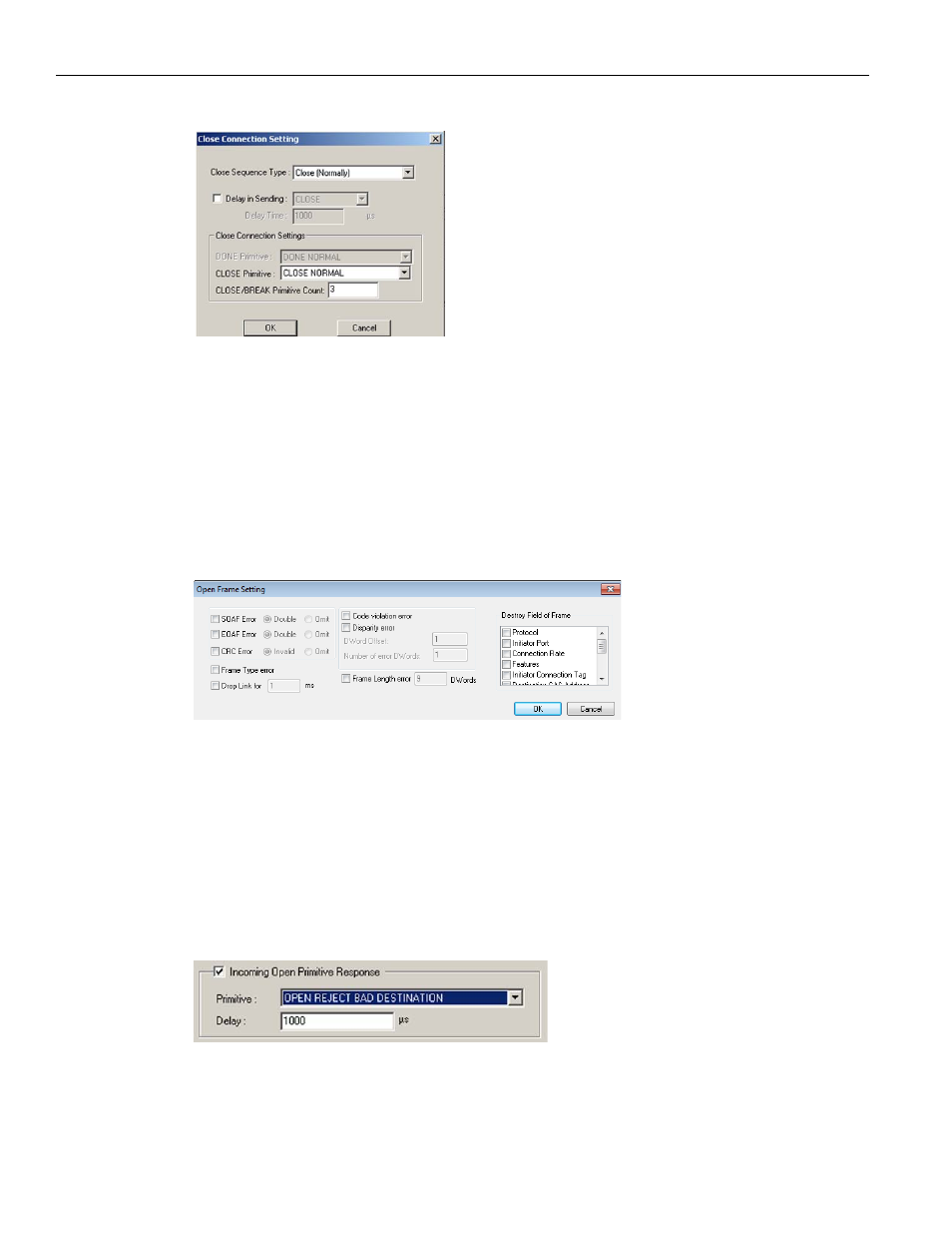

Figure 2.131: Close Connection Dialog
Select the Close Sequence Type from the drop‐down list. Selecting Delay in sending
allows you to specify the delay in sending Done, Close, or Break.
Select the Close Connection Settings from the drop‐down lists.
Outgoing Open Error
Check Outgoing Open Error and then the enabled Error Settings button to display the
Open Frame Setting dialog.
Figure 2.132: Open Frame Setting Dialog
Check errors to introduce.
Scroll through the available choices in the Destroy Field of Frame list box and check the
field to destroy.
Incoming Open Primitive Response
Check this box, then click the down arrow next to the Primitive list box and choose a
response type. Enter a Delay value.
Figure 2.133: Incoming Open Primitive Response Dialog
