224 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

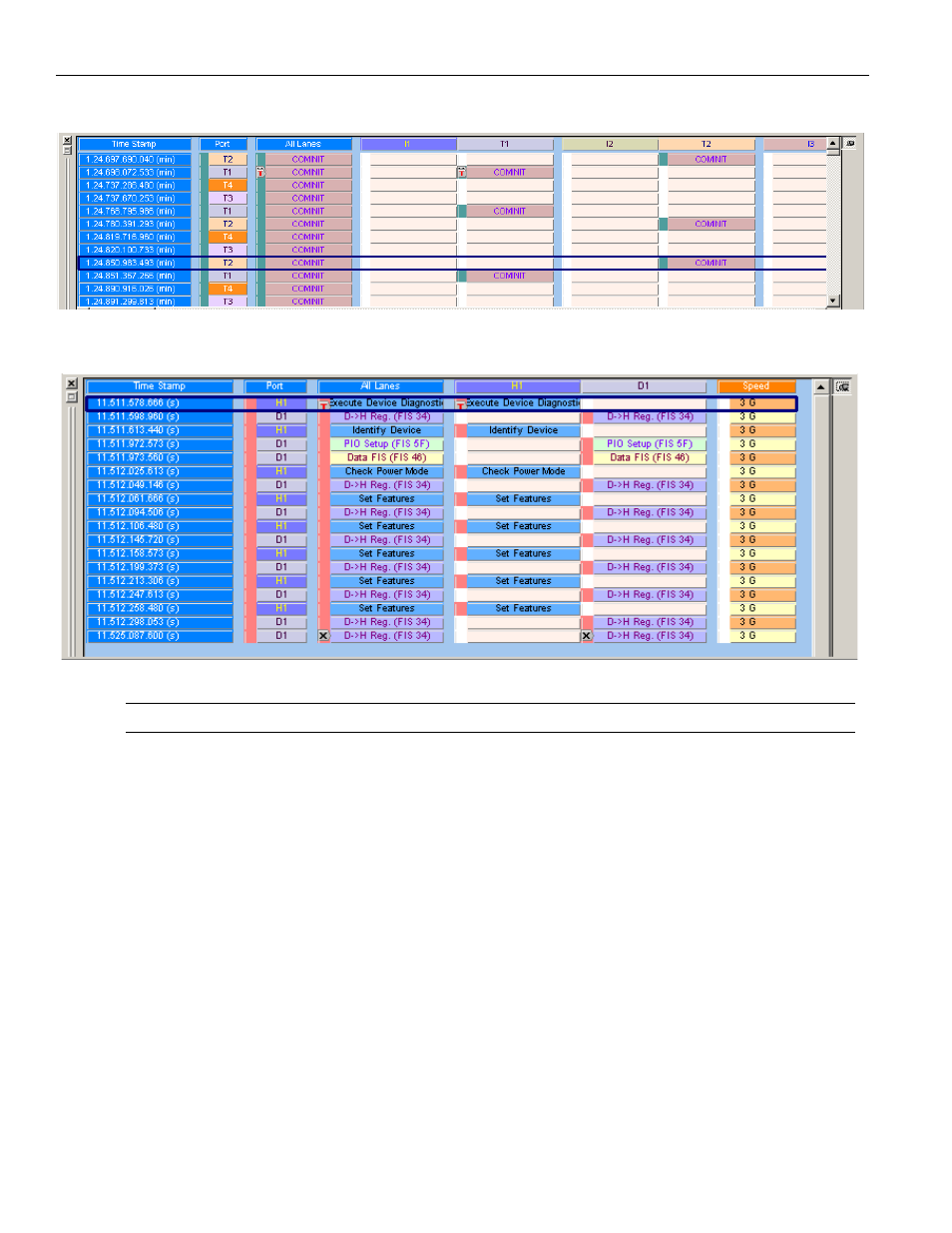

Figure 3.17: SAS: Text View
.
Figure 3.18: SATA: Text View
Note: The LBA and Tag Number value are shown in the All Lanes column.
3.3.8 Frame Inspector View
Frame Inspector View has lots of information that is available in Packet View, but not
Spreadsheet View, so it is most useful in conjunction with the Spreadsheet View.
This view has the following three tabs:
Spec View:
This view shows the Frame as it would appear in the spec, with the field names and
values spelled out clearly. Fields that are too short to clearly contain the description can
be viewed as tooltips by hovering the mouse over them. Some fields might have a a
lowercase ‘e’ button at the top right corner. Pressing this button displays an ‘expanded’
view of the sub‐fields in this field.
Field View:
This view shows, when applicable, a hierarchical display of the selected Packet, with the
relevant fields in each level.
