Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 163
Emulation Teledyne LeCroy
Power Management Settings
Click the Power Management Setting tab in the Advanced Initiator Setting dialog to
specify the settings in the editable fields
.

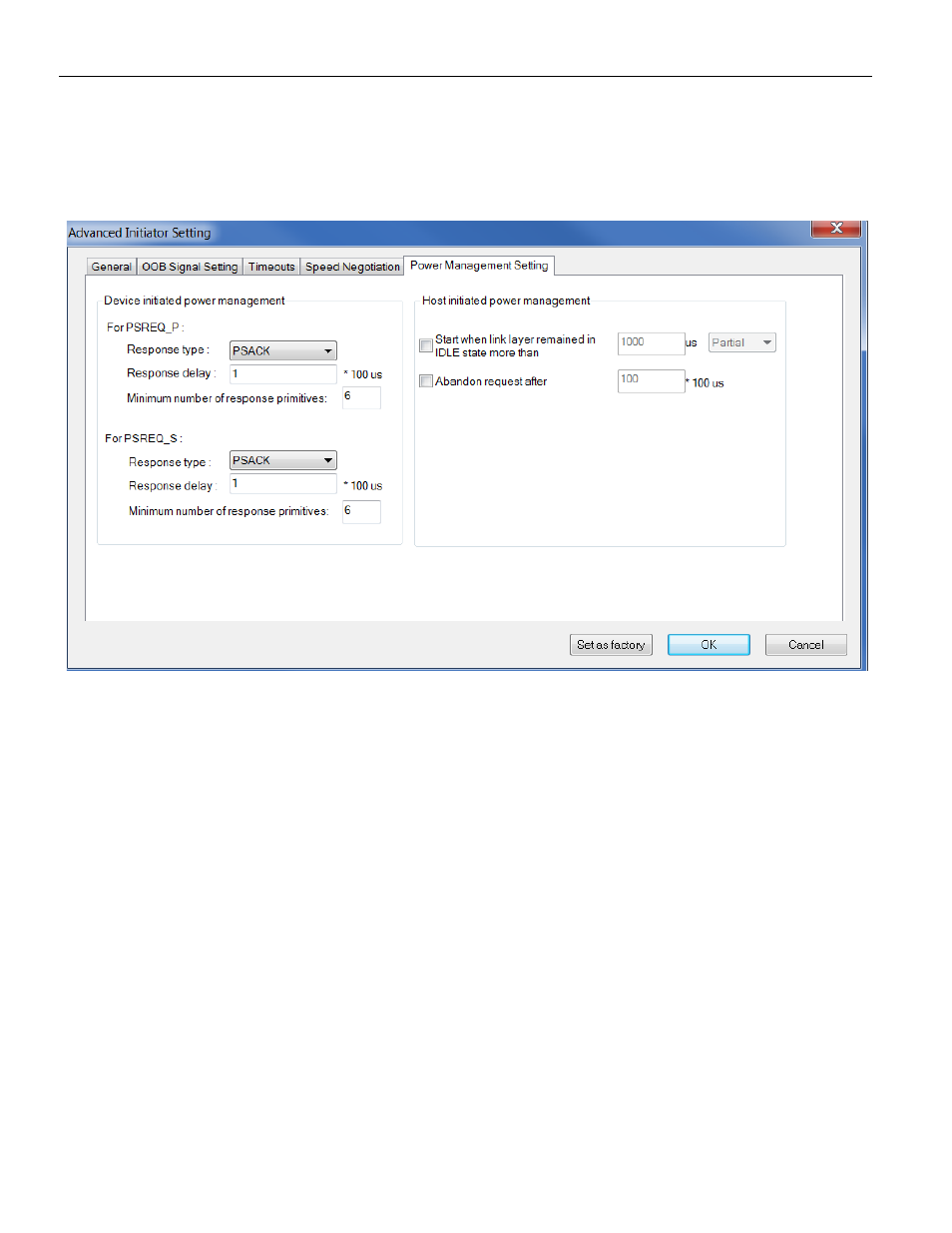

Figure 2.152: SAS: Power Management Settings
Set parameters for Host and/or Device initiated power management.
2.4.9 Host Setting Tab (SATA)
The Host Emulator Setting dialog allows you to select the Port(s) for exercising, choose to
use the Host Emulator or Pattern generator and specify Host Emulator characteristics.
Click the Host Setting tab (see Figure 2.153 on page 162 ):
