Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 317
User‐Defined Decoding Teledyne LeCroy
3.22 User-Defined Decoding
User‐defined decoding allows you to create a definition file to interpret commands and
frames that are not in the standard set recognized by the software.
Select Setup > User Defined Decoding to open the User Defined Decoding dialog.

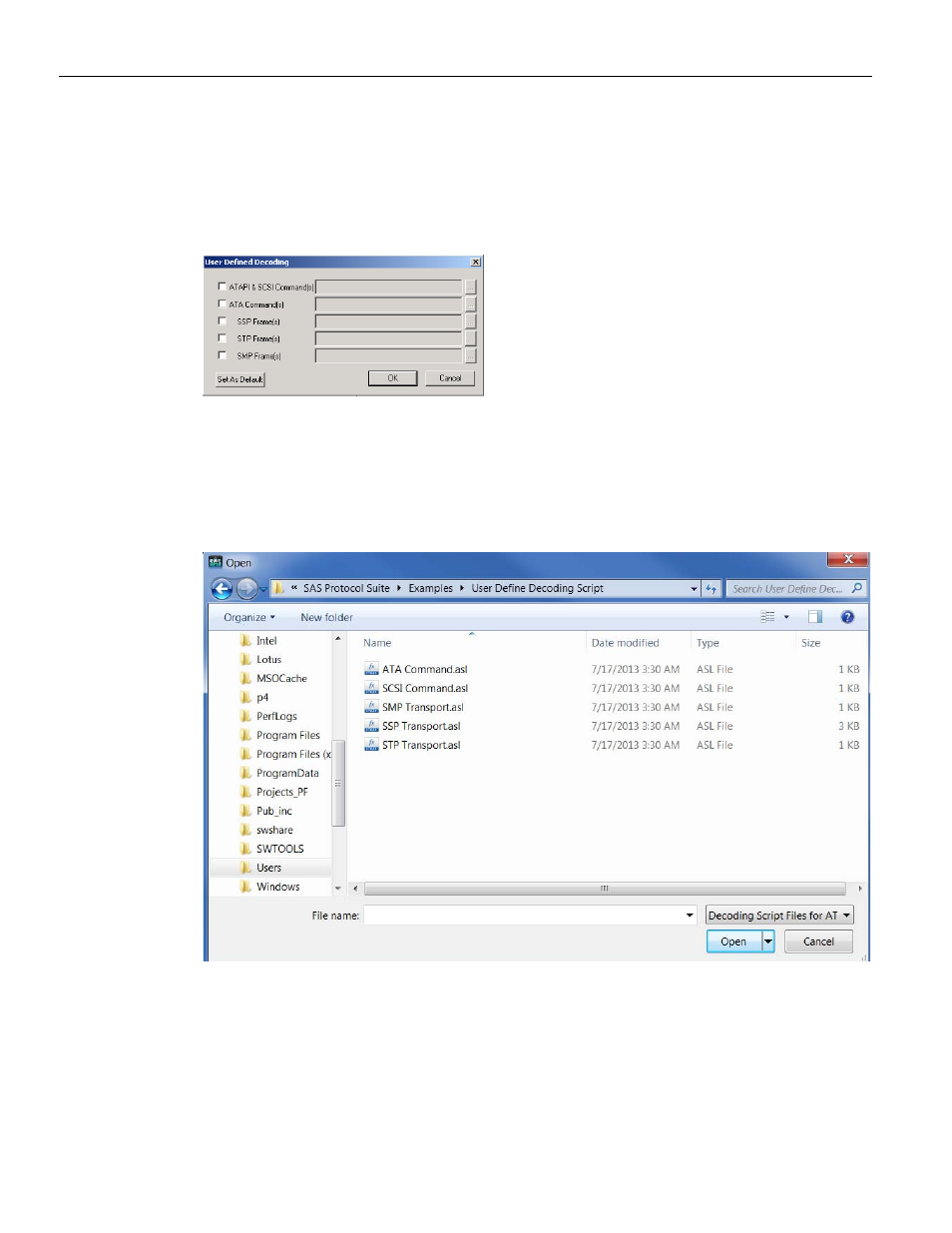

Figure 3.141: SAS: User Defined Decoding
SAS vs. SATA: SAS adds SCSI Commands, SSP Frames, and SMP Frames.
Check ATA Commands and/or STP frames. Click the ellipses next to a command type text
box to display the Open dialog. Choose an appropriate script file and click Open.
Figure 3.142: Choosing a Script File
3.23 Help Menu
3.23.1 Tell Teledyne LeCroy
Report a problem to Teledyne LeCroy Support via e‐mail. This requires that an e‐mail
client be installed and configured on the host machine.
