Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 167
Emulation Teledyne LeCroy
OOB Signal Setting Tab
Click the OOB Signal Setting tab in the Advanced Host Setting dialog to specify
OOB parameters in the enabled editable fields (see
Figure 2.157 on page 165 ).

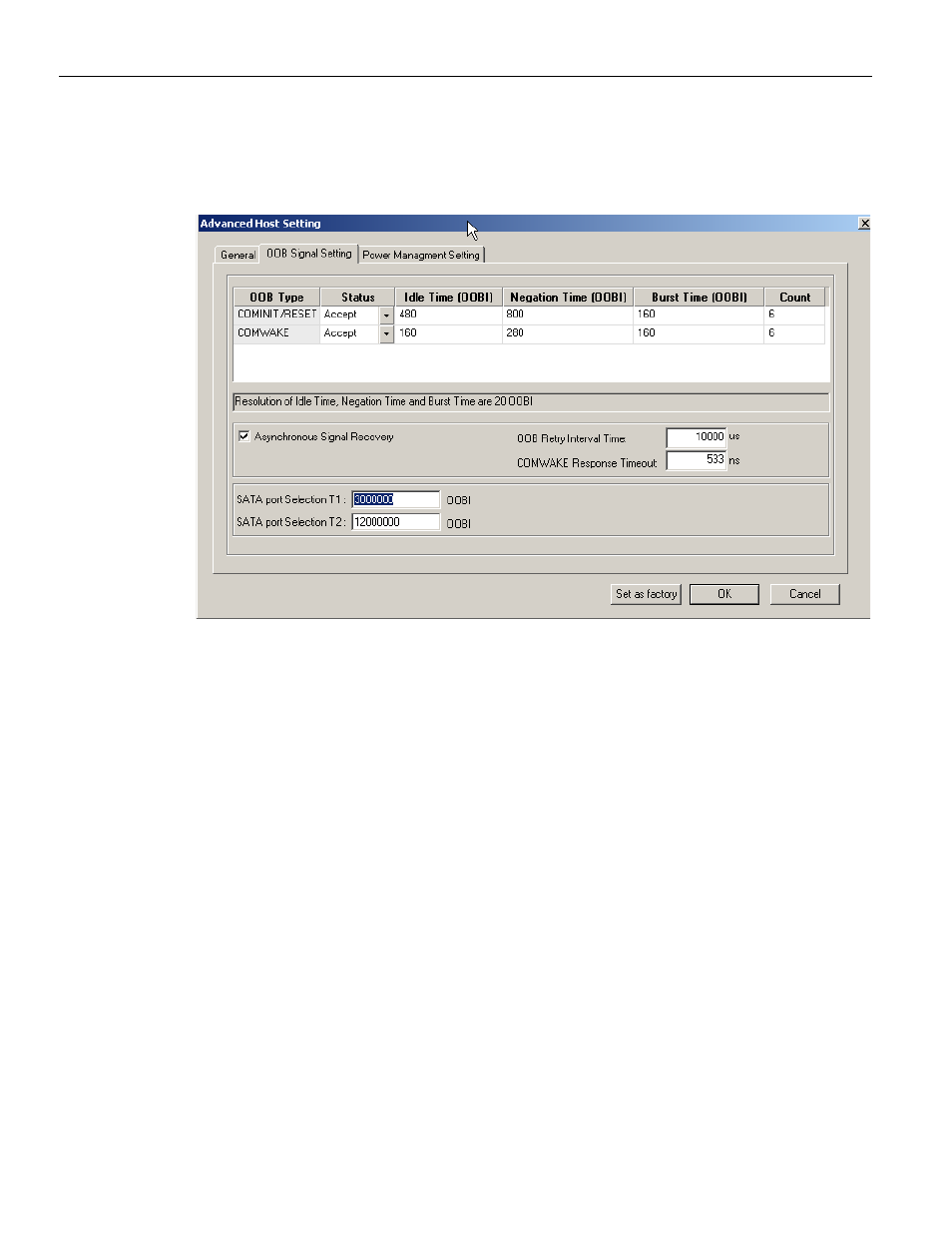

Figure 2.157: SATA: OOB Signal Setting Tab
The Device Sleep function in the Host Emulator script has an option to select COMRESET
or COMWAKE commands (see
Figure 2.158 on page 166 ).
