Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 287
Packet View Toolbar Teledyne LeCroy
3.9.1 CATC Navigation View
To change the trace display to a CATC Trace™ (see Figure 3.103 on page 287 ), click the
CATC Navigation button. You can change the colors, fonts, and so on, in the Trace
Viewer Configuration (see “Trace Viewer Configuration” on page 297 ).

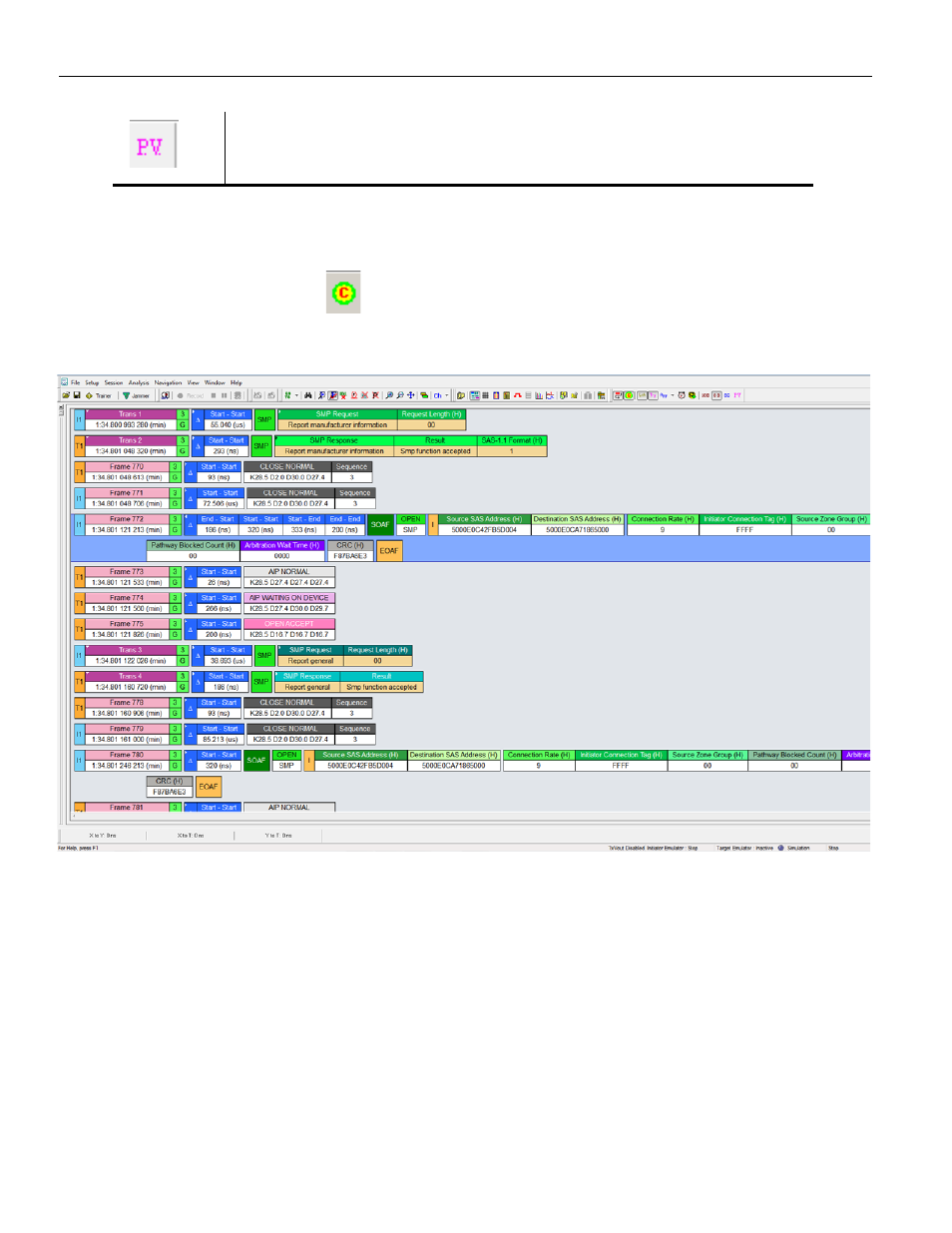

Figure 3.103: CATC Navigation View
3.9.2 Spec View
Spec View shows packet header information.
To obtain the Spec View from the CATC View, left‐click to display a popup menu, then
select the View Fields option (see
Figure 3.104 on page 288 ).
To obtain the Spec View from the Catalyst View, right‐click to display a popup menu, then
select the View Fields option.
The PV button shows/hides the primitive value.
