Teledyne LeCroy Sierra M6-4 SAS_SATA Protocol Analyzer User Manual User Manual
Page 347
Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
343
Port Configuration for InFusion
Teledyne LeCroy

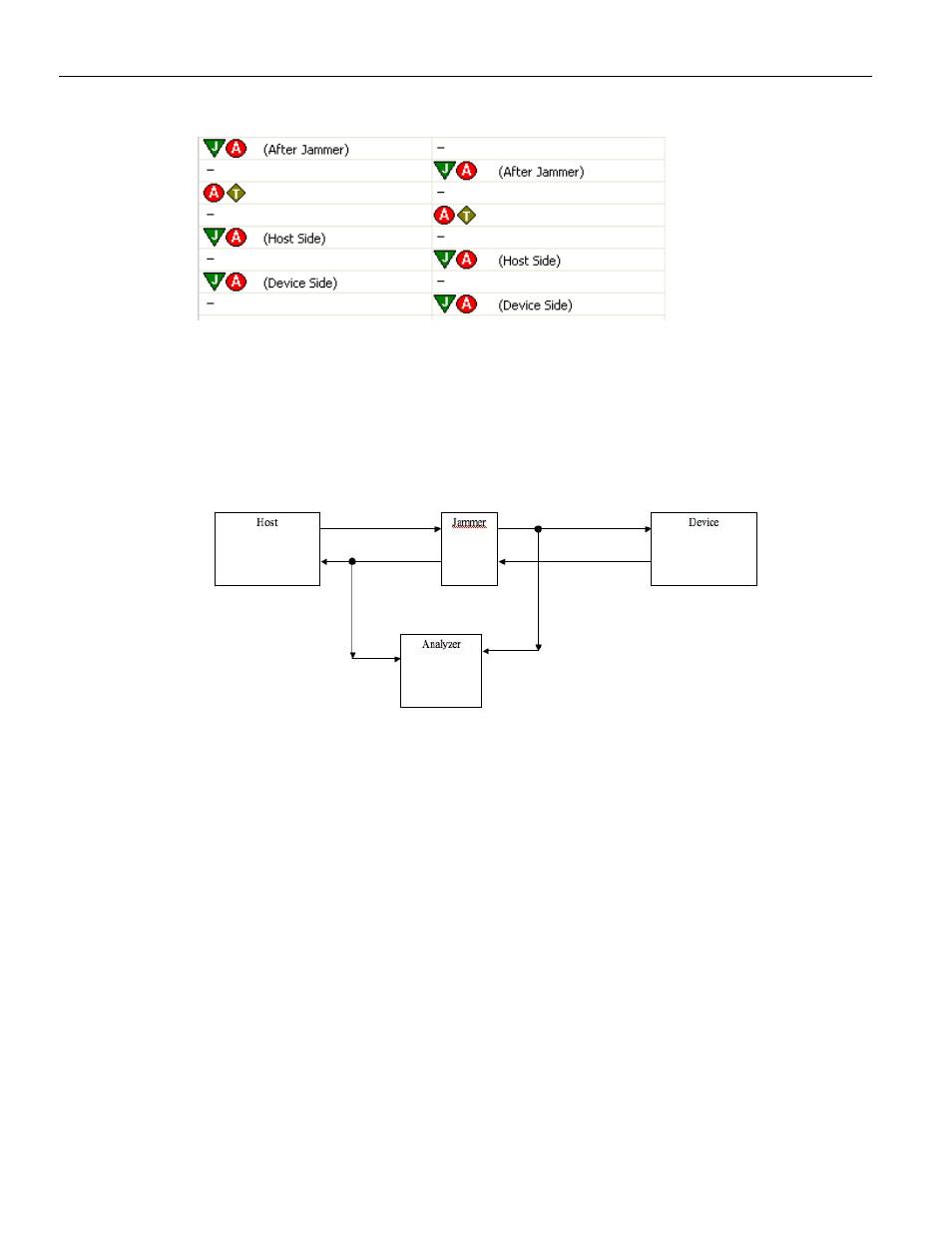

Figure 4.8: Select Port Configuration Options with Jammer and Analyzer
The following figures illustrate the available setup options.
JA (After Jammer): Analyzer captures Jammer to Host and Jammer to Device.
Analyzer is after Jammer on both paths. See
Figure 4.9
.
Figure 4.9: Jammer and Analyzer with Analyzer after Jammer
