Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 207
Target and Device Emulation Teledyne LeCroy

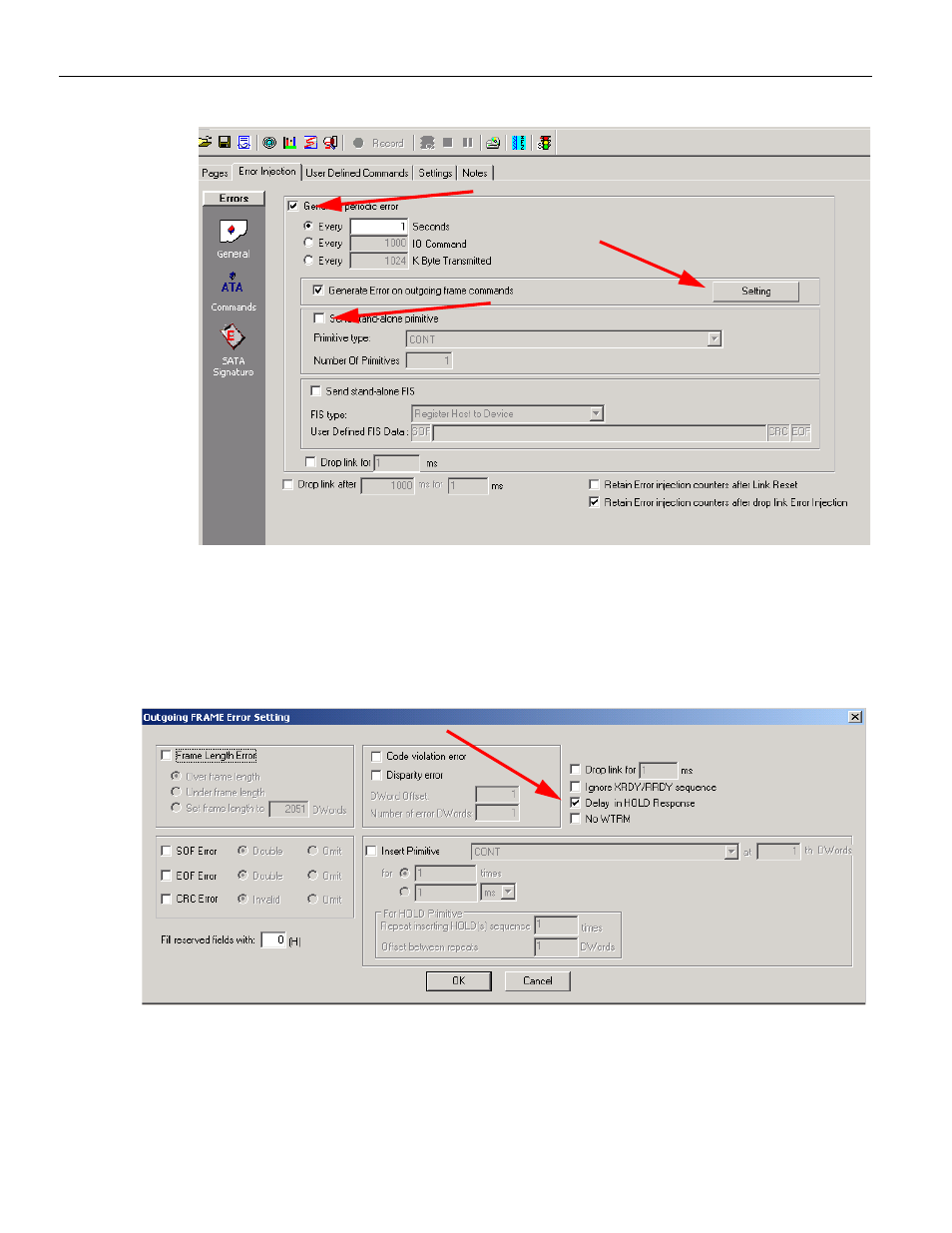

Figure 2.200: SATA: Error Injection Tab
3. Click the Generate periodic error check box.
4. Click the Generate Error on outgoing frame commands check box.
5. Click the Settings button.
The Outgoing FRAME Error Setting dialog displays.
Figure 2.201: SATA: Outgoing FRAME Error Setting Tab
6. Click the Delay in HOLD Response check box.
7. Click OK.
