Teledyne LeCroy Emulation
156 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
2.4.8 Initiator Setting Tab (SAS only)
The Initiator Setting tab allows you to select the Port(s) for generating SAS traffic and to
specify SAS Address, Data Frame Payload size, Frame Receive Timeout, Logical Block size,
and ATA Command Execution Time out (see
Figure 2.145 on page 155 ).
You can run a Pattern Generator. To run the Pattern generator, check the Run Pattern
Generator option button and select a Pattern Generator File. You can create Pattern
Generator Files, see
“Creating a Pattern Generator File” on page 477.

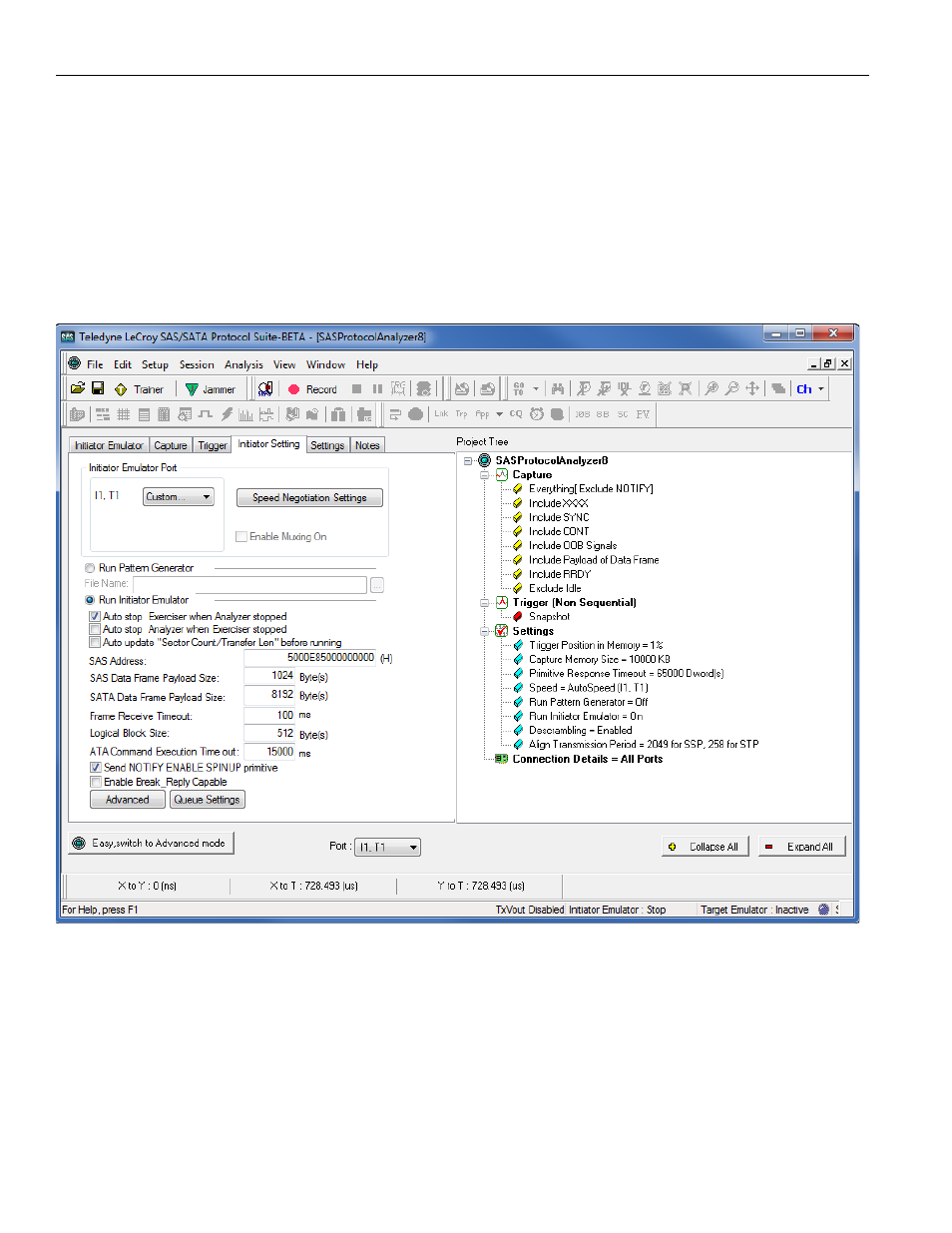

Figure 2.145: SAS: Initiator Setting Tab
