3.8.3 Filter Setup
To display the Filter setup dialog, click the Filter button on the Viewer toolbar or
select View > Filtering.

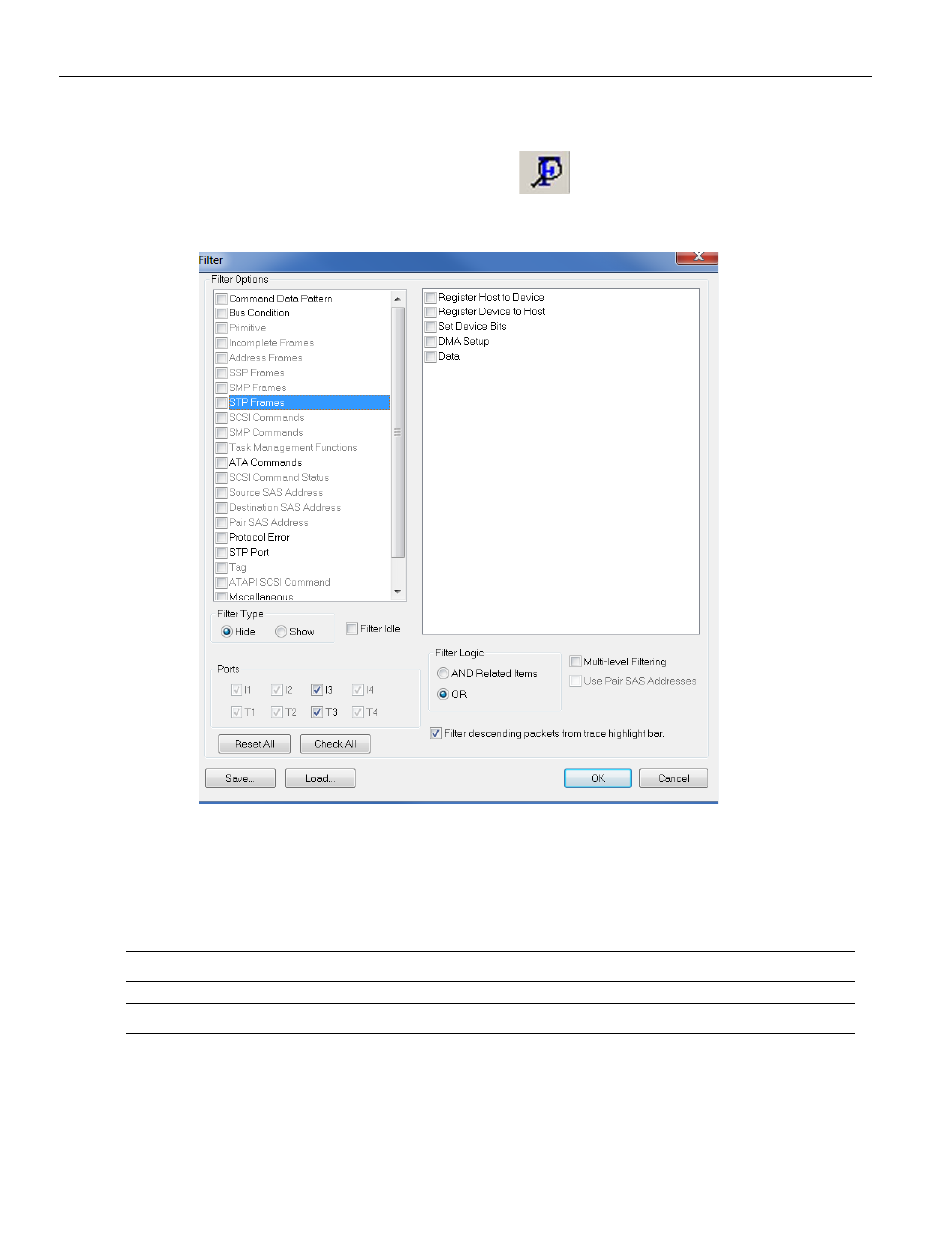

Figure 3.87: SAS/SATA: Filter Setup Dialog
You can select or deselect each of the items shown in the Filter Options window for
filtering, by checking or unchecking a corresponding check box. Items not in the current
sample are in shade. See
“Selectable Filter Options for SAS” on page 272 and “Selectable
Filter Options for SATA” on page 277 .
Note: If you select a group, that also selects all child items.
Note: Only packets captured at run time are available for selection for filtering.
Filter Type
You can choose to show or hide the Filter Type items by checking the Show or Hide
option button.
