Teledyne LeCroy Target and Device Emulation
196 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

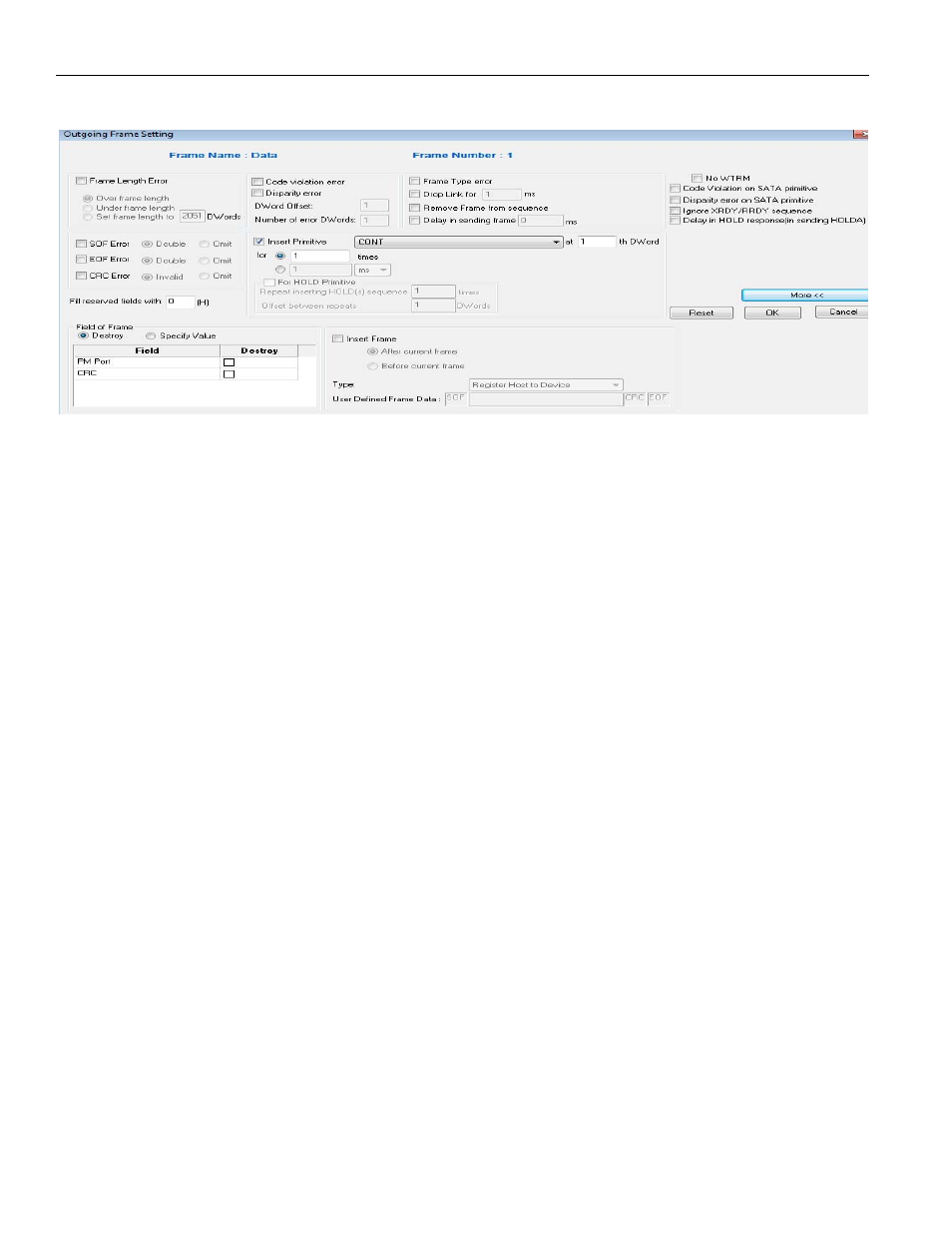

Figure 2.189: Outgoing Frame Setting Dialog
Frame Type Error
Check this to introduce a frame type error.
Drop Link for
Check this to drop link for specified duration.
Remove Frame from sequence
Check this to remove frame from sequence.
Delay in sending frame
Check this to delay sending frame and enter a value for the delay.
Additionally check:
 No WTRM
 Code Violation on SATA primitive
 Disparity error on SATA primitive
 Ignore XRDY/RRDY sequence
 Delay in HOLD response (in sending HOLDA)
Frame Length Error
Check Frame Length Error, choose the type of error to introduce and click OK.
Code violation and Disparity error
Check these and specify DWORD offset and the number of error DWORDs.
SOF, EOF and CRC errors
Check these and specify Double or Omit by checking the corresponding option button.
Insert Primitive
Check Insert Primitive to enable the Primitive Type dialog, select the primitive type and
number of primitives, and click OK.
