Teledyne LeCroy Analysis
228 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
If you have already captured a trace file and want to create a read/write statistical report
for the sample, perform the following steps:
1. Enable the read/write settings as mentioned above.
2. Open the trace file.
3. Set the X pointer on the first packet in the viewer.
4. Set the Y pointer on last packet in the viewer.
5. Save as the trace file using the X to Y option.
Now the saved trace file will contain the read/write statistical report.
Report Between Cursors
Click the option button next to the From cursor selection drop down list. Then click the
From down arrow and choose the 1st cursor, click the To down arrow to choose the 2nd
cursor, and click OK. The resulting report has only the capture between the cursors.

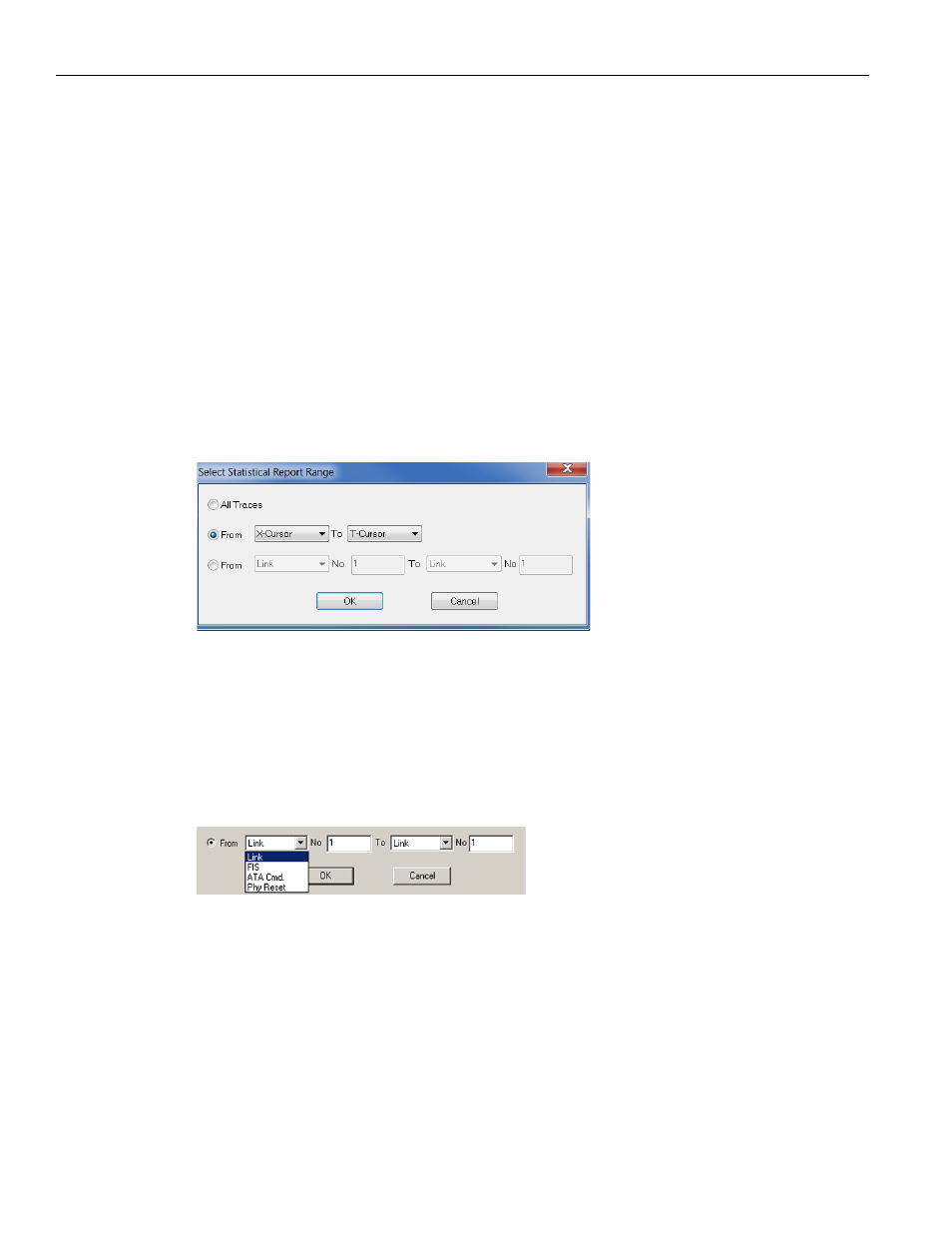

Figure 3.26: Report between Cursors
Report Between Events
Click the option button next to the From the event selection dropdown list, click the
From down arrow to choose the 1st event, then enter the number of its occurrence. Next
click the To down arrow to choose the 2nd event, then enter the number of its
occurrence.
Figure 3.27: SATA: Report between Events
Click OK. The resulting report are limited to the capture between the defined events.
SAS vs. SATA: SAS adds Transport, SCSI Cmd, SMP Cmd, and Task Mng to the drop‐down
list and deletes FIS and Phy Reset.
Statistical Report Content
SAS: A complete SAS statistical report consists of the following reports, accessed by
clicking the corresponding tab in the dialog:
 General
 Bus Condition
