Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 149
Emulation Teledyne LeCroy
Note: In addition to the pre‐defined frame types, you can scroll down the list to User Defined and
enter your own frame data between SOF and EOF.
2.4.7 Incoming ATA Frame Settings
Before selecting Incoming Frame Settings, select the Types Of Frames and the
Frame Number on which to inject an error. Then check Incoming Frame in the Generate
Error On area and then the enabled Settings button to display the Incoming Frame
Settings dialog.

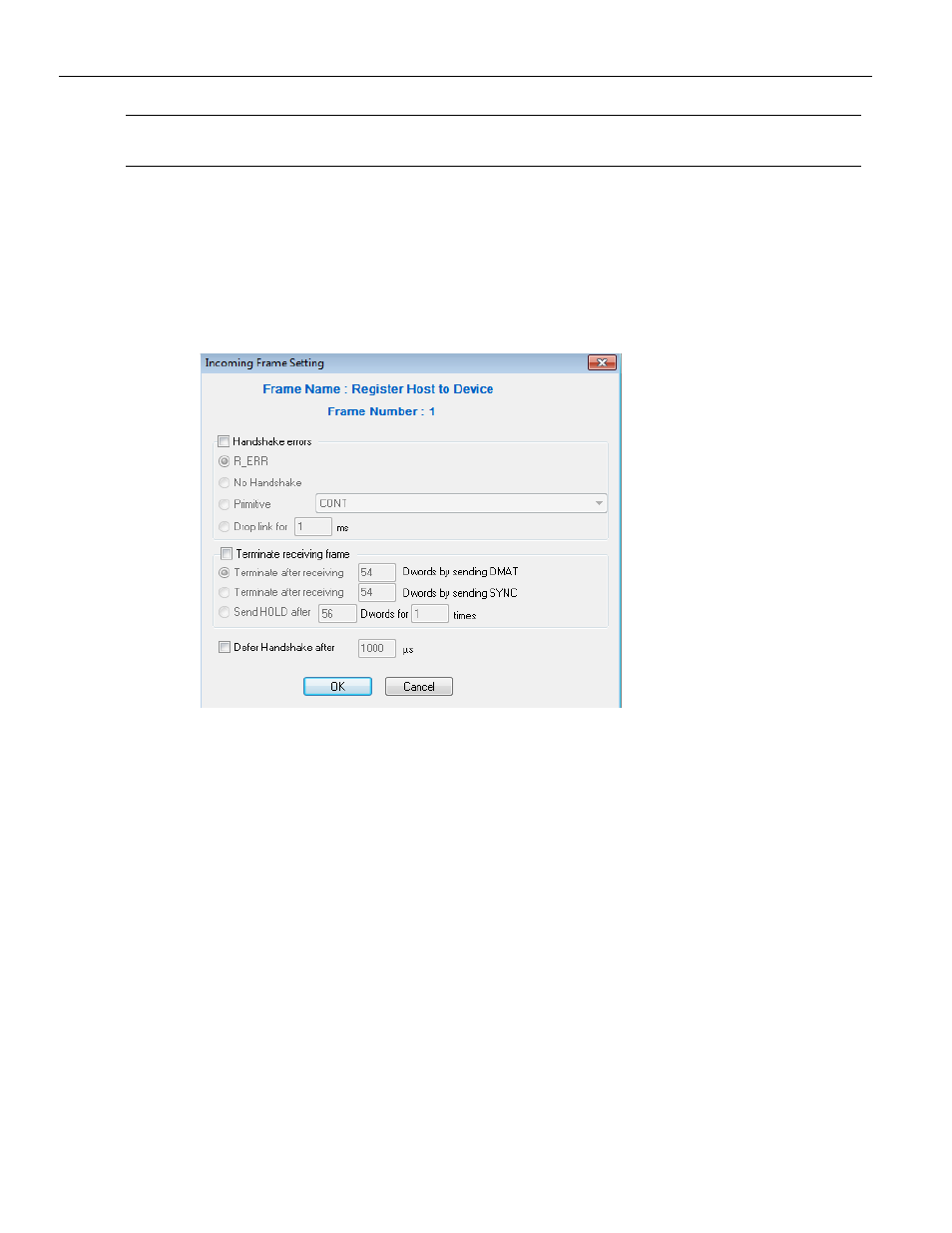

Figure 2.136: Incoming Frame Setting Dialog ATA
Handshake Error
Check Handshake Errors to enable selection of errors and primitives. Check R_ERR or
select Primitive to send as an incoming frame response. Check No Handshake to send no
response.
Terminate Receiving Frame
Check Terminate Receiving Frame, then choose the termination type.
Defer Handshake
Check the Defer Handshake after check box and enter a value for the time to defer the
handshake.
