Teledyne LeCroy

SAS/SATA Software Menus and Toolbars

80





Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

Vendor

Vendor is for FIS Pattern.

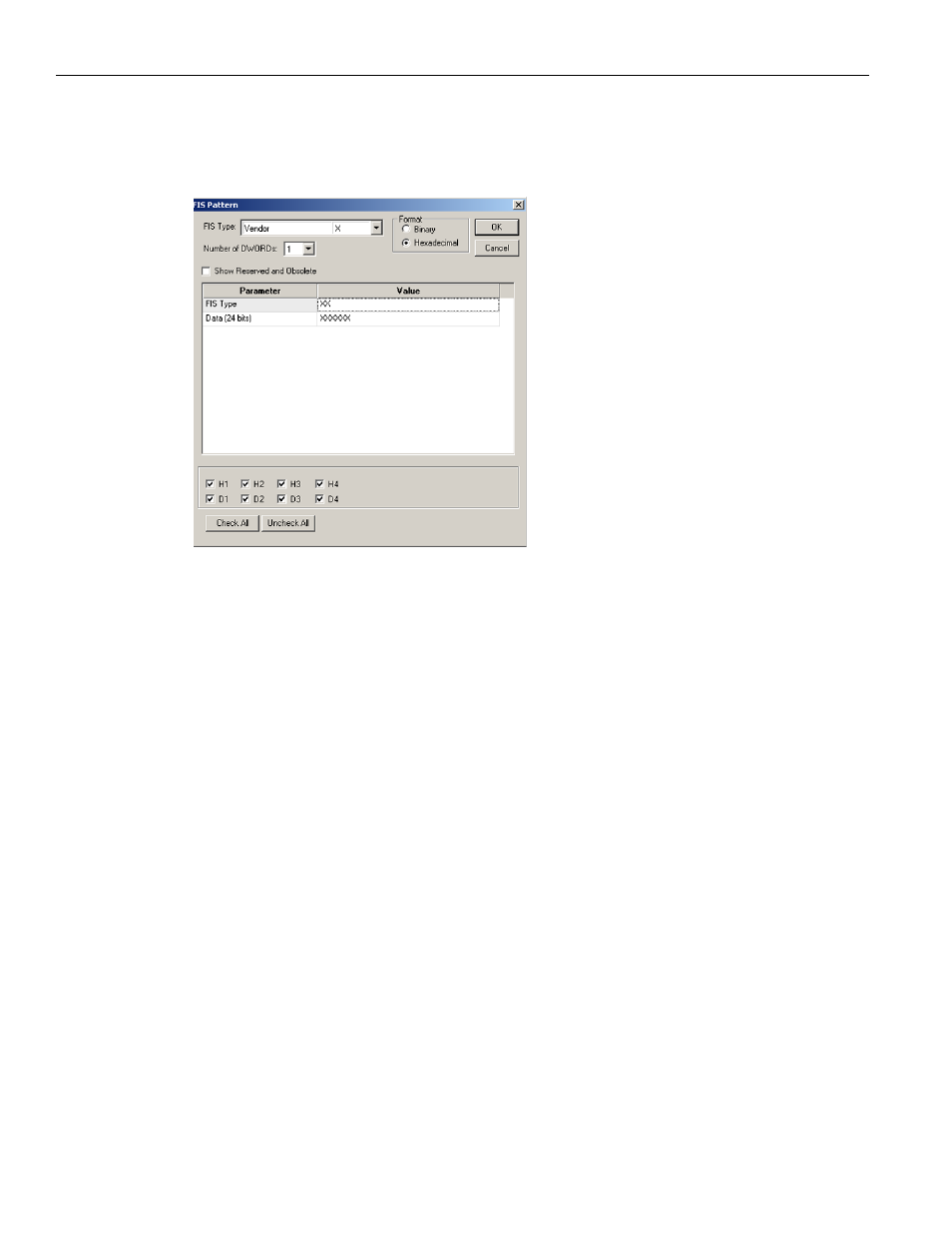

Figure 2.36: FIS Pattern - Vendor Dialog

2.2.30

Trigger Setup

The Trigger tab in the analysis project dialog allows you to specify when the analyzer
completes a data capture. Three trigger modes are available:

Don’t care (Snapshot) is the default

Manual Trig

Pattern

When data capture starts with Don’t care (Snapshot) selected, the analyzer triggers on
the first data pattern on the bus.

Starting a data capture with Pattern selected triggers when specific pattern(s) are
detected in the captured data stream. The following three methods can trigger the
analyzer with Pattern selected.

Trigger on any pattern (Any Trigger Mode)

External Trigger

Trigger on a sequence of patterns (Sequential Trigger Mode)
