282 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Note: When searching for Protocol Errors in Column View, you cannot search for a specific Protocol
Error type. Search returns any protocol error.
Search Sub Items
When searching SCSI Command Status, you can refine the search by selecting from a list
of Sub Items.
Note: Some of the search categories allow you to refine the search by specifying specific SAS addresses
and STP ports to search.
.

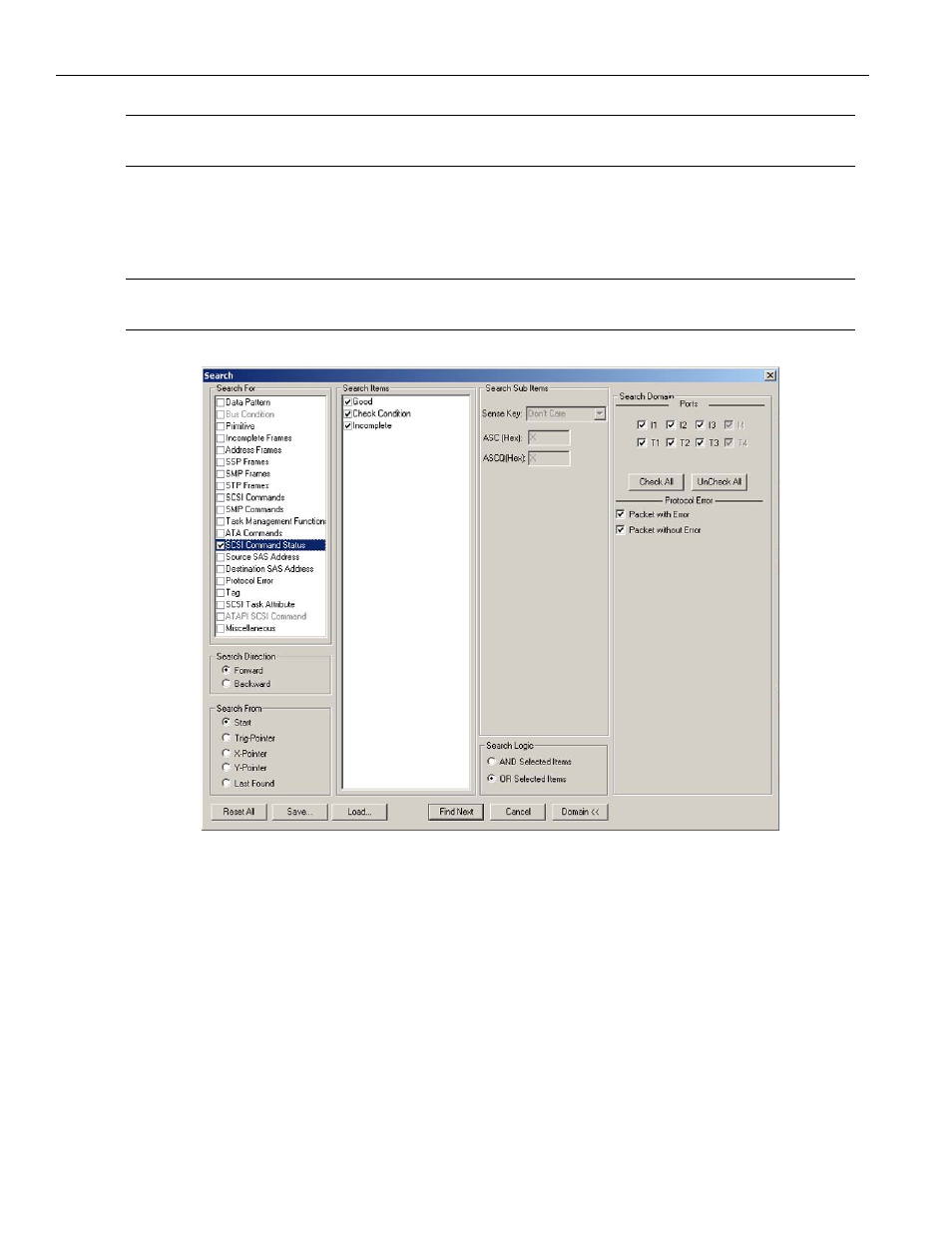

Figure 3.98: Search Sub Items
When you check the SCSI Command Status, the Check Condition item appears in the
Search Items Window, if a check condition has occurred. Clicking this enables Search Sub
Items, allowing you to refine the search by specifying Sense Key, ASC, and ASCQ.
