Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 83
SAS/SATA Software Menus and Toolbars Teledyne LeCroy

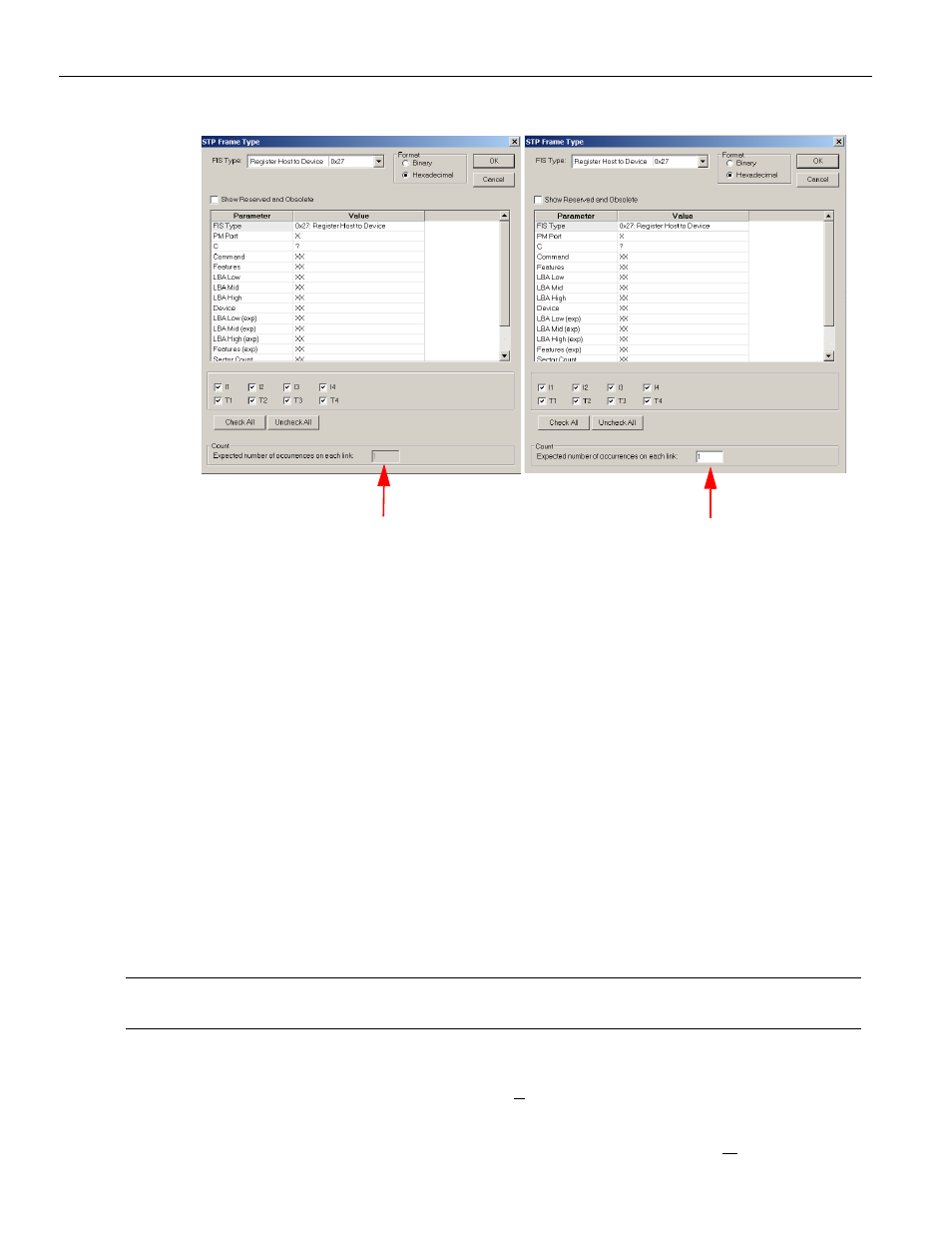

Figure 2.39: Count Field Dialog
The SATA Parameters window displays the following trigger pattern categories:
 Timer
 Timeout
 External/Manual Trigger
 Device Sleep
 Bus Condition
 Symbol
 Primitive
 FIS
 FIS Pattern
 STP Frame
 ATA Command
 ATA Command Pattern
 ATAPI
 Soft Reset
 Data Pattern
 Protocol Errors
Note: In packet view, right‐click on any frame, select Add to Trigger, and add the pattern to
DataPatternCapture to make it a trigger pattern.
Choosing a Parameter
Either highlight the category and click the Add>> button, or double‐click the category, to
open a corresponding definition dialog.
To remove an item, highlight it in the Project Tree, then click the <button.
Count field disabled Count field enabled
