Pending IO Graph

The Tool menu has a Pending IO Graph command, with horizontal zoom, vertical zoom,
click and drag zoom, graph area zoom, synchronize with trace view, fit to graph area and
graph view.

User Defined

You can define additional items for inclusion in the Histogram by clicking the

button to open the User Defined dialog.

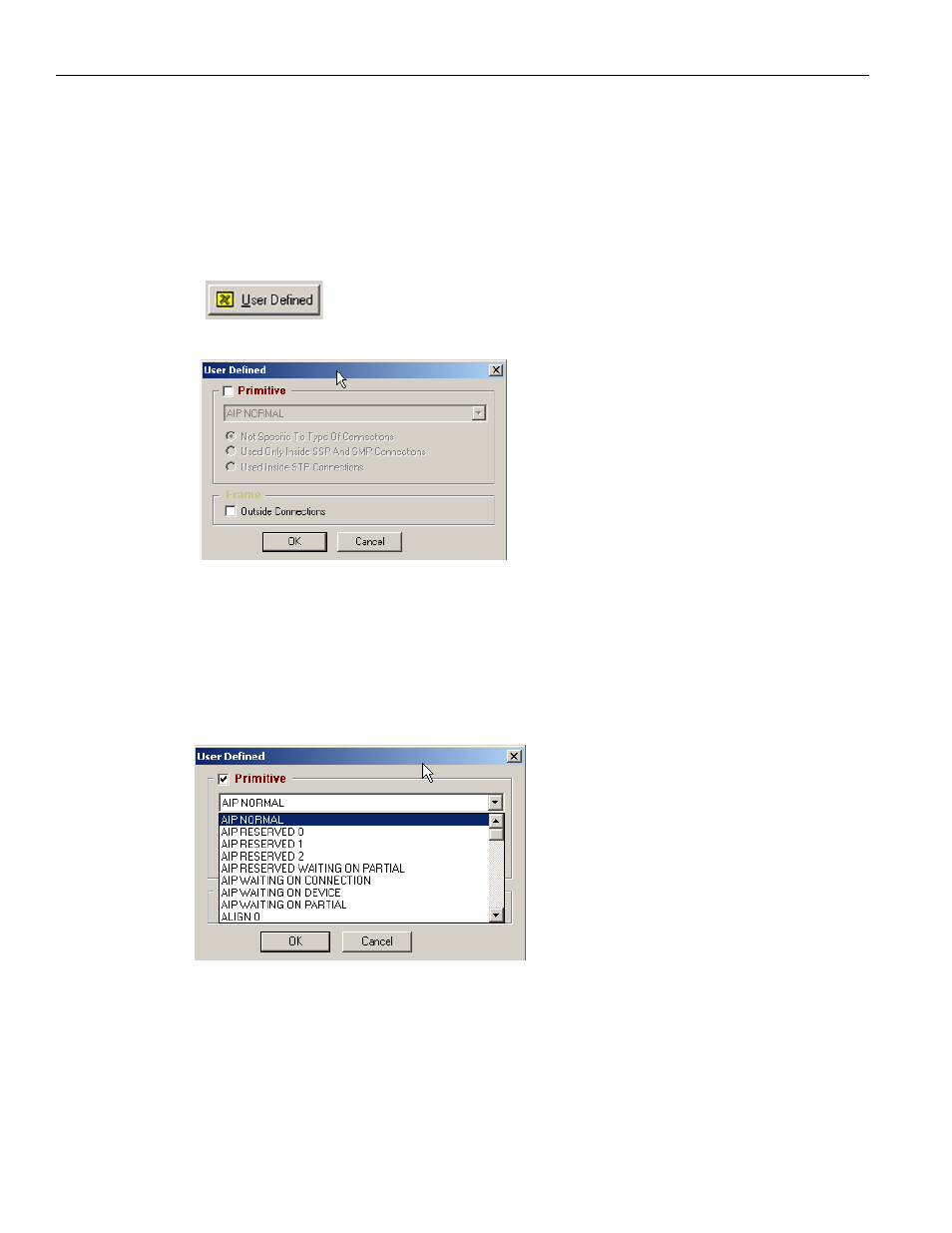

Figure 3.62: SAS: Histogram User Defined Dialog

You can include Primitive and/or Outside Connections frames.

Primitives

To include Primitives, check the Primitive check box, click the down arrow on the
Primitive list box, and choose a Primitive.

Figure 3.63: SAS: Choosing a Primitive
