Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 133
Emulation Teledyne LeCroy

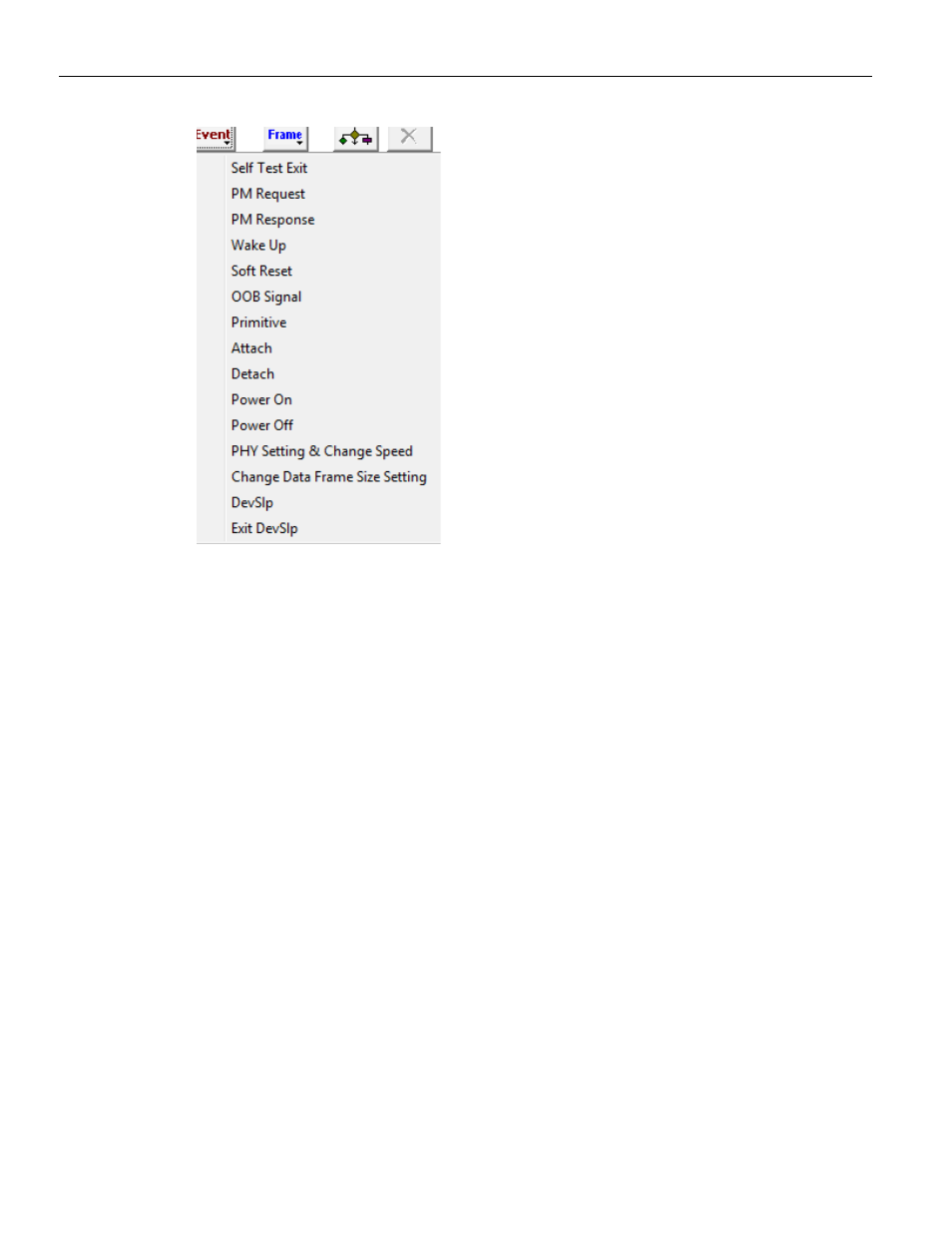

Figure 2.103: SATA: Event Dropdown List
SATA Event Commands:
Self Test Exit
PM Request
PM Response
Wake Up
Soft Reset
OOB Signal
Primitive
Attach
Detach
Power On‐ see
“Power On” on page 132
Power Off 
PHY Setting & Change Speed
Change Data Frame Size Setting
DevSlp‐ Toggles pin 3 of the power segment of the of the SATA connector to high setting.
Exit DevSlp‐ Toggles pin 3 of the power segment of the of the SATA connector to low
setting.
Power On
The Power Sources command supports 1.2, 1.5, 3.3, 5.0 and 12 Volts electricity voltage.
Click the ... button to display the Power Sources dialog (see
Figure 2.104 on page 133 ).
