Teledyne LeCroy SAS/SATA Software Menus and Toolbars
70 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
SAS vs. SATA: SATA Dialog shows Port at the top and does not show SSP or STP.
Define the data pattern for capture or exclusion from capture and click OK.
Note:
When entering the data pattern in the “data” section of this screen, if you are reading the data
pattern from a recorded trace, you must reverse the order of the bytes listed for each DWORD
entered. For example, if you want to capture (or exclude) “00 01 02 03” (as displayed in the
trace), you must enter this pattern as “03 02 01 00”.
2.2.23 Protocol Errors
Double‐click Protocol Errors to open the Protocol Errors selection dialog.

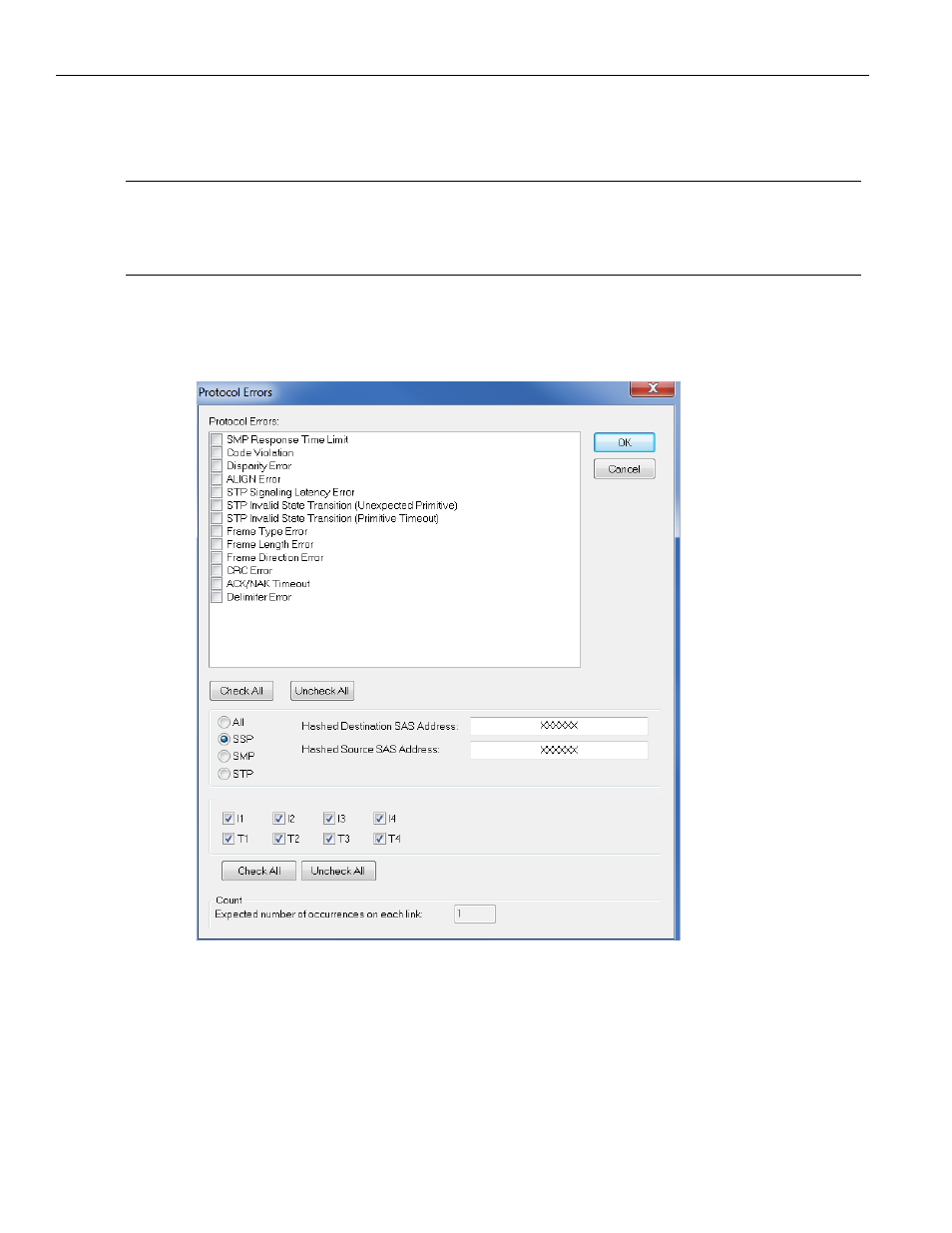

Figure 2.21: SAS: Protocol Errors Dialog
SAS vs. SATA: SATA dialog does not show ACK/NAK Timeout and has FIS signal‐latency and
state‐transition errors, not STP ones. SATA dialog does not show ALL. SSP and SMP radio
buttons.
Check protocol error(s) to omit or not capture, then click OK.
