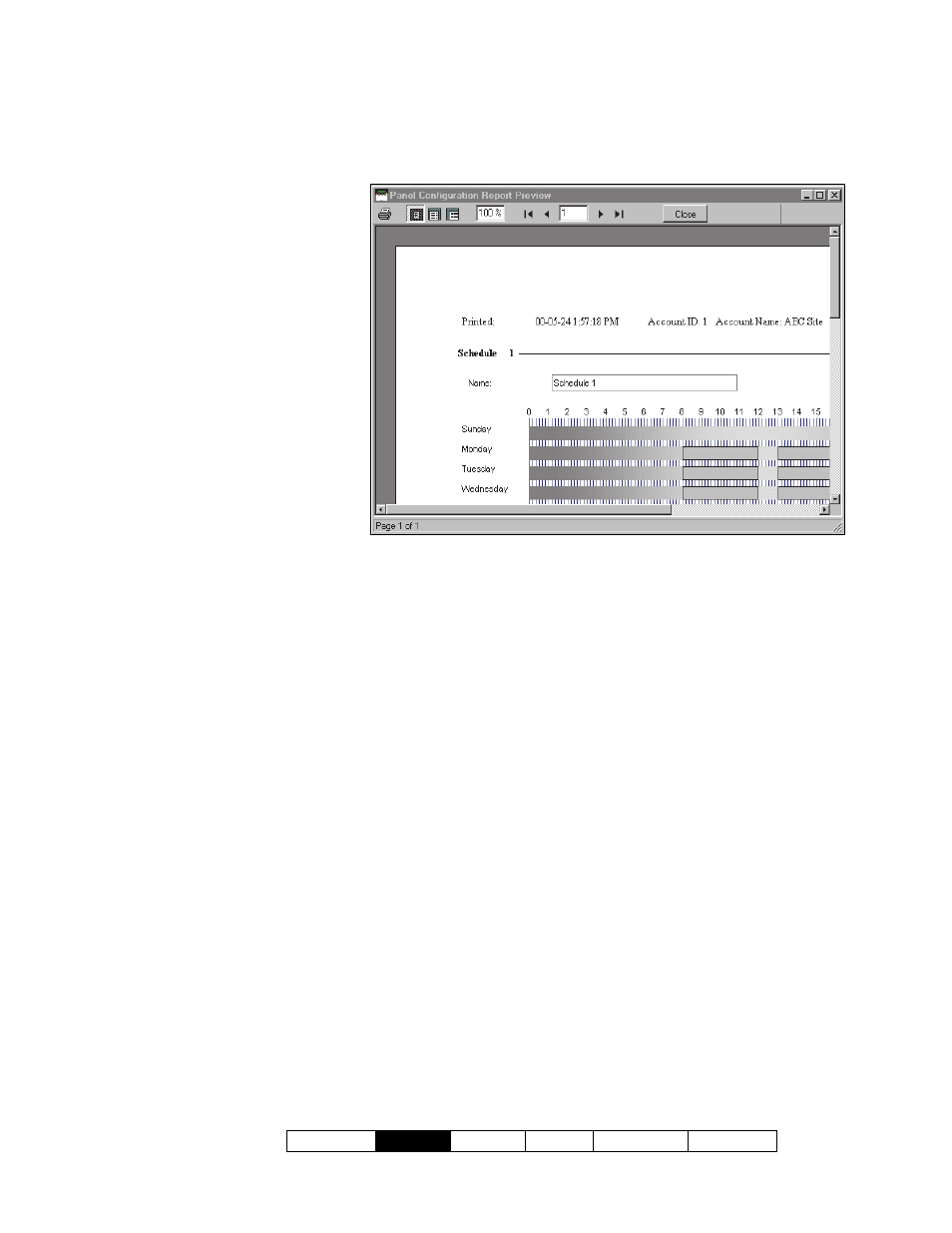

The Report Viewer

When a report is set to be
viewed, it appears with a
toolbar allowing:

 Viewing different pages of the

report;

 Setting the portion of each

page that will be visible at one

time (zooming in or out);

 Selecting a printer, and/or

setting the pages to be

printed;

 Printing the report.

Setting the Size / Visible
Portion
of a Report

To change the size/visible
portion of a report:

 Select one of the pre-set

magnification levels (page

symbols), or;

 Enter a desired magnification in the "%" box,

and press

Enter

Viewing Different Pages

To view a different page:

 Use the 'browse' buttons to find a page

(typical), or;

 Enter a desired page-number into the

'current page' box.

Printing a Report

To print the report that is presently on-screen,
click the print button (printer symbol). When
the next screen appears, select your desired
page-range, etc., and click

. Tip: To select

a different printer click

Printer

, and make your

selection from the 'Print Setup' screen that
appears.

VEREX Director automatically sets the preferred page
orientation for each report (portrait or landscape). This
setting should be left as-is.

Closing a Displayed Report and
Returning to the Main Screen

To close the report viewer window, and return
to the main desktop, click

[Close]

on the

report-viewer toolbar, or click the '

' in the top-

right corner of the report viewer window.

Screen Reference

(Report Viewer Toolbar)

- Print (printer symbol): This allows selecting

and/or setting up a printer, and printing either
the whole report, or a specific range of pages.

- Pre-set Magnifications (page symbols):

These selections allow viewing an entire page at
a time, or the page width, or viewing each page
actual-size (100% magnification);

- Zoom (xx%): This area shows the present

magnification level for the displayed report, and
allows entering a different value.

- |< < > >| (browse buttons): These buttons

allow moving to the first, previous, next, or last
page respectively.

- Current Page (xx): This area shows the page

number that is presently displayed, and allows
jumping to a different page by entering the page
number directly.
