LSI Corporation Confidential | July 2011 Page 107
MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility | Creating a Storage Configuration

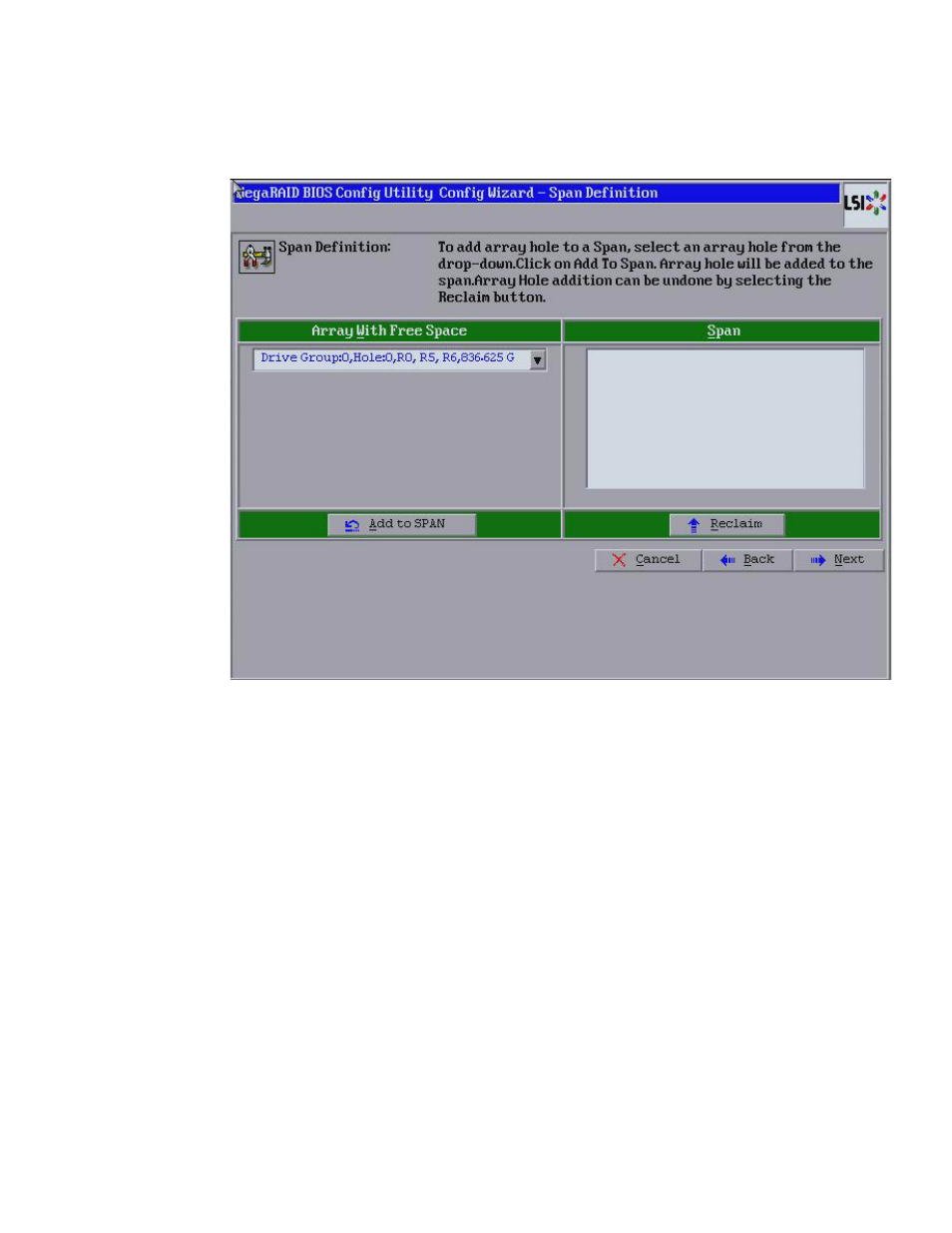

Figure 57: WebBIOS Span Definition Dialog
11. Under the heading Array With Free Space, select a drive group or drives, and click
Add to SPAN.
The drive group you select displays in the right frame under the heading Span.
12. Click Add to SPAN.
Both drive groups appear in the right frame under Span.
13. Click Next.
The Virtual Drive Definition dialog appears, as shown in Figure 58 . You use this
dialog to select the RAID level, strip size, read policy, and other attributes for the
new virtual drives.
