Avago Technologies MegaRAID Fast Path Software - Manual (Page 101)

LSI Corporation Confidential | July 2011 Page 101
MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility | Creating a Storage Configuration

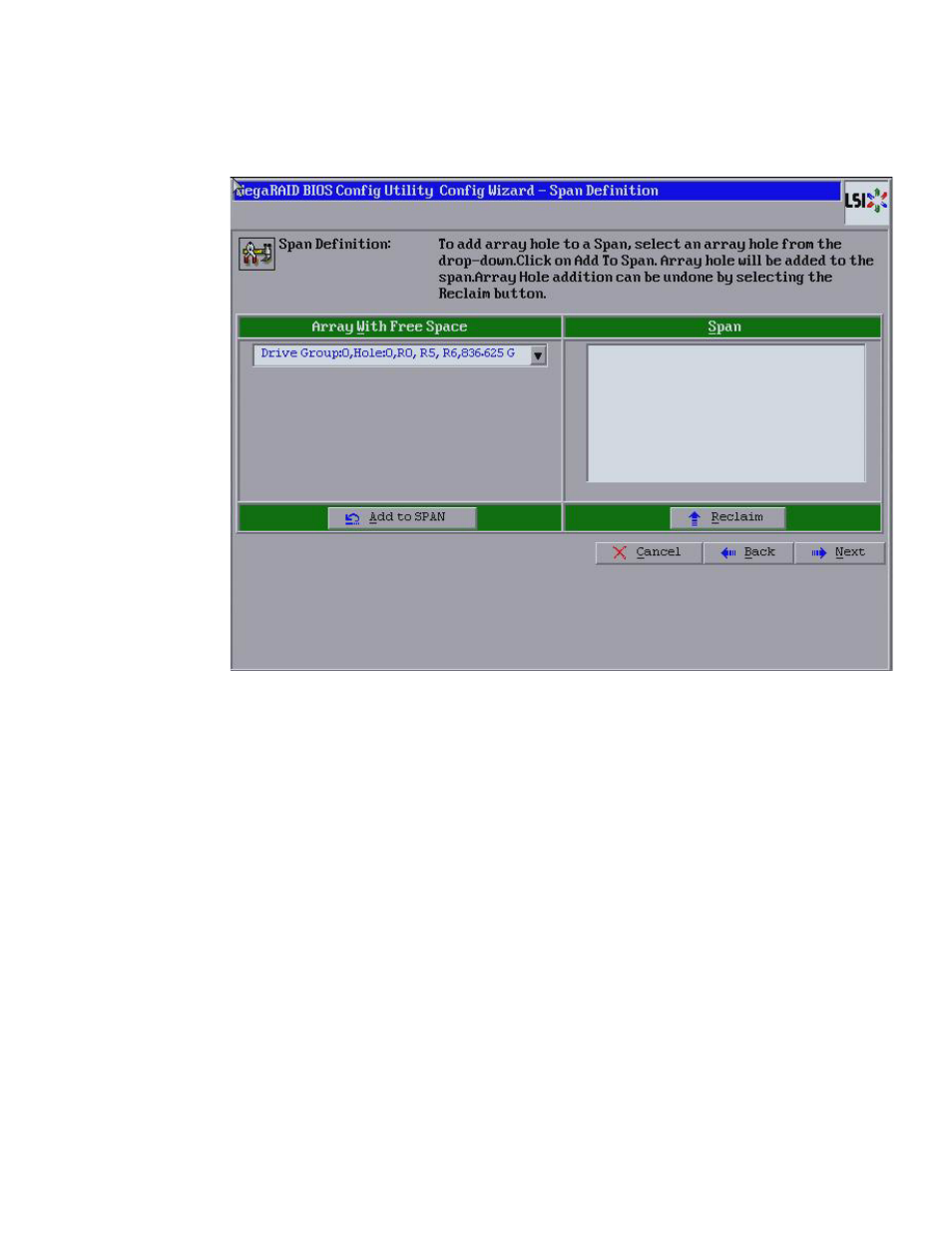

Figure 53: Span Definition Dialog
10. Under the Array With Free Space column, hold while you select a drive
group of three or more drives, and click Add to SPAN.
The drive group you select displays in the right frame under the heading Span.
11. Click Add to SPAN.
Both drive groups display in the right frame under Span.
12. Click Next.
The Virtual Drive Definition dialog appears, as shown in Figure 54 . You use this
dialog to select the RAID level, strip size, read policy, and other attributes for the
new virtual drives.
