3 - 1

PN

07

4-

50

5-

P1

F

IC6 Operating Manual

Chapter 3

Operation

3.1 Front Panel Controls

Operational controls for the IC6 are located on the front panel, see

Figure 3-1

.

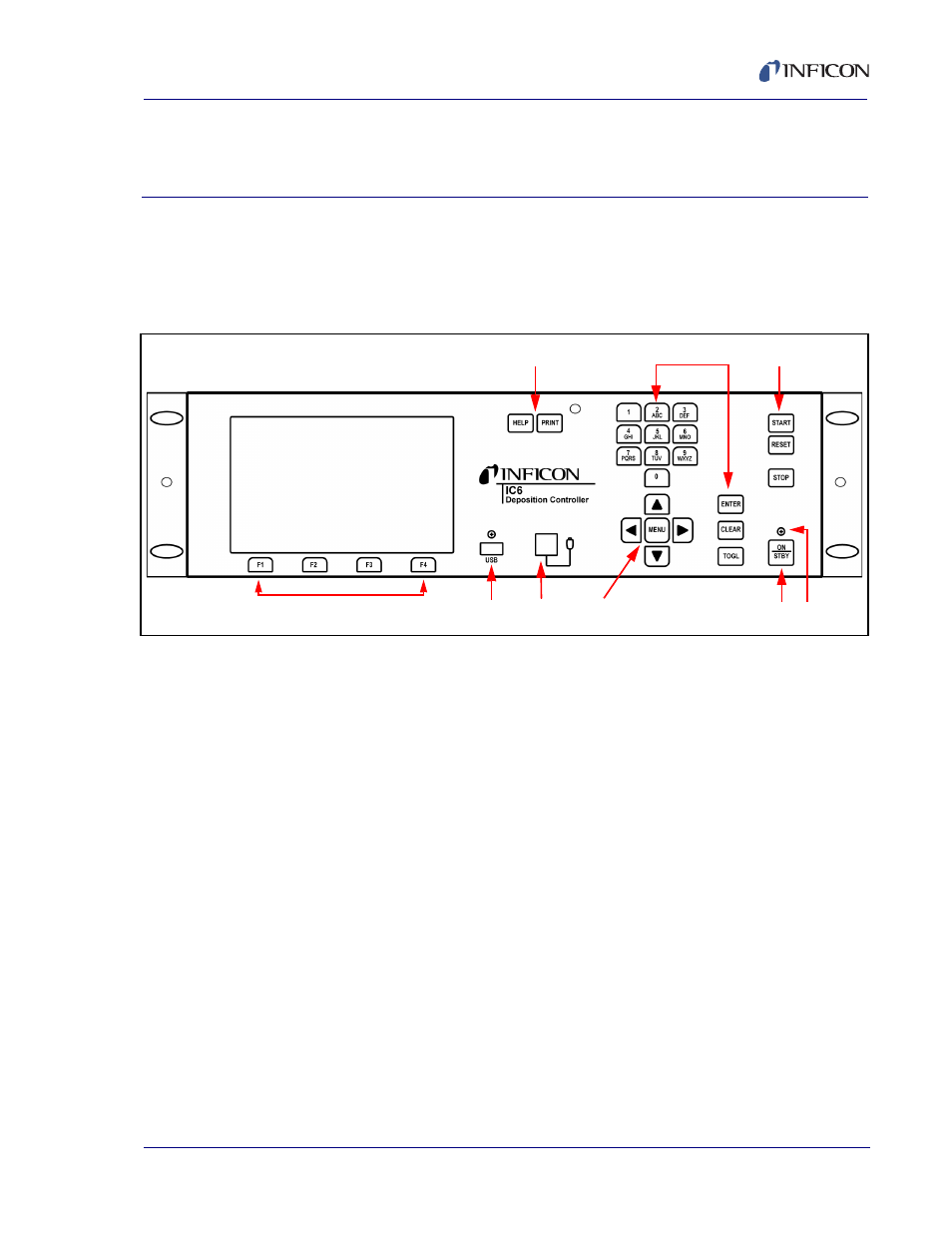

Figure 3-1 IC6 front panel

1 LCD Screen

Provides graphical displays, setup menus, status and error messages.

2 HELP and PRINT Function Keys

The HELP key brings up context-related text. The PRINT key sends the LCD
screen content to the USB storage device.

3 Data Entry Keys

A keypad array with numerics 0 through 9 with telephone-style assigned letters
for parameter entry. All numeric entries need to be followed by ENTER. CLEAR
is used to erase data entry errors. If an illegal value has been entered, CLEAR
will erase the error message and re-display the last valid data. Pressing TOGL
moves through selection options such as Yes or No or others such as sensor
types. Pressing ENTER continues with the selected choice.

4 System Switches

An array of three keys that provide START, STOP and RESET for process
control.

5 Handheld Controller Mount

Tapped hole for attaching support bracket.

1

2

3

4

11

10

9

8

7

5

6

5
