Features & benefits – Brocade Multi-Service IronWare Routing Configuration Guide (Supporting R05.6.00) User Manual
Page 410
382
Multi-Service IronWare Routing Configuration Guide
53-1003033-02
Features & benefits

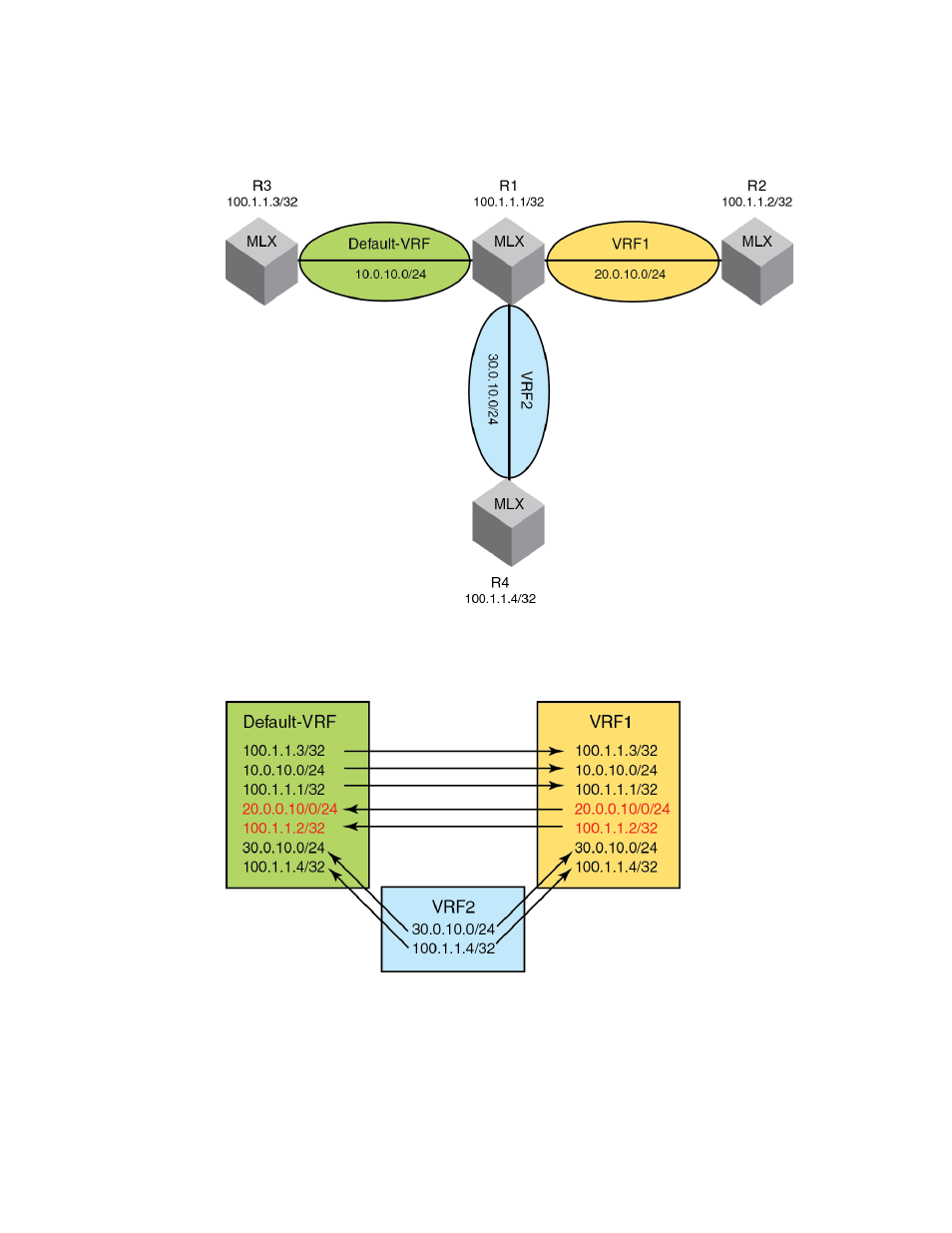

FIGURE 29
A Network deploying Inter-VRF
Following are the route entries and routing tables in Router R1.
FIGURE 30
Router R1 route-entries and route-tables
Features & benefits
Inter-VRF routing feature allows customers to selectively access each other’s networks through
configuration. It allows all VRFs to share the same path to the external domain while keeping
internal routing information separate.
