Port VLANs
26
Displaying VLANs by products
The Product View tab of the VLAN Manager dialog box presents the products that have been
discovered on the network and the VLANs that have been assigned to them.
NOTE
Only products assigned to Management application areas of responsibility (AORs) are listed under
the VLANs in the Product View tab.
To view VLANs, complete the following steps.
1. Click the Product View tab in the VLAN Manager dialog box.
The Product View tab of the VLAN Manager dialog box displays ( Figure 404 ).

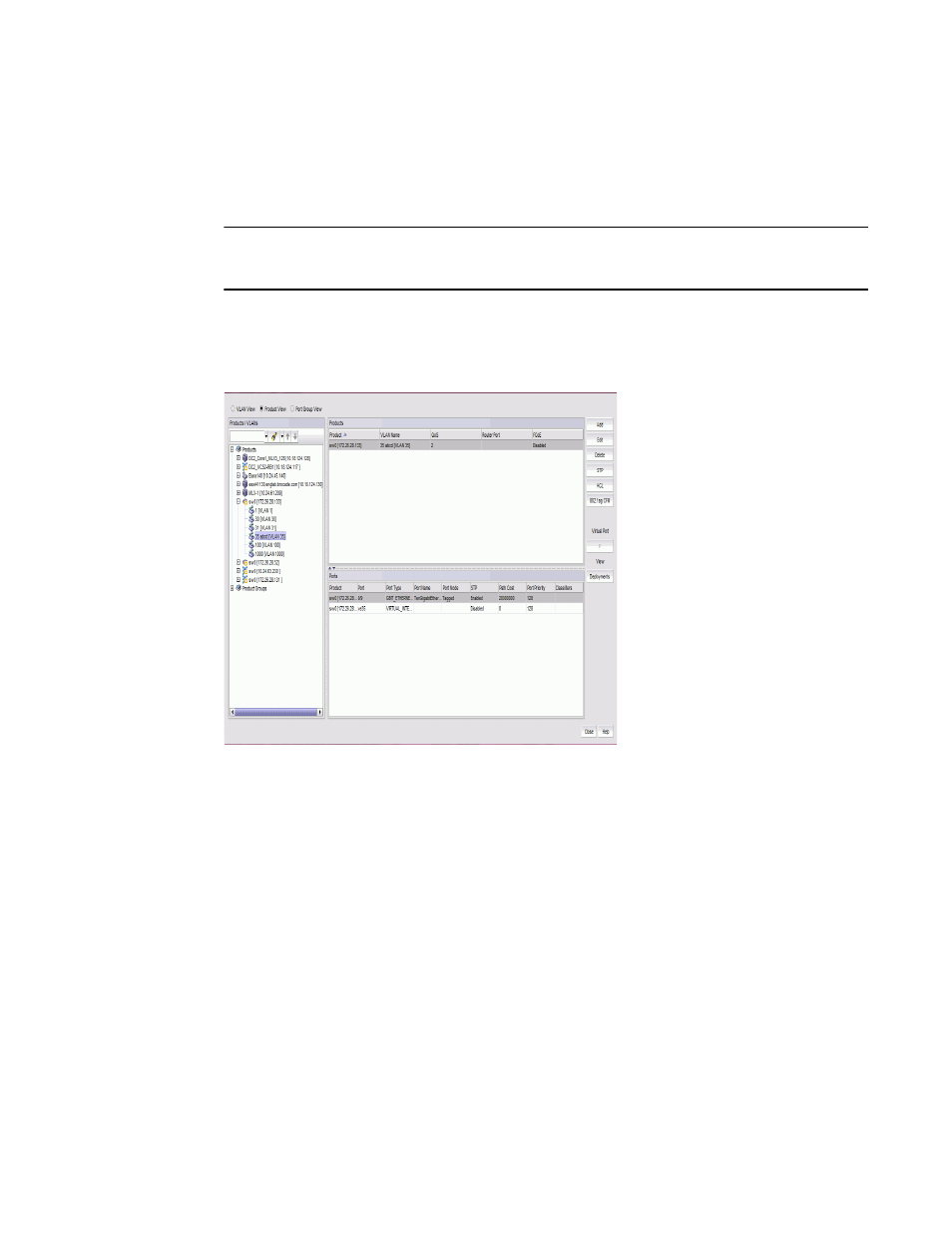

FIGURE 404 VLAN Manager dialog box - Product View tab
2. Expand a product to display the port VLANs that have been configured on that product.
3. Click a VLAN in the list to display the interfaces on that product that belong to the VLAN.
Port VLANs
VLAN Manager facilitates the creation, modification, and deletion of port VLANs on products that
are known to the Management application. It also aids in the bulk deployment of these VLANs. For
example, VLAN 3 can be configured on four products. If the VLAN definition for VLAN 3 is modified,
the new definition can be deployed to all four products at one time.
The Configure Port VLAN function in VLAN Manager allows you to define a port VLAN definition that
adds a new VLAN to a product or modify an existing port VLAN on a product. The port VLANs can be
designated as tagged, untagged, or converged.
