Security configuration deployment
17
Scheduling a security configuration deployment
To schedule a security configuration deployment, complete the following steps.

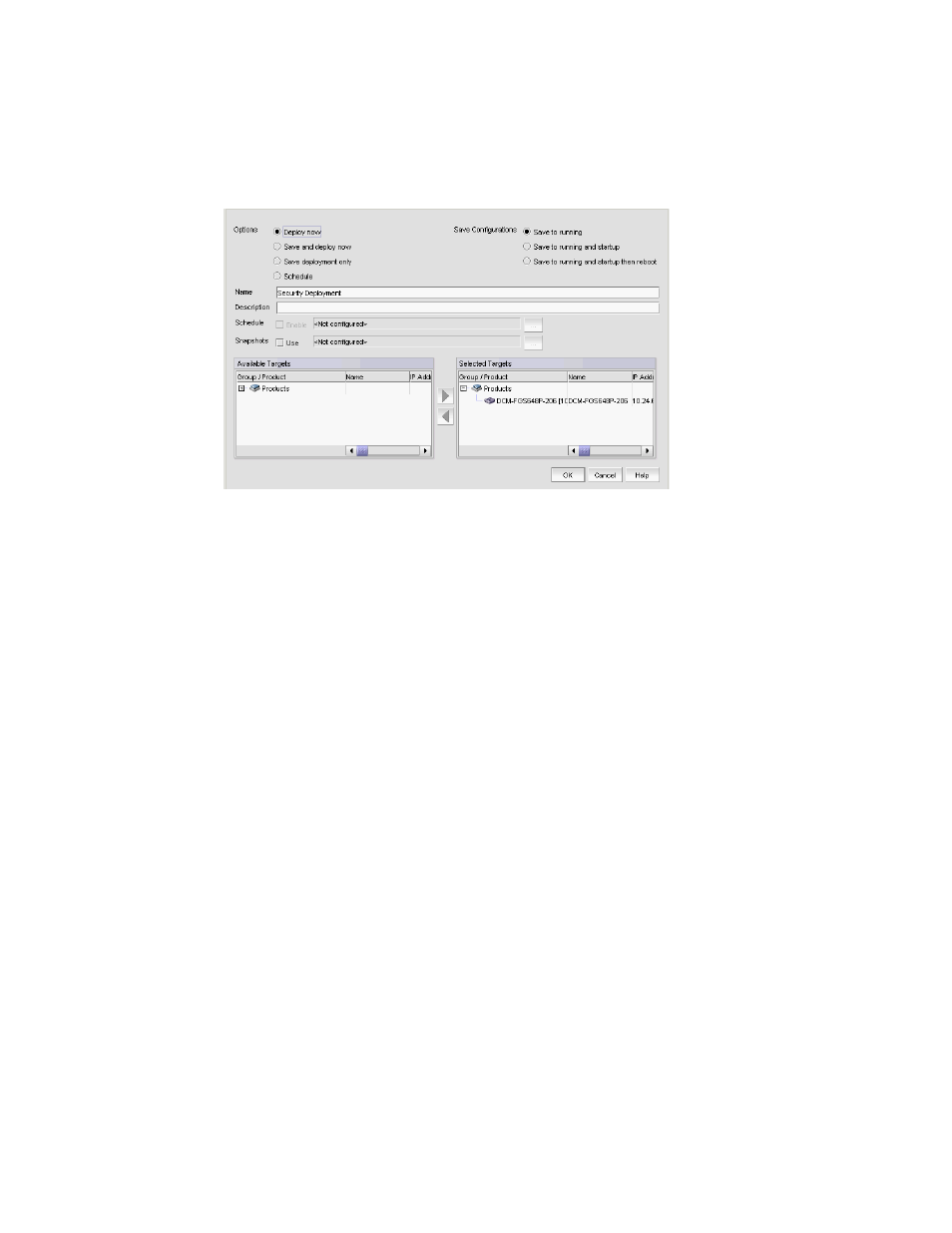

FIGURE 189 Deploy to Product/Ports dialog box
1. Select Configure > Security > Layer 2 ACL > Product.
The Device_Name - Layer 2 ACL Configuration dialog box displays.
2. Choose one of the following options:
• Select New from the Add list.
The Add - Layer 2 ACL Configuration dialog box displays.
• Select an ACL in the list and click Edit.
The Edit - Layer 2 ACL Configuration dialog box displays.
3. Configure the Layer 2 ACL and click OK on the Add/Edit - Layer 2 ACL Configuration dialog box.
4. Click OK on the Device_Name - Layer 2 ACL Configuration dialog box.
The Deploy to Products - Layer 2 ACL dialog box displays.
5. Select the Schedule option.
6. Select one of the following save configuration options:
• Save to running
• Save to running and startup
• Save to running and startup then reboot
7. Enter a name for the deployment in the Name field.
8. Enter a description for the deployment in the Description field.
9. Click the Schedule Enable check box and click the ellipsis button to schedule deployment.
The Schedule Properties dialog box displays.
