1004 Brocade Network Advisor SAN User Manual
53-1002948-01
SAN connection utilization
29

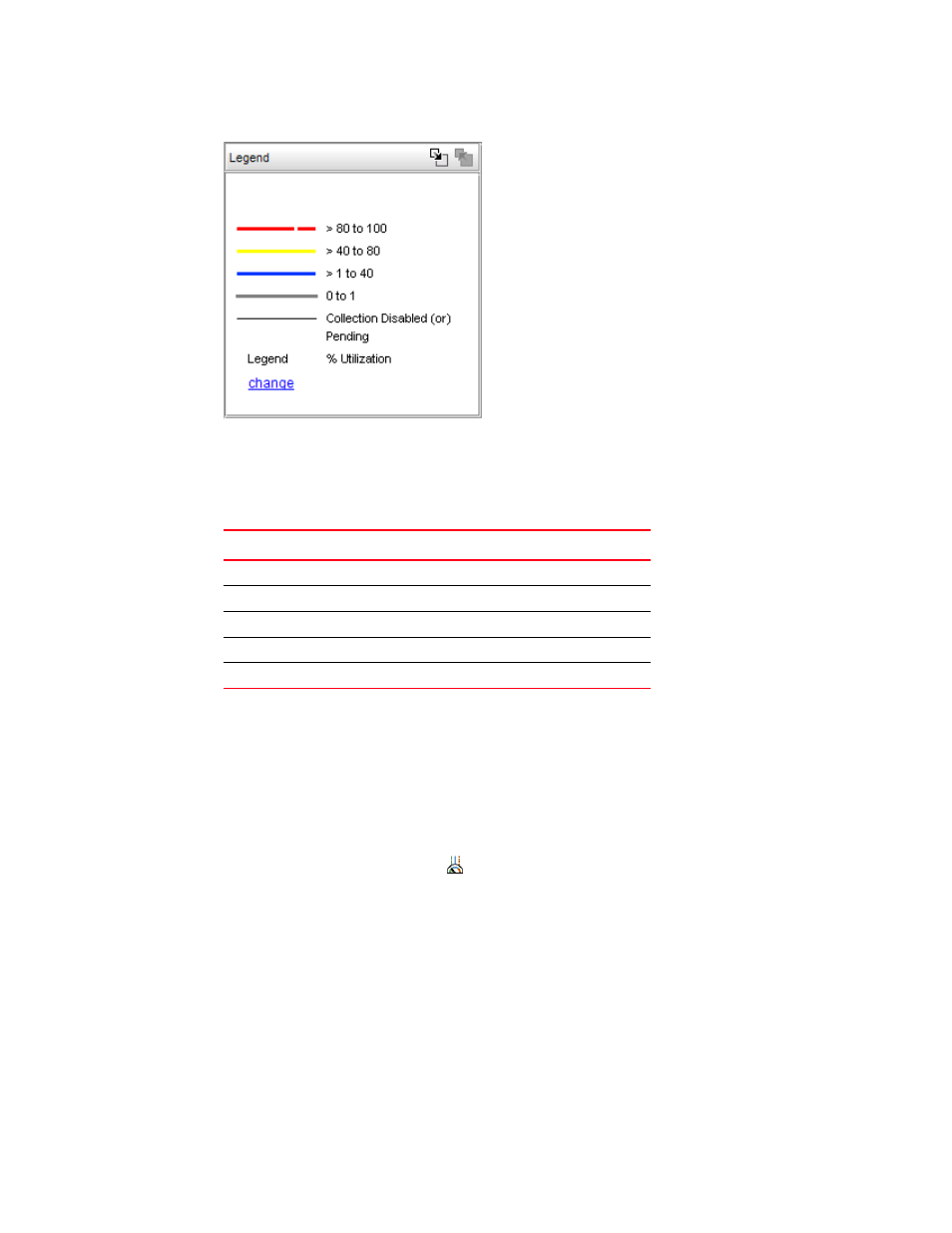

FIGURE 427 Utilization Legend
The colors and their meanings are outlined in Table 83 on page 1004.
TABLE 83 Utilization Legend
Enabling connection utilization
To display the connection utilization, complete the following steps.
1. Choose from one of the following options:
• Select Monitor > Performance > View Utilization.
• Press CTRL + U.
• Click the Utilization icon ( ).
If you have already enabled historical data collection, the Utilization Legend displays in the
main interface window.
If you have not already enabled historical data collection, a message appears informing you
that you must enable historical data collection before you can view utilization.
2. Choose one of the following options:
• Select Enable SAN Wide to enable data collection for the entire SAN.
Line color Utilization defaults
Red line 80% to 100% utilization
Yellow line 40% to 80% utilization
Blue line 1% to 40% utilization
Gray line 0% to 1% utilization
Black line Utilization disabled
