Creating a new encryption group
20

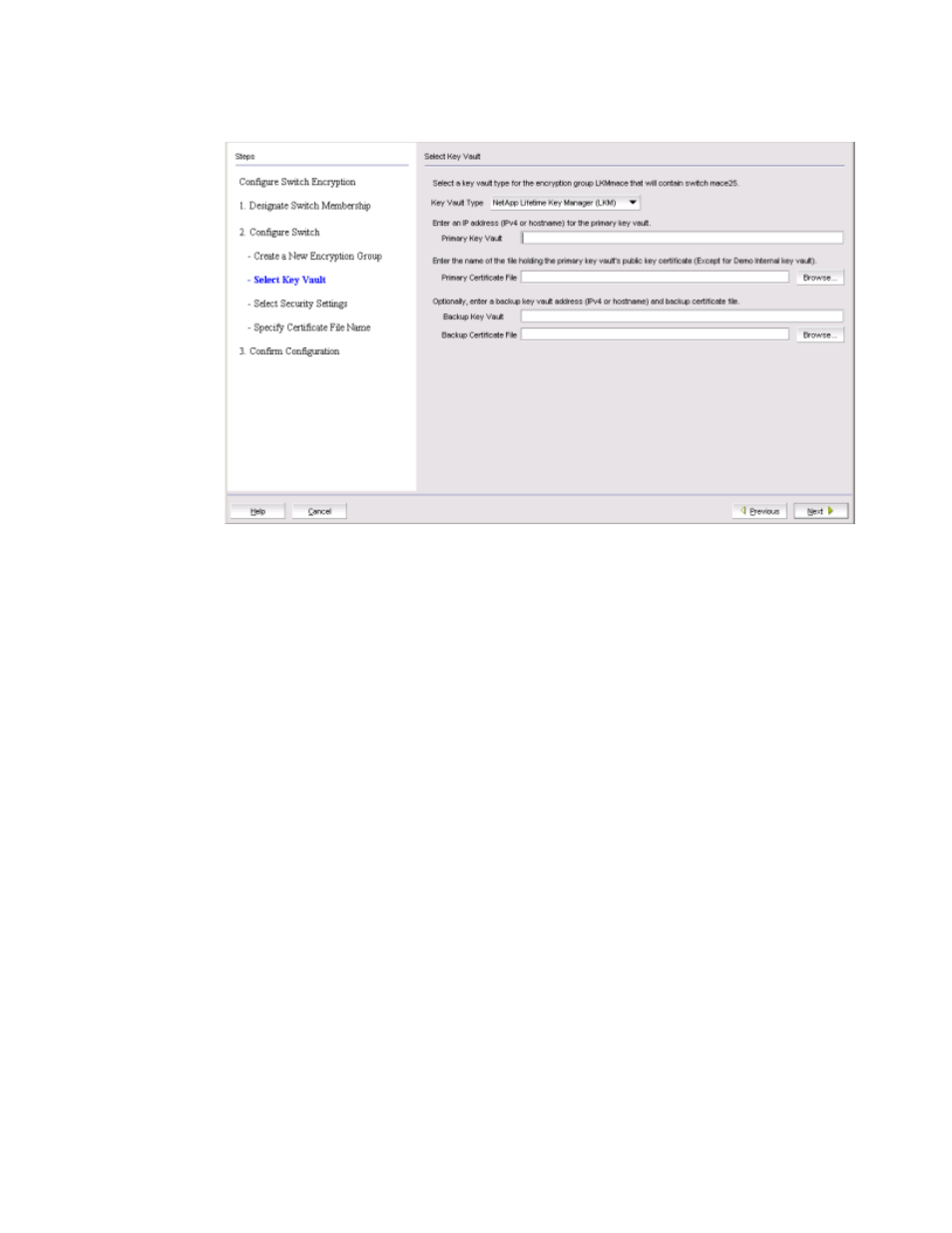

FIGURE 255 Select Key Vault dialog box for LKM/SSKM
1. Enter the IP address or host name for the primary key vault.
2. Enter the name of the file that holds the primary key vault’s public key certificate, or browse to
the desired location.
3. If you are using a backup key vault, enter the IP address or host name, and the name of the file
holding the backup key vault’s public key certificate, then click Next.
The Specify Public Key Certificate (KAC) File Name dialog box displays. (Refer to Figure 256 .)
