Zoning overview
21

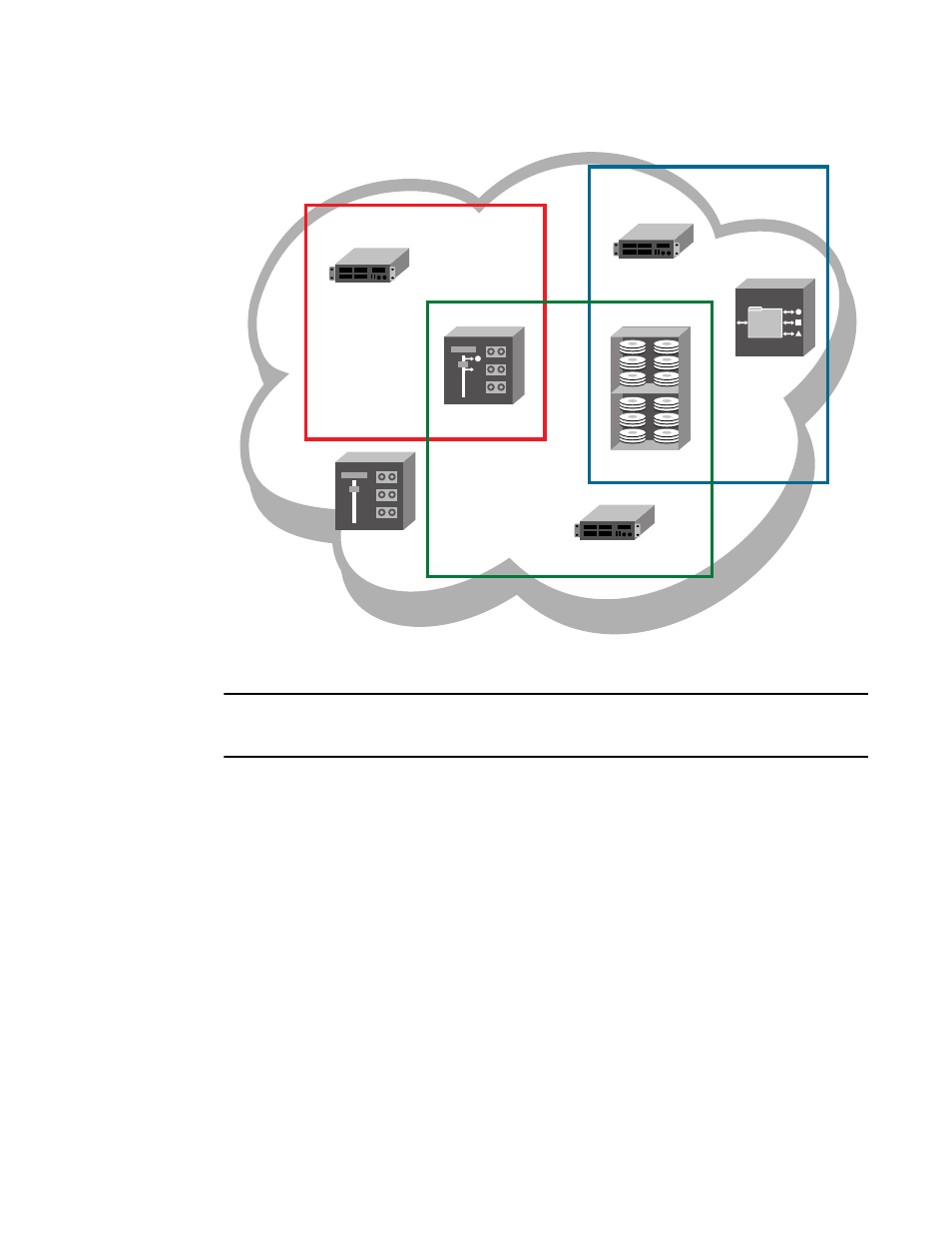

FIGURE 351 Zoning
NOTE
Zone objects based on physical port number or port ID (D,I ports) are not supported in Network OS
fabrics.
Types of zones
The following types of zones are supported:
• Standard zones
Enable you to partition your fabric into logical groups of devices that can access each other.
These are “regular” or “standard” zones. Unless otherwise specified, all references to zones
refer to these standard zones.
• Frame redirection zones
Reroute frames between an initiator and target through a Virtual Initiator and Virtual Target for
special processing or functionality, such as for storage virtualization or encryption. Refer to
“Redirection zones” on page 726 for more information.
• LSAN zones
Provide device connectivity between fabrics without merging the fabrics. Refer to “LSAN zones”
on page 785 for more information.
Red Zone
Server 1
Server 2
Storage 1
Storage 3
Storage 2
Server 3
RAID
Green Zone
Blue Zone
