Smart card usage
20
Registering authentication cards from the database
Smart cards that are already in the Management program’s database can be registered as
authentication cards.
1. Select Configure > Encryption from the menu task bar to display the Encryption Center
dialog box. (Refer to Figure 196 on page 566.)
2. Select an encryption group from the Encryption Center Devices table, then select Group >
Security from the menu task bar to display the Encryption Group Properties dialog box. The
Security tab is selected. (Refer to
Figure 199 .)

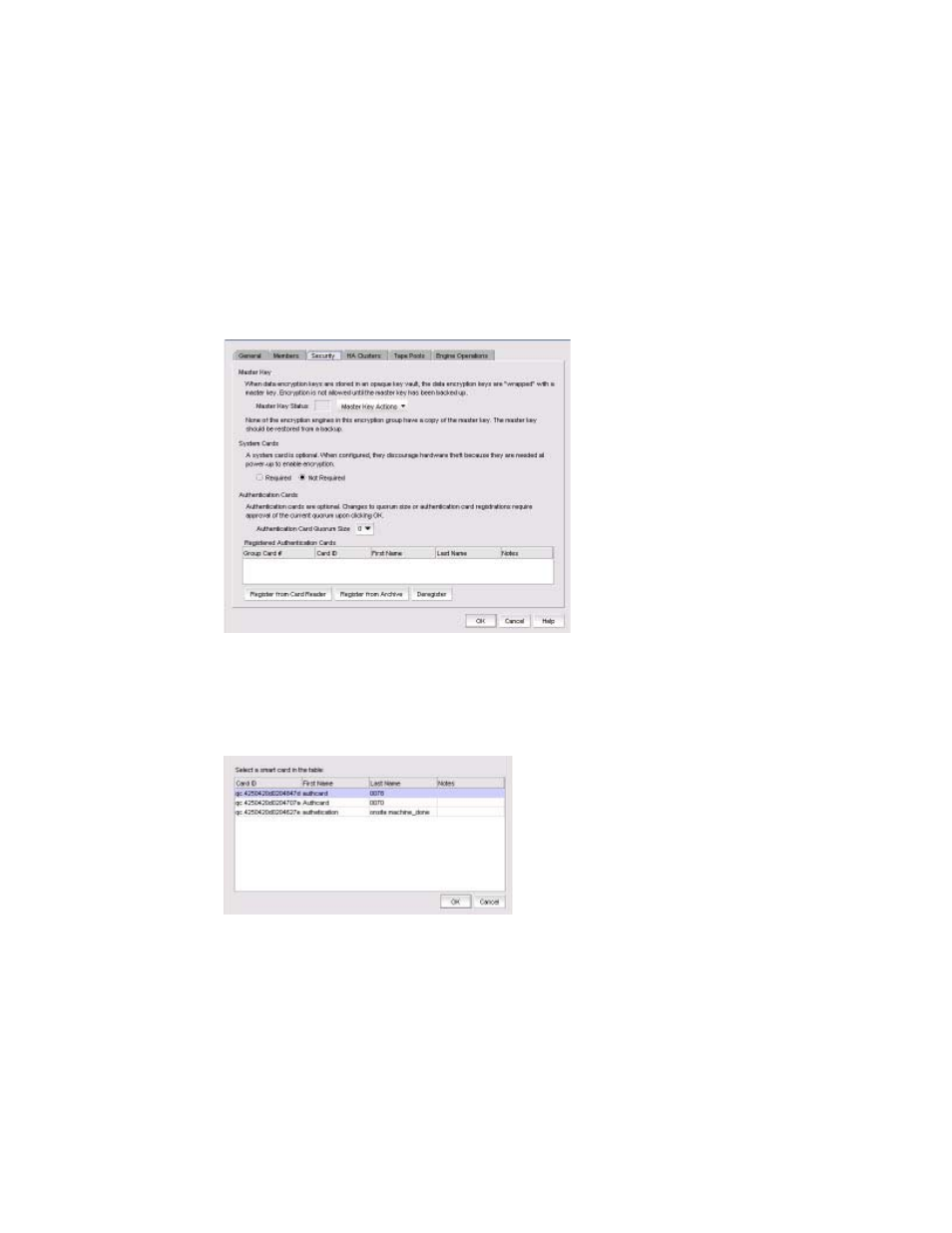

FIGURE 199 Encryption Group Properties dialog box - Security tab
3. Click Register from Archive.
The Authentication Cards dialog box displays. (Refer to Figure 200 .) The table lists the smart
cards that are in the database.
FIGURE 200 Authentication Cards dialog box - Registering smart cards from archive
4. Select a card from the table, then click OK.
5. Wait for the confirmation dialog box indicating initialization is done, then click OK.
The card is added to the Registered Authentication Cards table.
