400 Brocade Network Advisor SAN User Manual
53-1002948-01
Ports
12
The following table lists the port status icons that display:
Viewing port optics
NOTE
QSFP ports do not display in the Port Optics dialog box.
Enables you to view port optics for FC, TE, GE, and XGE ports.
To view port optics, complete the following steps.
1. Right-click the switch for which you want to view port optic information on the Connectivity Map
and select Port Optics (SFP).
The Port Optics (SFP) dialog box displays ( Figure 145 ).

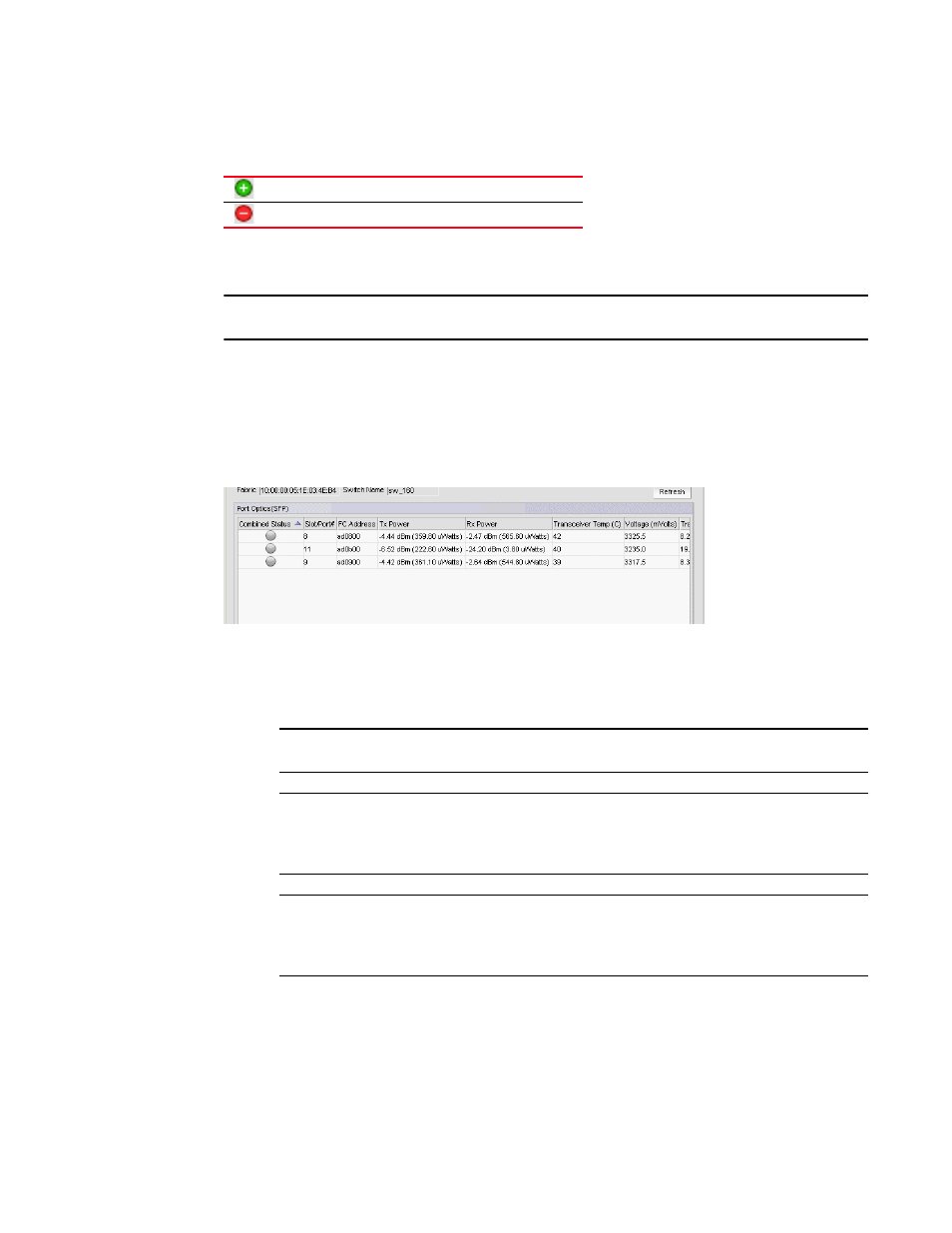

FIGURE 145 Port Optics dialog box
2. Review the port optics information.
• Combined Status — Displays the current status of the port.
NOTE
Requires a 16 Gbps capable port running Fabric OS 7.0 or later.
NOTE
For devices running Fabric OS 7.1 or earlier, the device must have a Fabric Watch license
and threshold monitoring configured for the port. For more information, refer to the Fabric
Watch Administrator’s Guide.
NOTE
For devices running Fabric OS 7.2 or later, the device must have a Fabric Vision license,
MAPS must be enabled, and threshold monitoring configured for the port. For more
information, refer to the
“Monitoring and Alerting Policy Suite” on page 1157.
If the port is online and port monitoring is active, displays the current status of the port
based on these five parameters: Transceiver Temp (C), Rx Power, Tx Power, Transceiver
Current (mAmps), and Voltage (mVolts).
Port added
Port removed, missing, or segmented
