Disabling FCIP tunnels
22

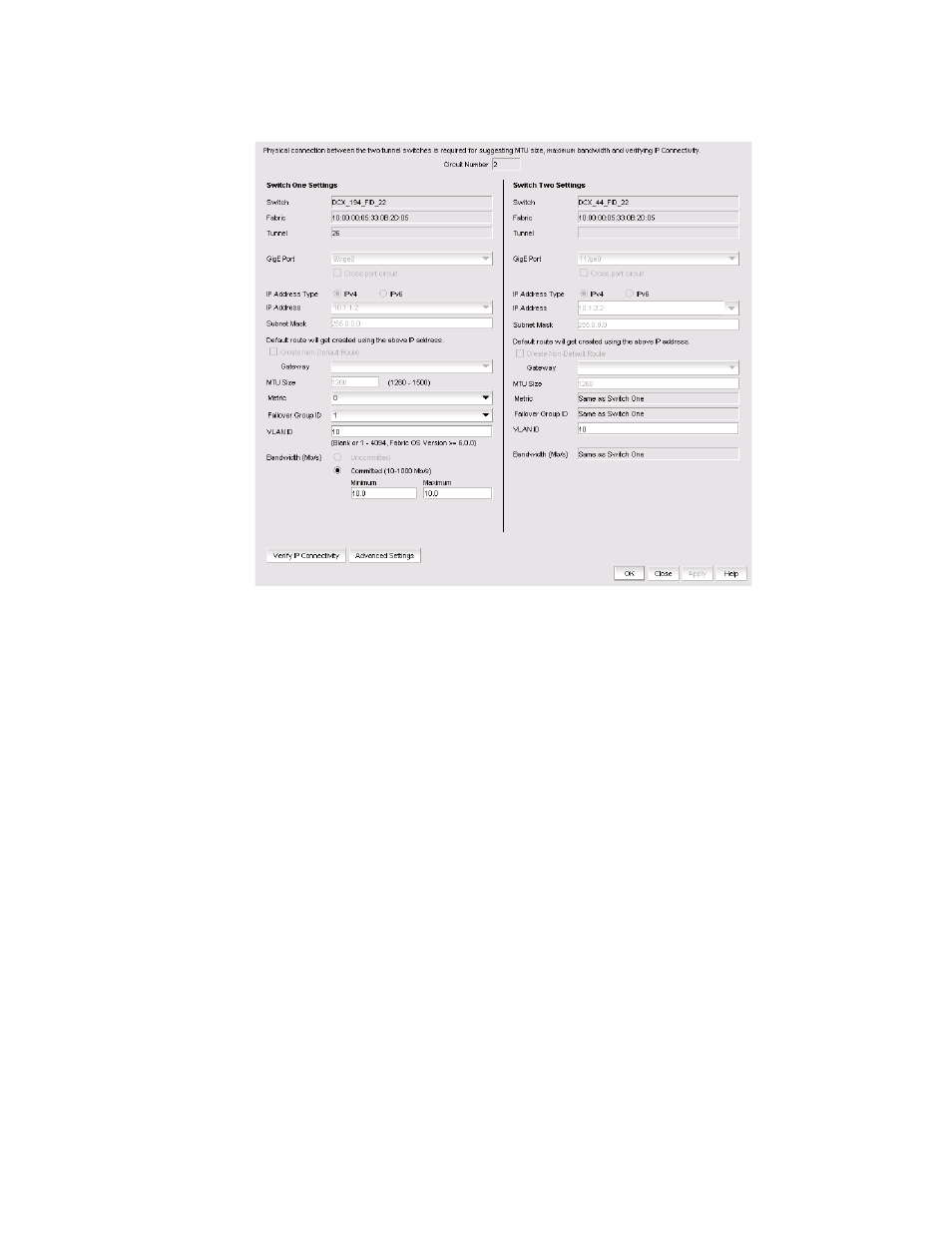

FIGURE 375 Edit FCIP Circuit dialog box
3. Fields and parameters are as described in “Adding an FCIP circuit” . You can edit all editable
fields and parameters.
Disabling FCIP tunnels
1. From the FCIP Tunnels dialog box, select the tunnel you want to disable.
2. Select Disable.
A confirmation dialog box displays showing the switches on both ends of the tunnel and tunnel
number.
3. Click Yes to disable the tunnel.
Enabling FCIP tunnels
1. From the FCIP Tunnels dialog box, select the tunnel you want to enable.
2. Select Enable.
3. Click OK to enable the tunnel.
