Provisioning flows
30
2. Enter an Frame Type or select the ellipses button on the right of the Frame Type field to display
the Frame Type Picker dialog box. Use this dialog box to select available frame command types.

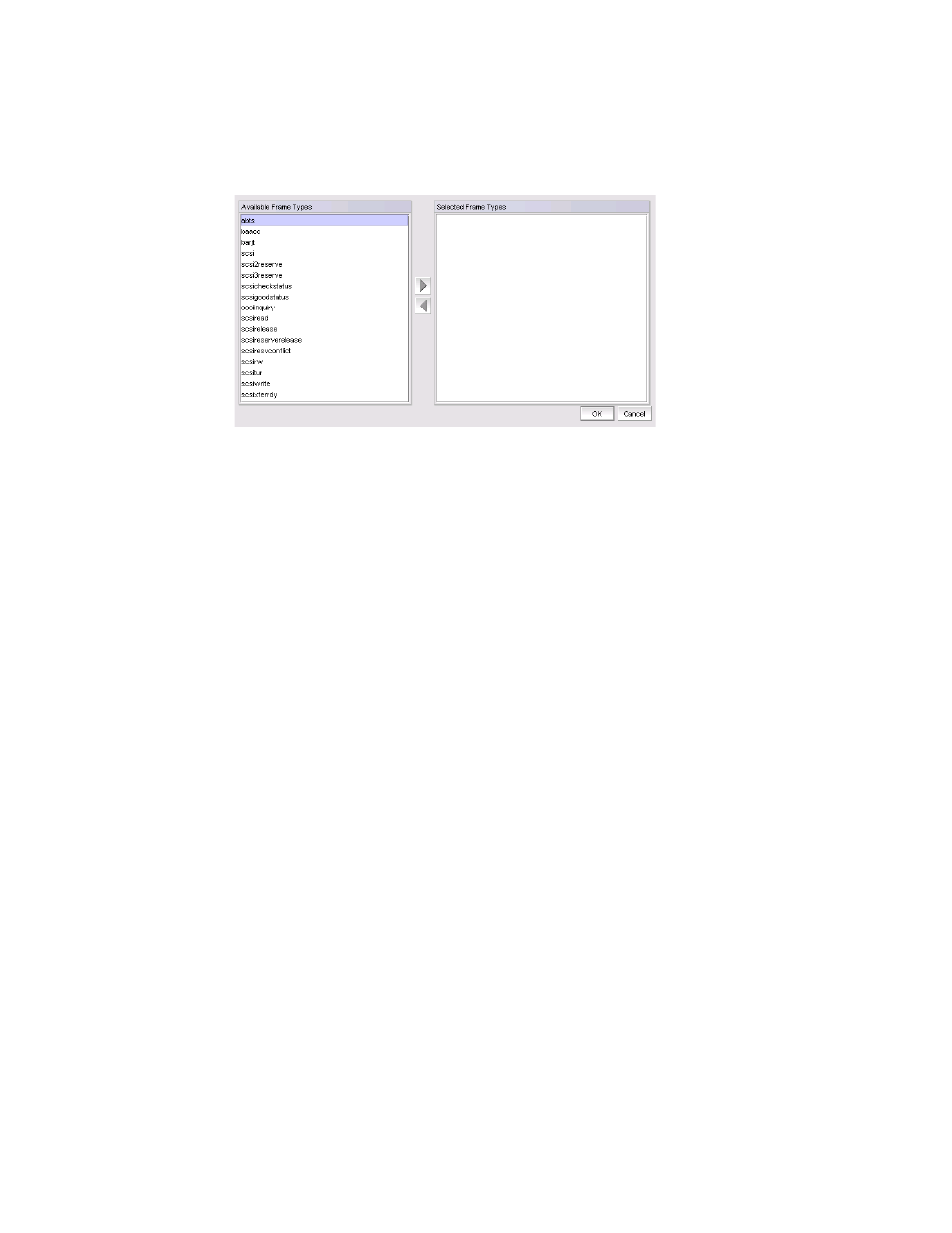

FIGURE 438 Frame Type Picker
Move your selections to the “selected” box using the right arrow and remove them using the
left arrow.
The following Frame Type commands are supported:
- SCSI
- SCSIRead
- SCSIWrite
- SCSIRW
- SCSI2Reserve
- SCSI3Reserve
- SCSI2Release
- SCSI3Release
- SCSI2ReserveRelease
- SCSI3ReserveRelease
- SCSITur
- SCSIStatus
- SCSIInquiry
- SCSIXferrdy
- ABTS
- BAACC
- SCSIGoodStatus
- SCSICheckStatus
- SCSIResvConflict
- BARJT
3. Enter LUN IDs between 0 and 65535 that you want to include in the flow definition.
4. Select OK to save the definition and launch the add flow progress dialog box.
