76 9440500990 Rev D
Metering DECS-250N

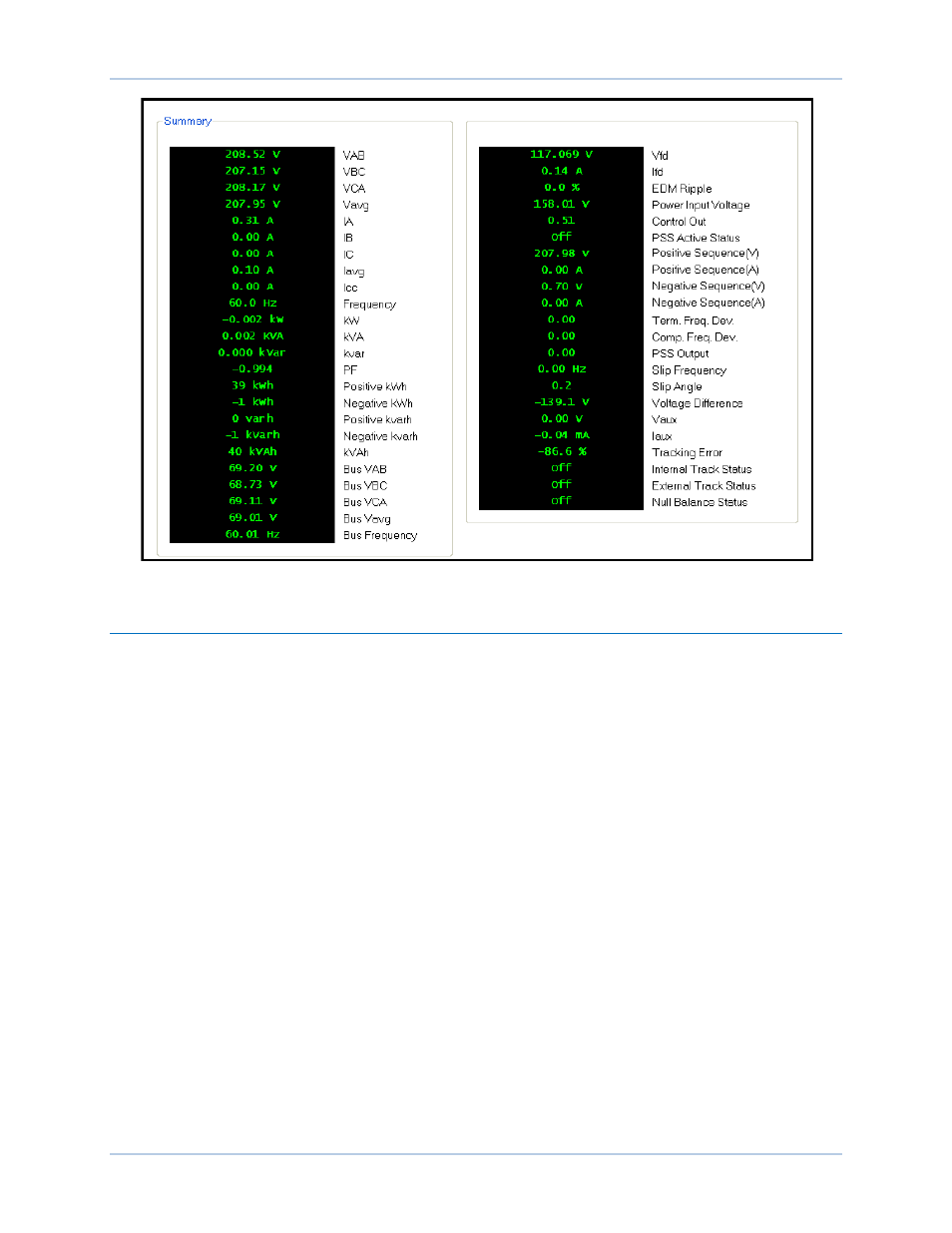

Figure 68. Metering Summary Screen
Status Indication
Status indication is provided for DECS-250N system functions, inputs, outputs, network load share,
configurable protection, alarms, and the real-time clock.
System Status
BESTCOMSPlus Navigation Path: Metering Explorer, Status, System Status
HMI Navigation Path: Metering Explorer, Status, System Status
When any of the system functions illustrated in Figure 69 are active, the corresponding indicator changes
from gray to green. An inactive function is represented by a gray indicator.
