DECS-250N BESTlogic
™Plus

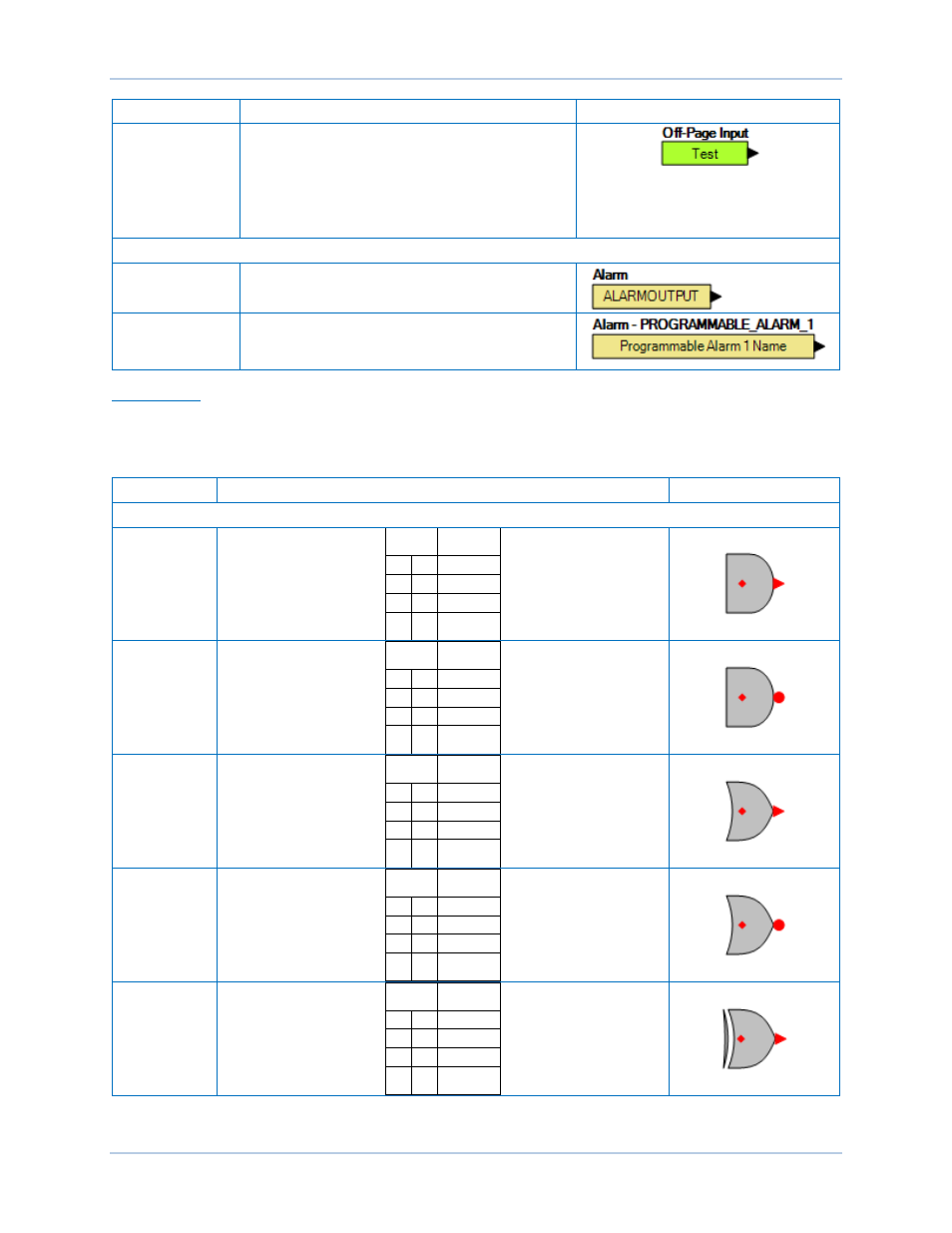

Name Description Symbol
Off-Page Input
Used in conjunction with the Off-Page Output to
transform an output on one logic page into an input
on another logic page. Inputs can be renamed by
right-clicking and selecting Rename Input. Right-
clicking will also show pages that the
corresponding outputs can be found on. Selecting
the page will take you to that page.
Alarms
Global Alarm True when one or more alarms are set.
Programmable
Alarms 1 - 16 True when a programmable alarm is set.
Components
This group contains Logic Gates, Pickup and Dropout Timers, Latches, and Comment Blocks. Table 13
lists the names and descriptions of the objects in the Components group.
Table 13. Components Group, Names and Descriptions
Name Description Symbol
Logic Gates
AND
Input Output
0 0
0
0 1 0
1 0 0
1 1 1
NAND
Input Output
0 0
1
0 1 1
1 0 1
1 1 0
OR
Input Output
0 0
0
0 1 1
1 0 1
1 1 1
NOR
Input Output
0 0
1
0 1 0
1 0 0
1 1 0
XOR
Input Output
0 0
0
0 1 1
1 0 1
1 1 0
