334 9440500990 Rev D
Analog Expansion Module DECS-250N

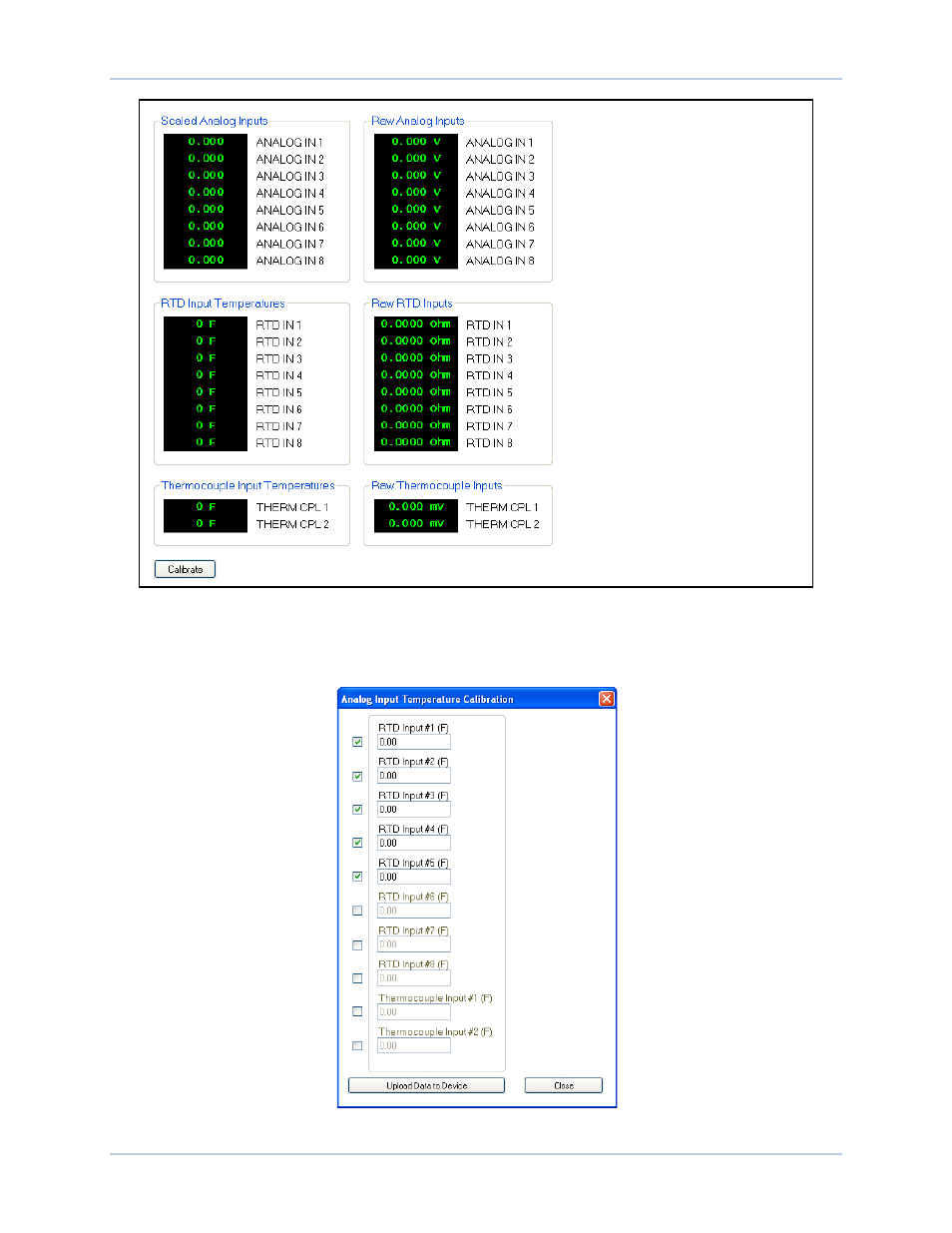

Figure 184. Remote Analog Input Values Metering
When connected to a DECS-250N, the Calibrate button shown on the Remote Analog Input Values
screen opens the Analog Input Temperature Calibration screen shown in Figure 185. This screen is used
to calibrate RTD inputs 1 through 8 and thermocouple inputs 1 and 2.
Figure 185. Remote Analog Input Temperature Calibration
