The logic limiter compares the signal from the washout filter with the logic limiter upper JJ and lower KK limit
settings. If the counter reaches the set delay time LL , the time constant for the washout filter changes from
the normal time constant to the limit time constant. When the signal returns to within the specified limits,
the counter resets and the washout filter time constant changes back to the normal time constant.

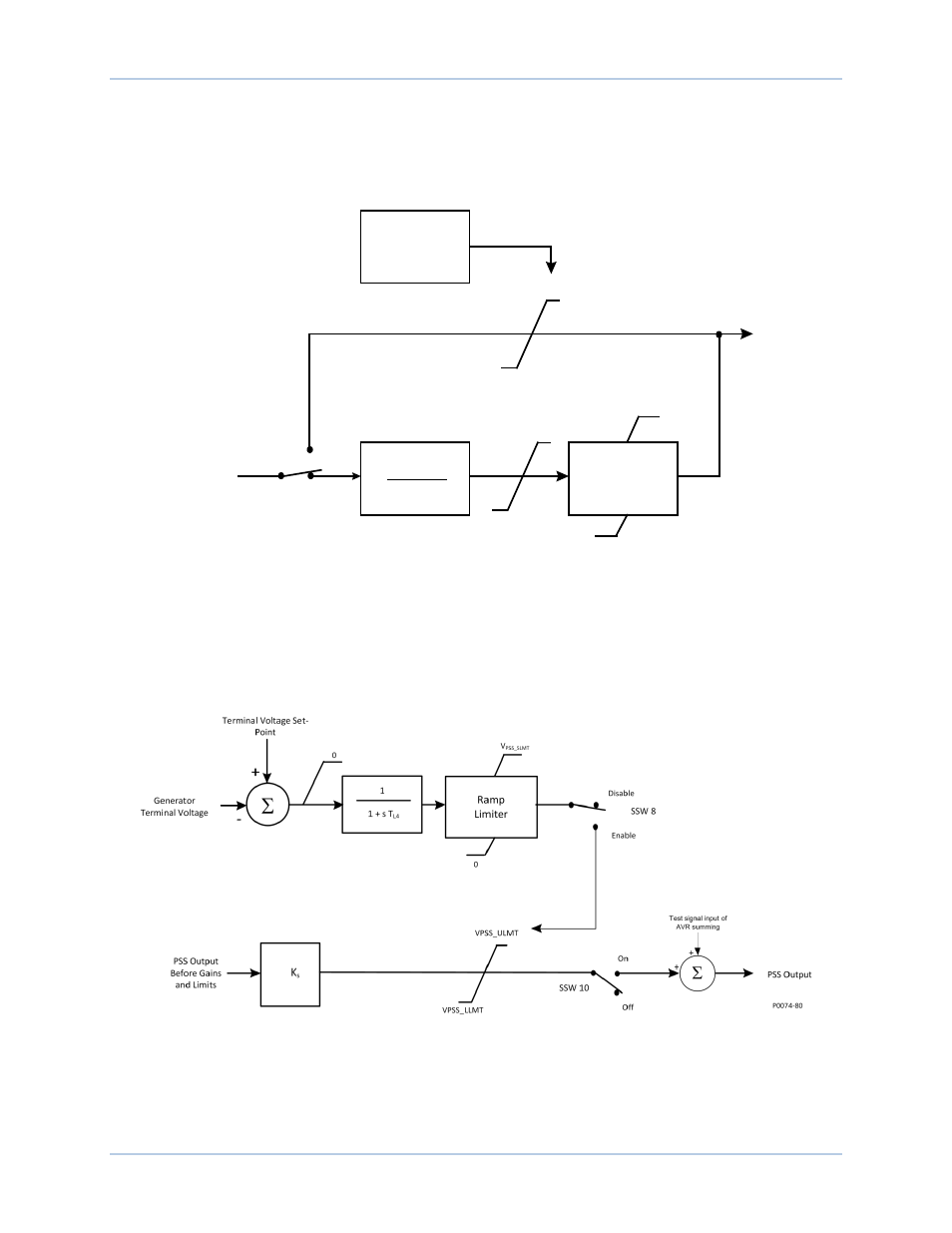

Figure 92 illustrates the washout filter and logic limiter.
Figure 92. Washout Filter and Logic Limiter
Output Stage
Prior to connecting the stabilizer output signal to the voltage regulator input, adjustable gain MM and upper NN
and lower OO limits are applied. The stabilizer output is connected to the voltage regulator input when the
software switch SSW 10 PP setting is On. Processing of the stabilizer output signal is illustrated in Figure
93.
Figure 93. Output Stage
Terminal Voltage Limiter
Since the PSS operates by modulating the excitation, it may counteract the voltage regulator’s attempts to
maintain terminal voltage within a tolerance band. To avoid creating an overvoltage condition, the PSS
has a terminal voltage limiter (shown in Figure 92) that reduces the upper output limit to zero when the
SSW 9
Logic Limiter
V
lmt_lo
V
lmt_hi
s T
w5
1 + s T
w5
V
PSS_ULMT
V
PSS_LLMT
V
PSS_ULMT
V
PSS_LLMT
Phase Lead
Block
V
ST
Terminal
Voltage Limiter
P0026-22
12-13-04
Disable
Enable
