9440500990 Rev D 69
DECS-250N Metering
Metering
The DECS-250N provides comprehensive metering of internal and system conditions. These capabilities
include extensive parameter metering, status indication, reporting, and real-time metering analysis.
Metering Explorer
DECS-250N metering is accessed through the metering explorer menu on the front panel HMI or the
BESTCOMSPlus
® metering explorer.
HMI
On the front panel HMI, the metering explorer is accessed through the Metering branch of the HMI menu.
BESTCOMSPlus ®
In BESTCOMSPlus, the metering explorer is located in the upper left portion of the application window.
Metering Screen Docking
A docking feature within the metering explorer allows arrangement and docking of multiple metering
screens. Clicking and dragging a metering screen tab displays a blue, transparent square, several arrow
boxes, and a tab box. These docking elements are illustrated in Figure 57.

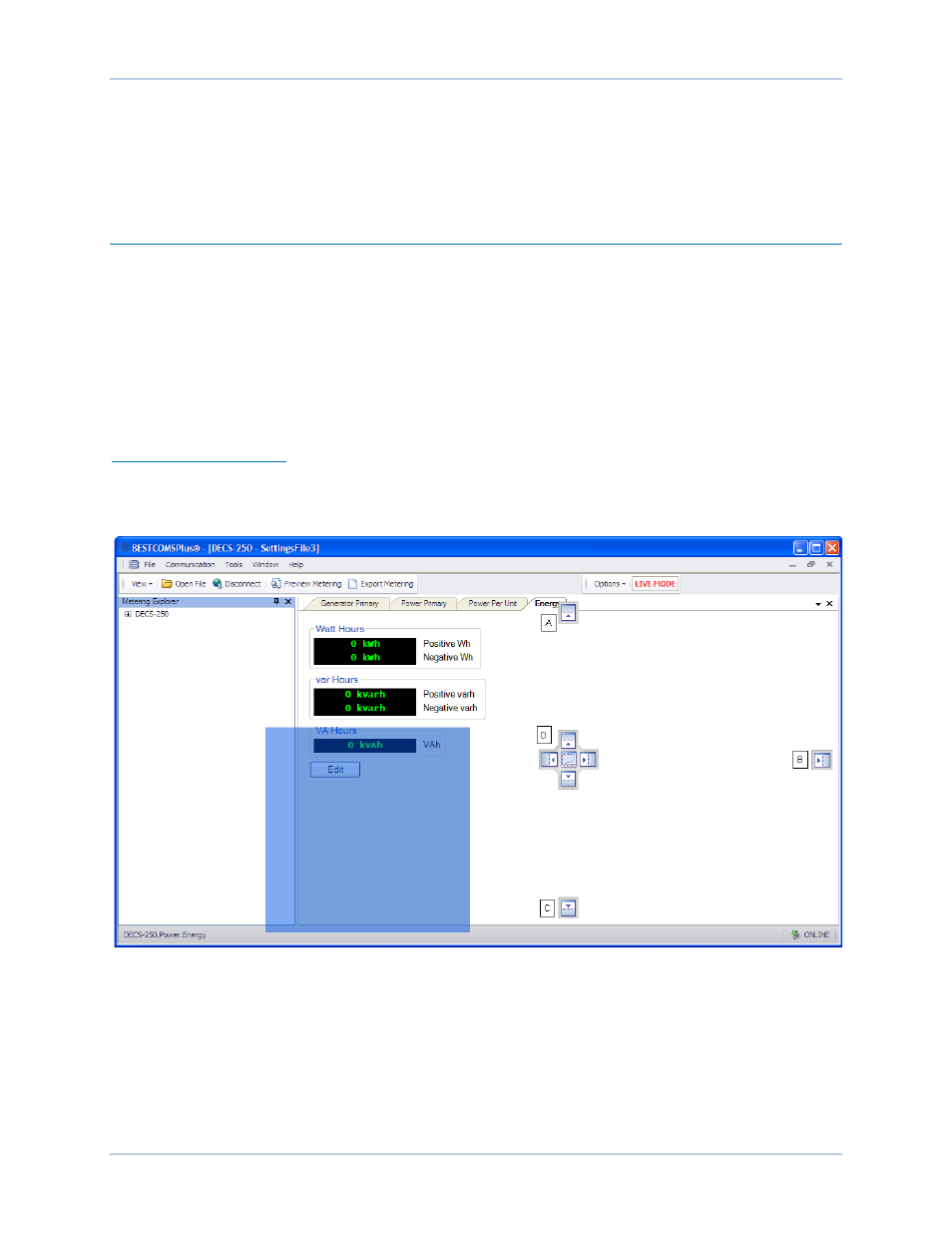

Figure 57. Metering Screen Docking Controls
Dragging the blue square to the “up” (locator A), “right” (locator B), or “down” (locator C) arrow box places
the selected metering screen across the top, along the side, or at the bottom of the window. Once placed,
the screen’s thumbtack icon can be clicked to dock the screen on the corresponding top, right, or lower
bar. A docked screen is viewed by hovering the mouse pointer over the docked screen.
Dragging the blue square to one of the four arrow boxes (locator D) places the screen inside the selected
window according to the arrow box selected. A metering screen can be placed as a tab inside the
selected window by dropping the screen on the tab box at the center of the four arrow boxes.
