DECS-250N BESTlogic
™Plus
Sending a Logic Scheme to the DECS-250N
To send settings to the DECS-250N, the DECS-250N must be connected to a computer through a
communications port. Once the necessary connections are made, settings can be uploaded to the
DECS-250N by selecting Upload Settings and Logic on the Communication pull-down menu.
Caution
Always remove the DECS-250N from service prior to changing or
modifying the active logic scheme. Attempting to modify a logic
scheme while the DECS-250N is in service could generate
unexpected or unwanted outputs.
Modifying a logic scheme in BESTCOMSPlus does not automatically
make that scheme active in the DECS-250N. The modified scheme
must be uploaded into the DECS-250N. See the paragraphs on
Sending and Retrieving Logic Schemes above.
Default Logic Schemes
The default logic scheme for PSS-disabled systems is shown in Figure 125 through Figure 127 and the
default logic scheme for PSS-enabled systems is shown in Figure 128 through Figure 131.

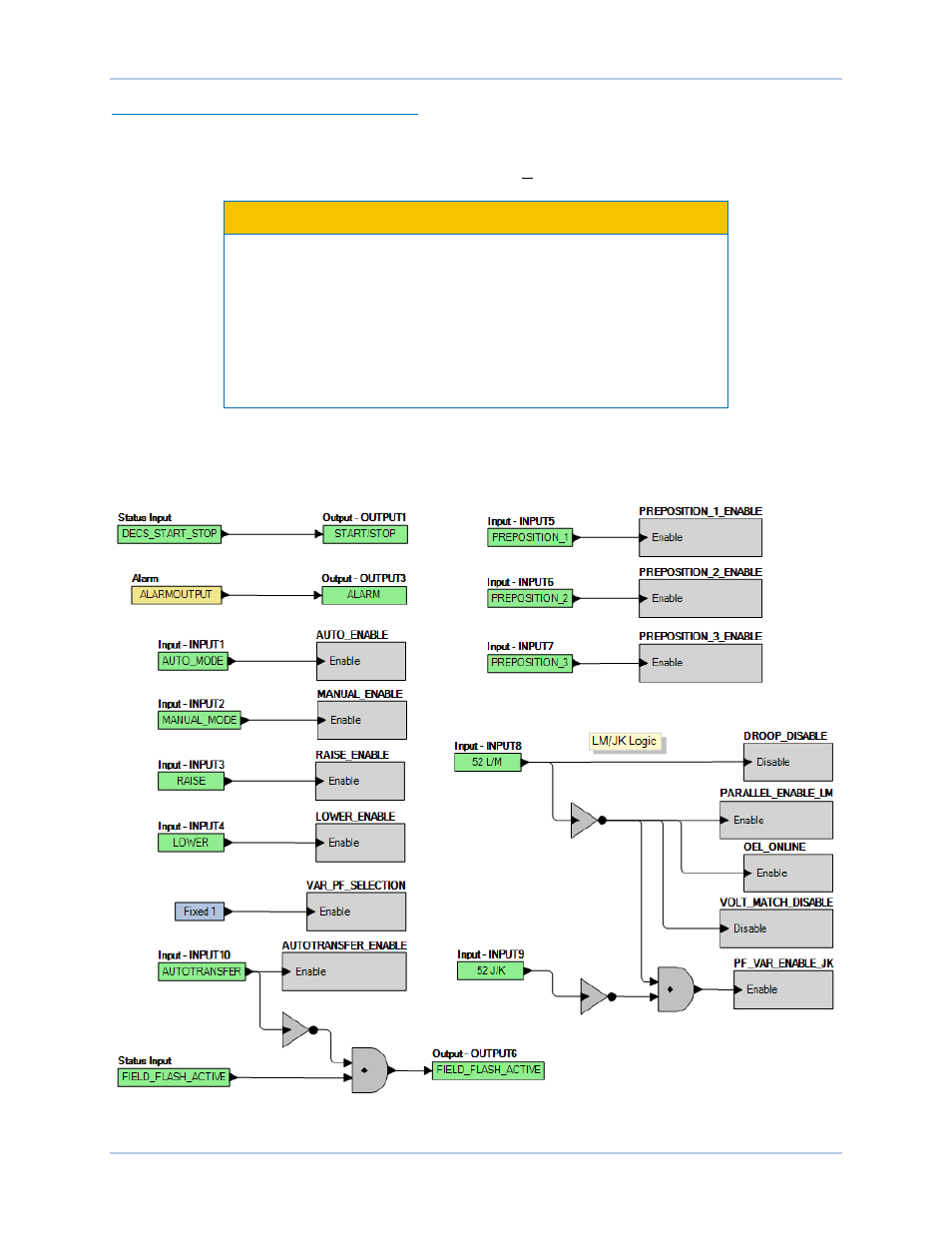

Figure 125. PSS-Disabled Default Logic – Logic Page 1 Tab
