9440500990 Rev D

19

DECS-250N

Synchronizer

K

Angle Compensation (°): Adjustable from 0.0 to 359.9° in 0.1° increments.

L

Sync Fail Activation Delay: Adjustable from 0.1 to 600 s in 0.1 s increments.

Voltage Matching

BESTCOMSPlus Navigation Path: Settings Explorer, Synchronizer/Voltage Matching, Voltage Matching

HMI Navigation Path: Settings, Sync/Voltage Matching, Voltage Matching

When enabled

A

, voltage matching is active in AVR control mode and automatically adjusts the AVR mode

setpoint to match the sensed bus voltage. Voltage matching is based on two parameters: band and
matching level.

The voltage matching band

B

defines the window in which the generator voltage must be for voltage

matching to occur.

The generator to bus PT matching level

C

defines the percentage of the sensed bus voltage to which the

generator sensed voltage will be adjusted.

Voltage matching settings are illustrated in Figure 11.

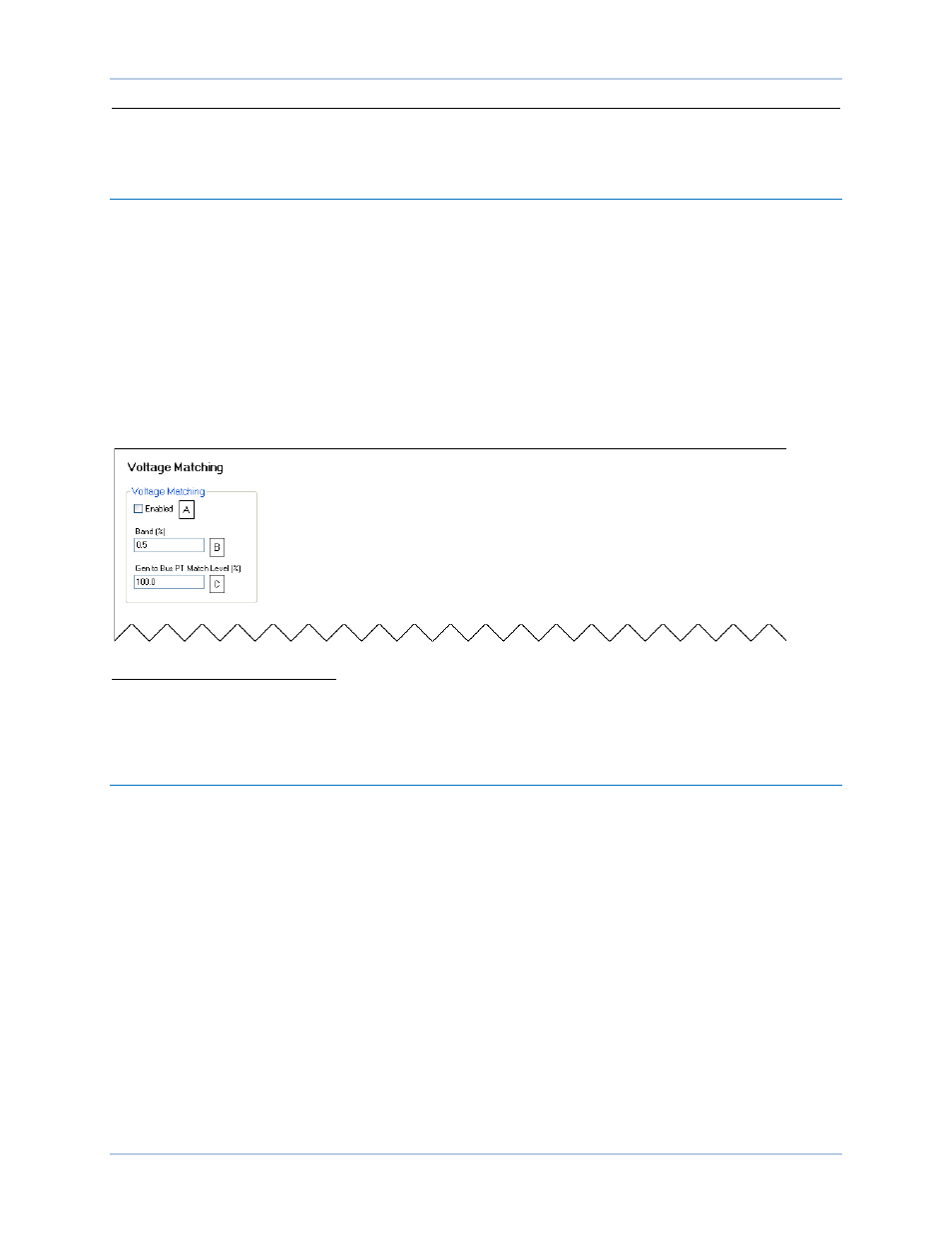

Figure 11. Voltage Matching Settings

A

Voltage Matching: Select Enabled to enable function.

B

Band: Adjustable from 0 to 20% in 0.1% increments.

C

Gen to Bus PT Match Level: Adjustable from 0 to 700% in 0.1% increments.

Breaker Hardware Configuration

BESTCOMSPlus Navigation Path: Settings Explorer, Synchronizer/Voltage Matching, Breaker
Hardware
HMI Navigation Path: Settings, Sync/Voltage Matching, Breaker Hardware

The DECS-250N can control and monitor a generator breaker. Breaker hardware settings are illustrated
in Figure 12.

Breaker Failure

When a close command is issued to the breaker, the DECS-250N monitors the breaker status and
annunciates a breaker failure if the breaker does not close within the time defined by the breaker close
wait delay

A

. Typically, the wait delay is set to be longer than the actual breaker closing time.

Generator Breaker

The DECS-250N must be configured

B

with the generator breaker characteristics before the breaker can

be controlled by the DECS-250N. Breakers controlled by pulse or continuous control inputs

C

are

supported. During anticipatory-mode synchronization, if the generator breaker is serving to tie the
generator to the bus, the uses the breaker closing time

D

to calculate the optimum time to close the

breaker. For a pulse-controlled generator breaker, the breaker open

E

and close

F

pulse times are used by
