Carrier Access Network Device Axxius 800 - Manual (Page 93)

Axxius 800 - Release 2.2 4-21
Configuration
Setup of DS0 Management Channel

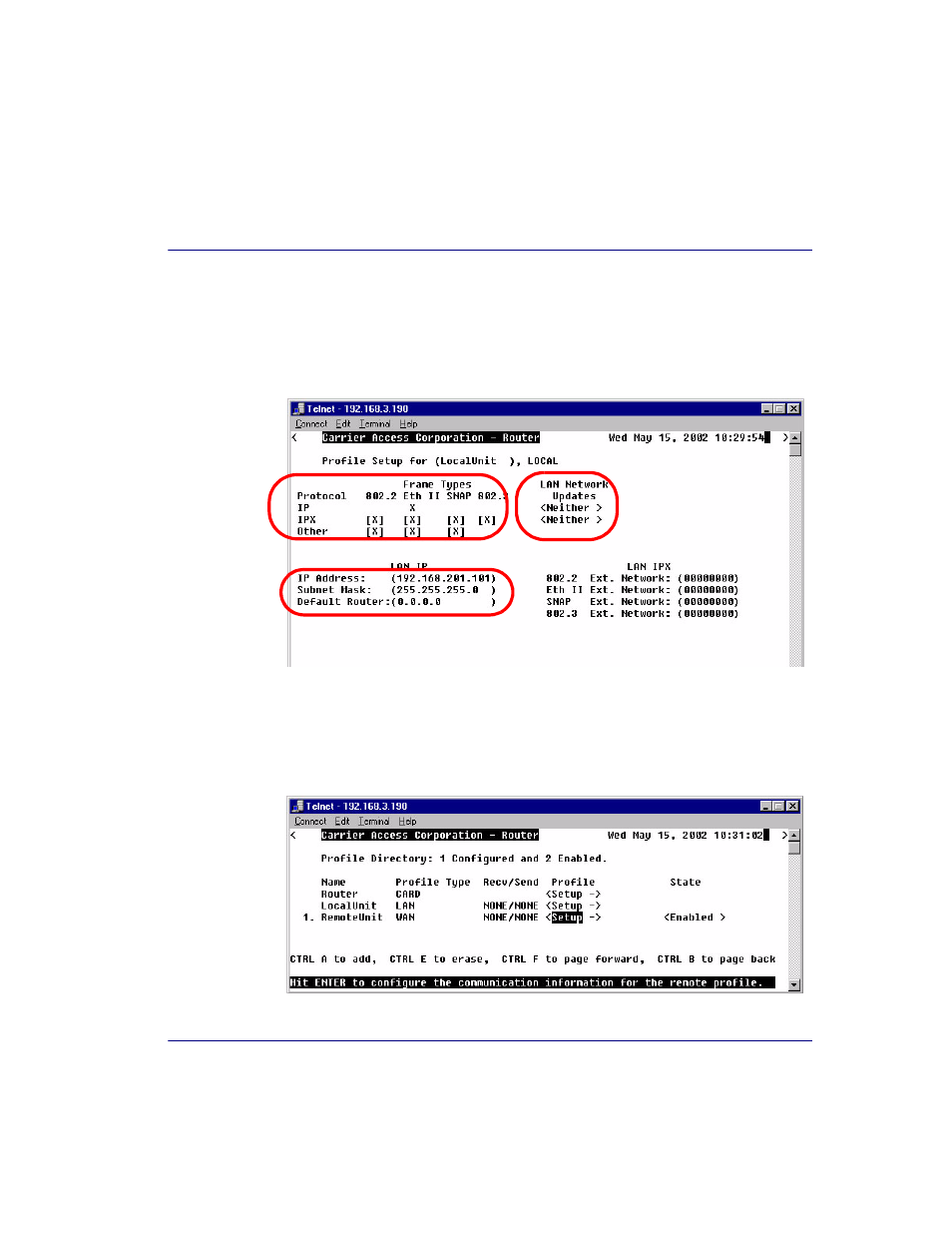

3. Set the following on this screen:
Select the IP Protocol Eth II (X), all others should not be selected.
Set the LAN Networks Updates for IP and IPX to < Neither >.
Set the LAN IP Address to 192.168.201.101 (Router IP Address) along
with the Subnet Mask of 255.255.255.0.
4. Select [E SC ] to exit menu and to save changes.
Create a Remote Axxius Profile for all Remotes
1. Select RemoteUnit WAN from the Profile Directory main
window and select [E NTER ] .
