Control Panel Interfaces

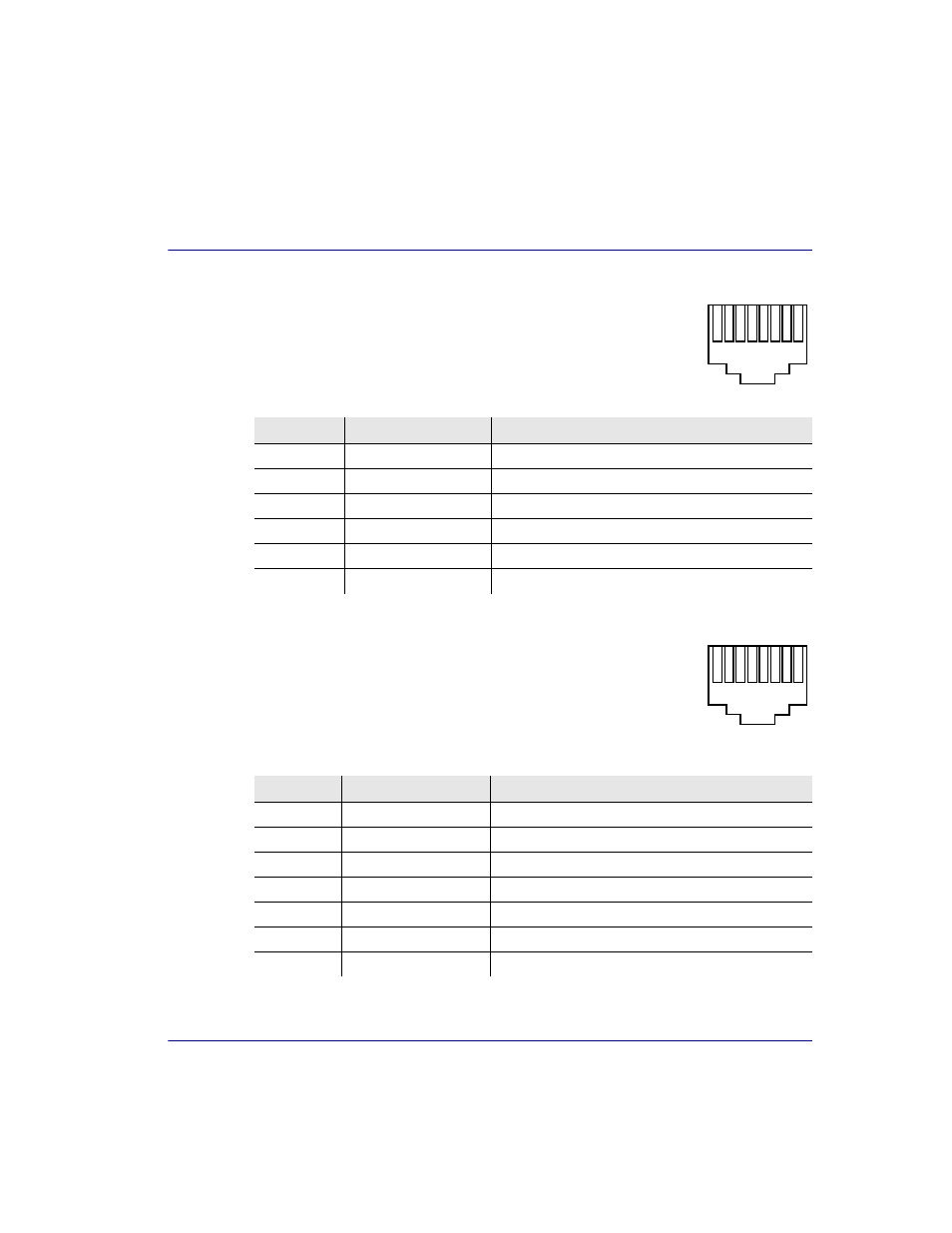

DS1 Connection Ports
The DS1 connection ports are each equipped with a standard
RJ-28C (female) on the Axxius 800 unit.
The pinouts are as follows:
DS1 (RJ-48C)
10/100Base-T Ethernet
The 10/100Base-T Ethernet (female) port to connect to a remote
management tool such as Telnet or an SNMP-based Network
Management System.
The pinouts are as follows:
Ethernet (RJ-45)
Pin
Name
Description
1
Receive Ring
Receive from DS1 network
2
Receive Tip
Receive from DS1 network
3 N/C
Not
connected
4
Transmit Ring
To DS1 network
5
Transmit Tip
To DS1 network
6 -8
N/C
Not connected
Pin
Name
Description
1
Receive +
Receive from network
2
Receive -
Receive from network
3
Transmit +
Transmit to network
4 N/C
Not
connected
5 N/C
Not
connected
6
Transmit -
Transmit to network
7 - 8
N/C
Not connected
1
8
1
8
