Axxius 800 - Release 2.2
3-9
Electrical Installation and Cabling
Chassis Connections

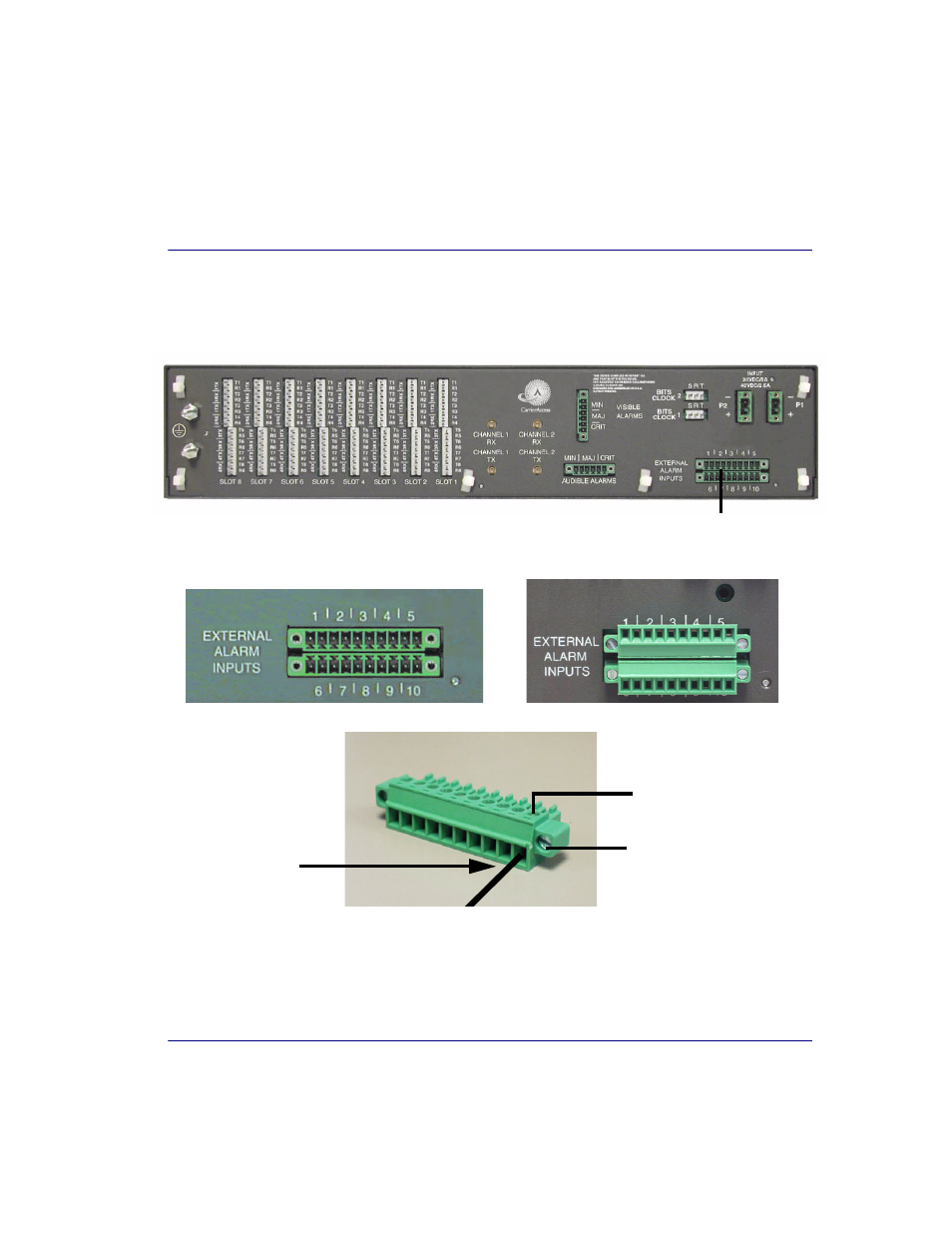

External Alarm Inputs
The external alarm input connector supports 10 alarm inputs and is composed of two
10-pin connectors (two input pairs for each).
1. Strip wire so that approximately 5/16 of bare wire is exposed.
2. Insert wire into opening and tighten screw to clamp wire.
3. Ensure that no bare wire shows after the wires are installed.
4. Plug connector in the EXTERNAL ALARMS INPUTS connector, as seen in
the graphic above and secure with set screws.
External Alarm Input
Tighten screw
to clamp wire
Set screw
Wire
back of Axxius
Connector plugged into Axxius
