Loopback Tests
DS1 Loopbacks
DS1 Payload Loop
Loops at DS1 (in framer) and reframes the T1. Have DS1 vendor check for framing/
errors.
Enable Payload Loopback
> set a:1 payload loopup
OK
View Status of Loopback
> status a:1
SLOT A:
Status for DS1 1:
Receive: Traffic
Transmit: Traffic
Loopback: PAYLOAD
Disable Payload Loopback
> set a:1 payload loopdown
OK
View Status of Loopback
> status a:1
SLOT A:
Status for DS1 1:
Receive: Traffic
Transmit: Traffic
Loopback: OFF
T1
Axxius
Local
DTE
Local
DCE
V.35
DS1
Network

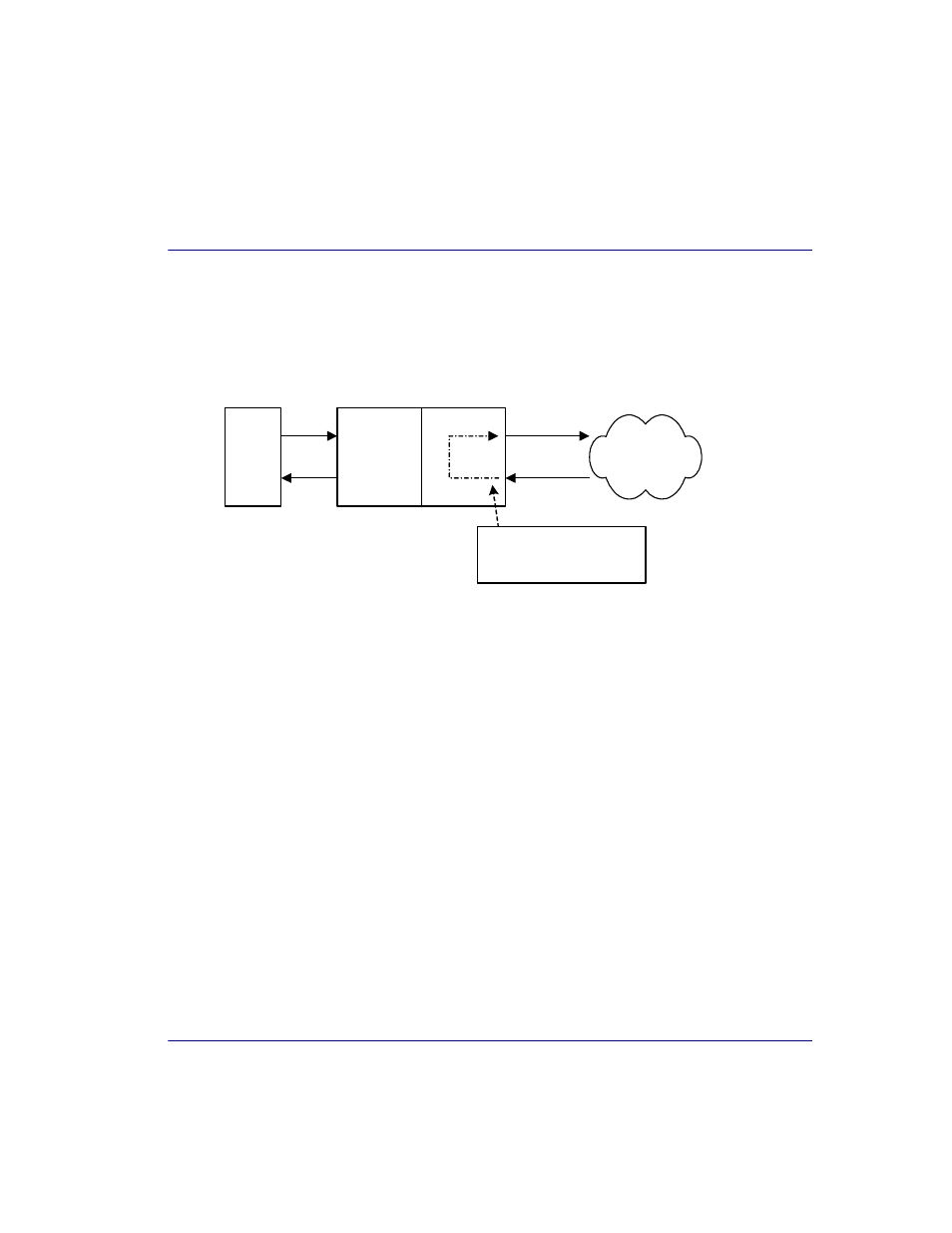

Loops DS1 as shown
Reframes the T1
