Quad T1 & Quad DS1/E1 Card
Connector Pinouts
Connector Pinouts

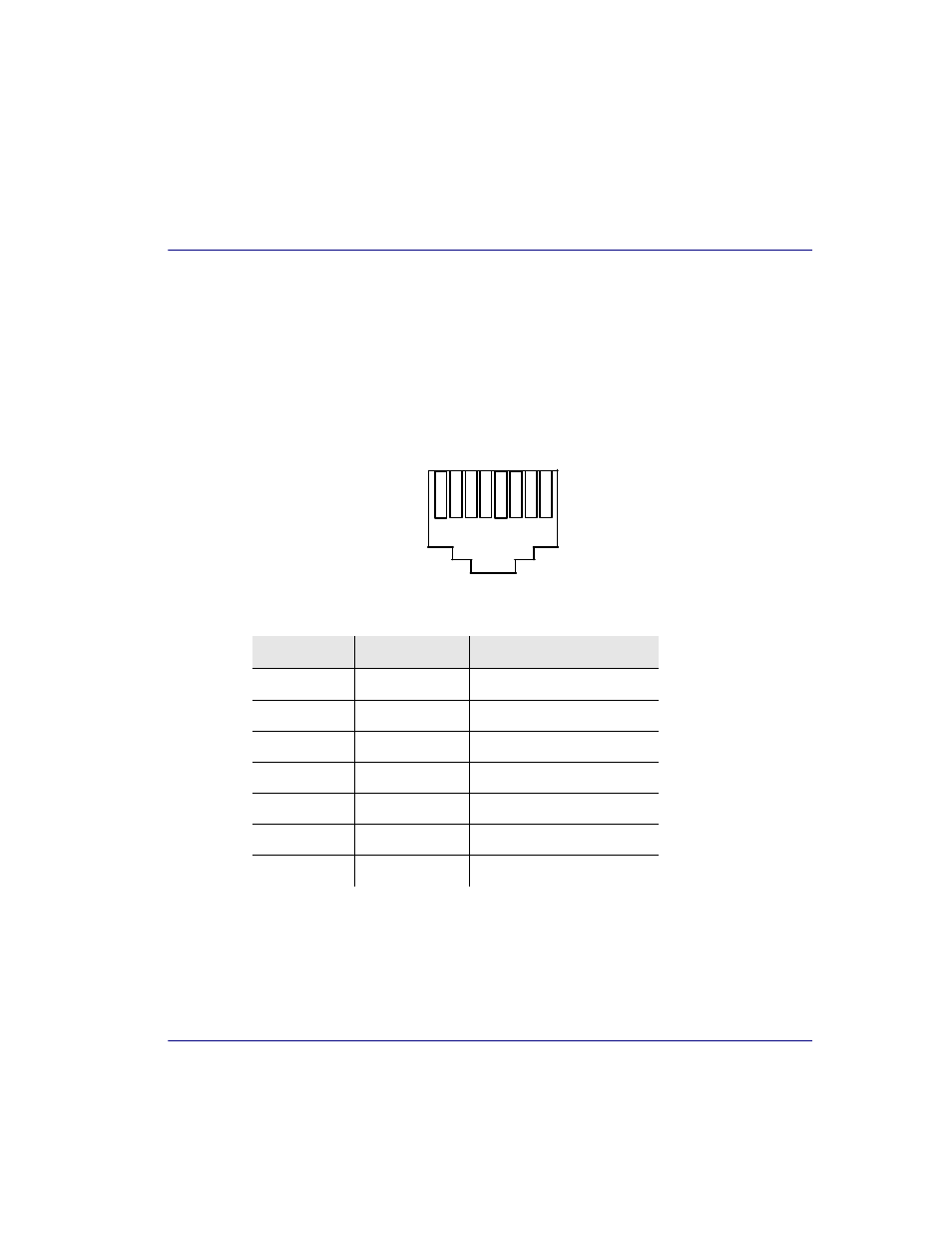

RJ-48 Connector
There are four RJ-48 (female) connectors on the front of the Quad T1 and DS1/E1
Cards.
The pinouts are as follows:
Pin Name Description
1 Receive Ring Receive from DS1 network
2 Receive Tip Receive from DS1 network
3 n/c + Not connected
4 Transmit Ring To DS1 network
5 Transmit Tip To DS1 network
6 - 7 n/c Not connected
8 Chassis Ground
1 8
