8-6 Axxius 800 - Release 2.2

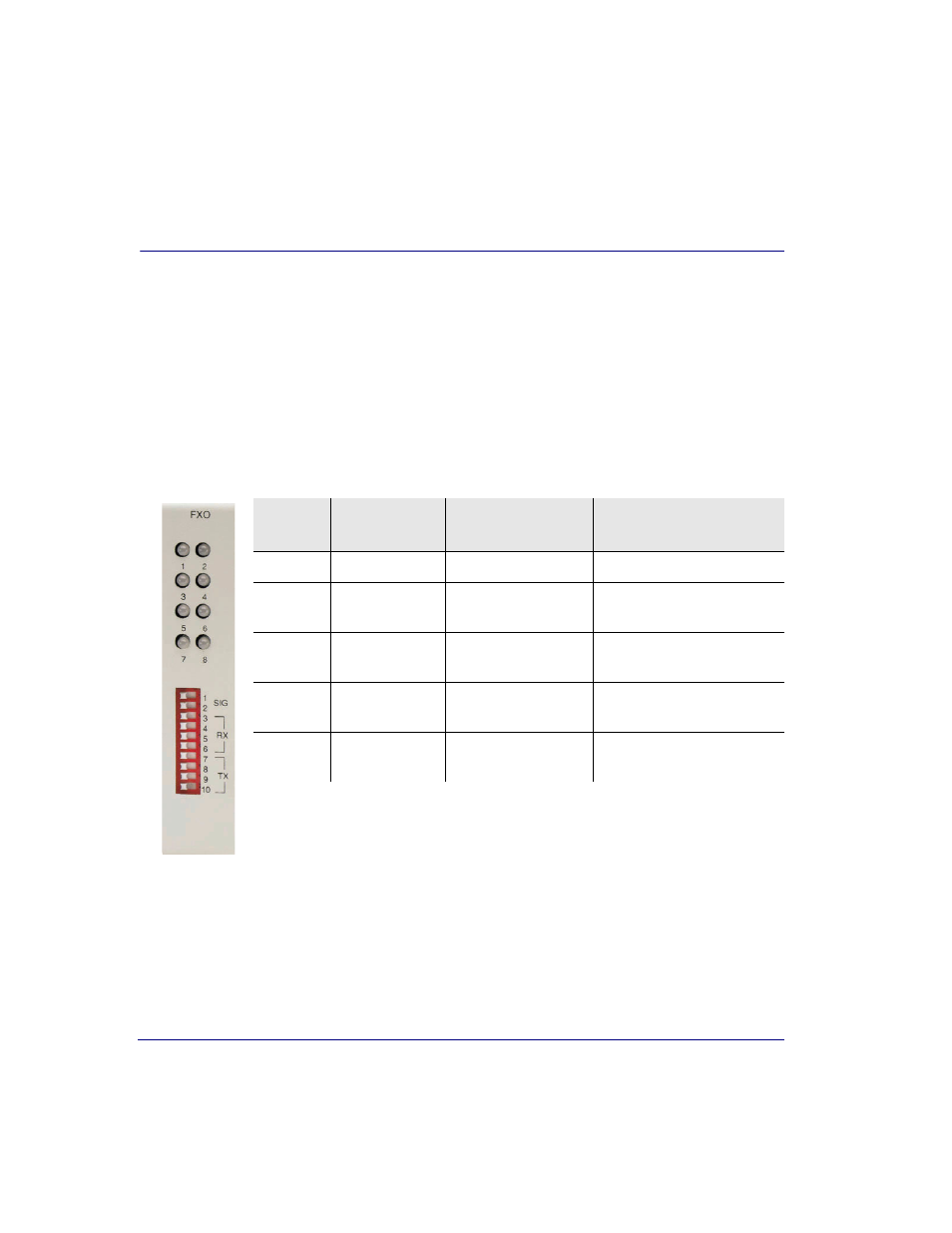

FXO Voice Card
DIP Switch Settings
DIP Switch Settings
The FXO card DIP switches are not functional on the Axxius 800 platform.
LEDs
Each FXO port on a card has its own LED, described in the table below.
State Loop Start
Meaning Ground Start
Meaning Dial Pulse Termination
Meaning
Off N/A Idle (tip open) Idle (loop open)
Green Idle Tip ground
(incoming seizure) Incoming seizure
Red N/A Ring ground
(outgoing seizure) Loop closure (outgoing
seizure)
Yellow Call in progress Call in progress Call in progress (reverse
battery)
Flashing
green Ringing Ringing N/A
